Full Motion TV Wall Mount with Extra Long Extension for 32" to 70" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 32 to 70-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 110 lb with VESA 75×75 to 400×400 mm.
Swivels 180.0°, tilts +5.0°/−15.0°, and extends 2.9 to 40.6 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount with Extra Long Extension
Features
Fits 32 to 70 inch flat screen TVs
Weight rated up to 110 lb
Swivels 180.0° (90.0° left and 90.0° right), aim the screen at any seat
Adjustable tilt +5.0° up / −15.0° down - reduce glare, improve your view

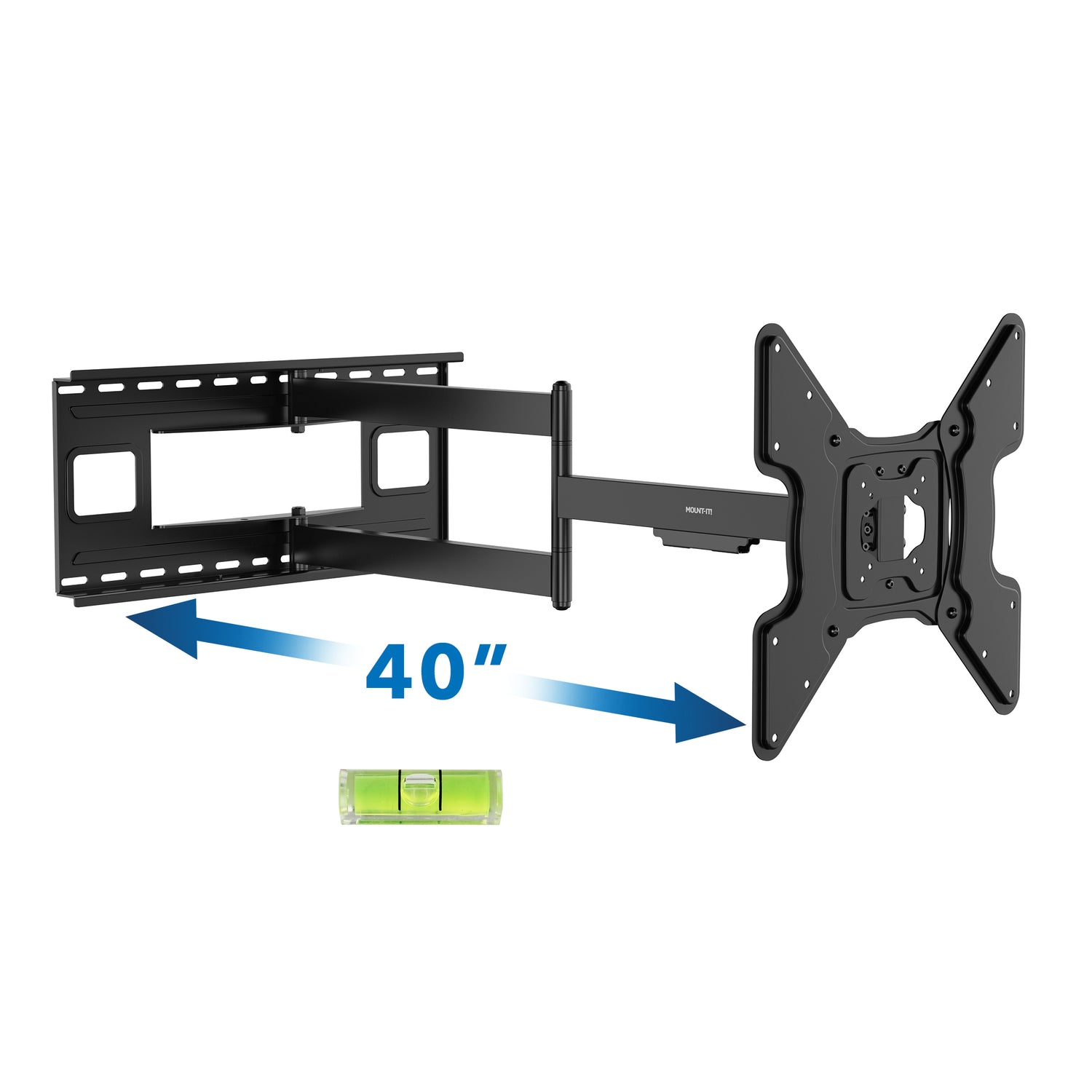

Extends 2.9 to 40.6 in from the wall for flexible positioning
VESA 75×75 to 400×400 mm - fits most flat panel TV brands

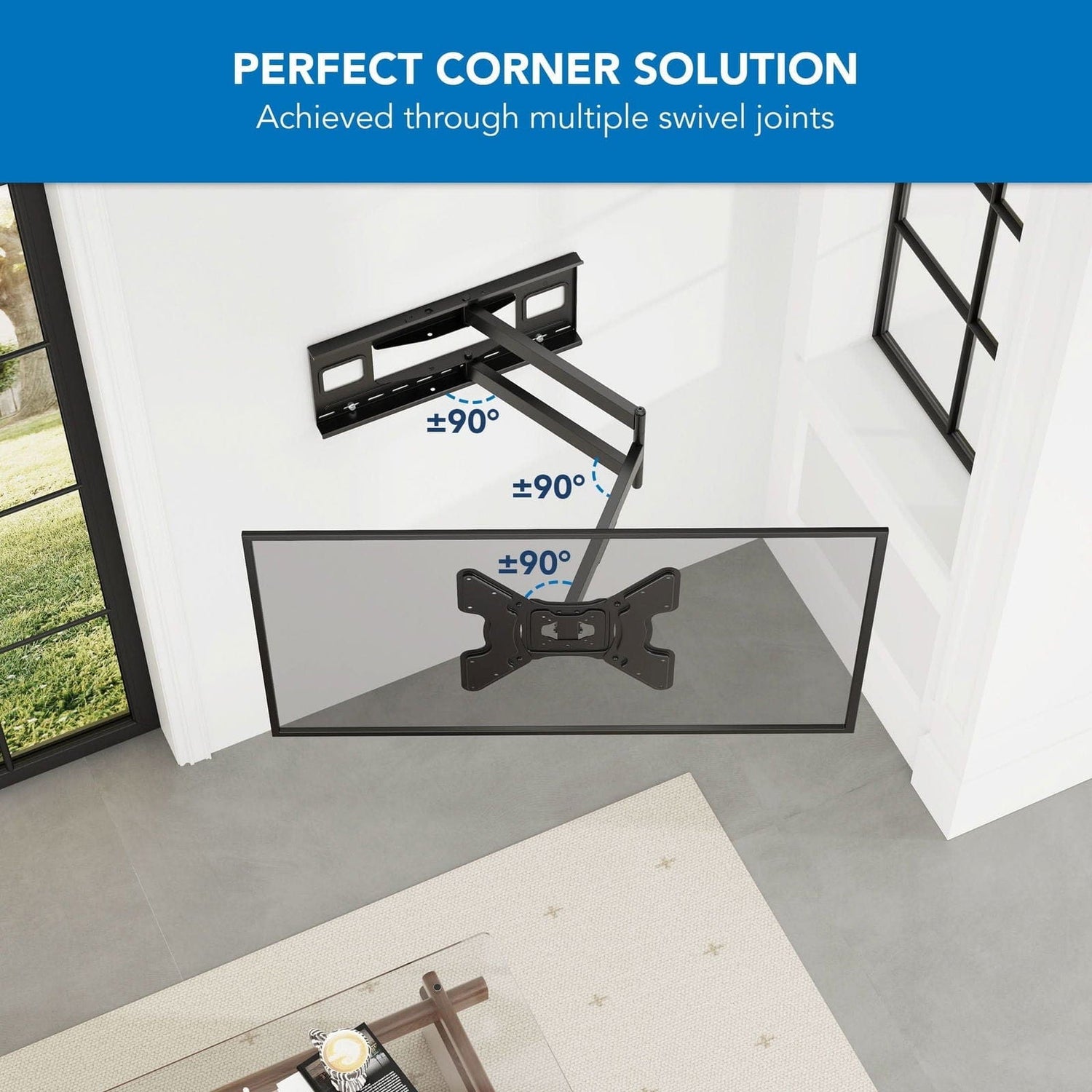

Supports corner wall installations
Overview

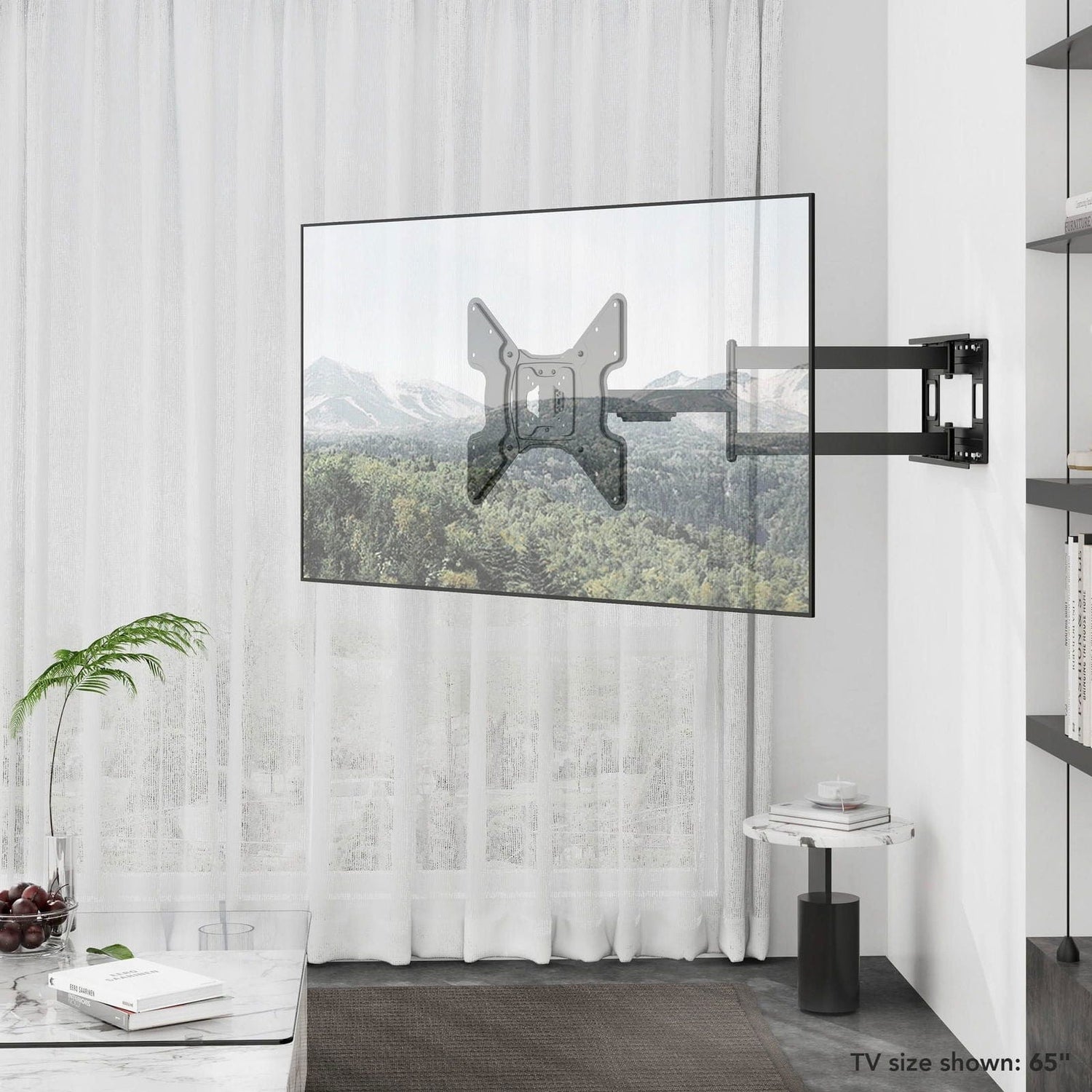

The Full Motion TV Wall Mount with Extra Long Extension is a full motion (articulating) TV wall mount compatible with 32 to 70-inch televisions and rated to hold up to 110 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.

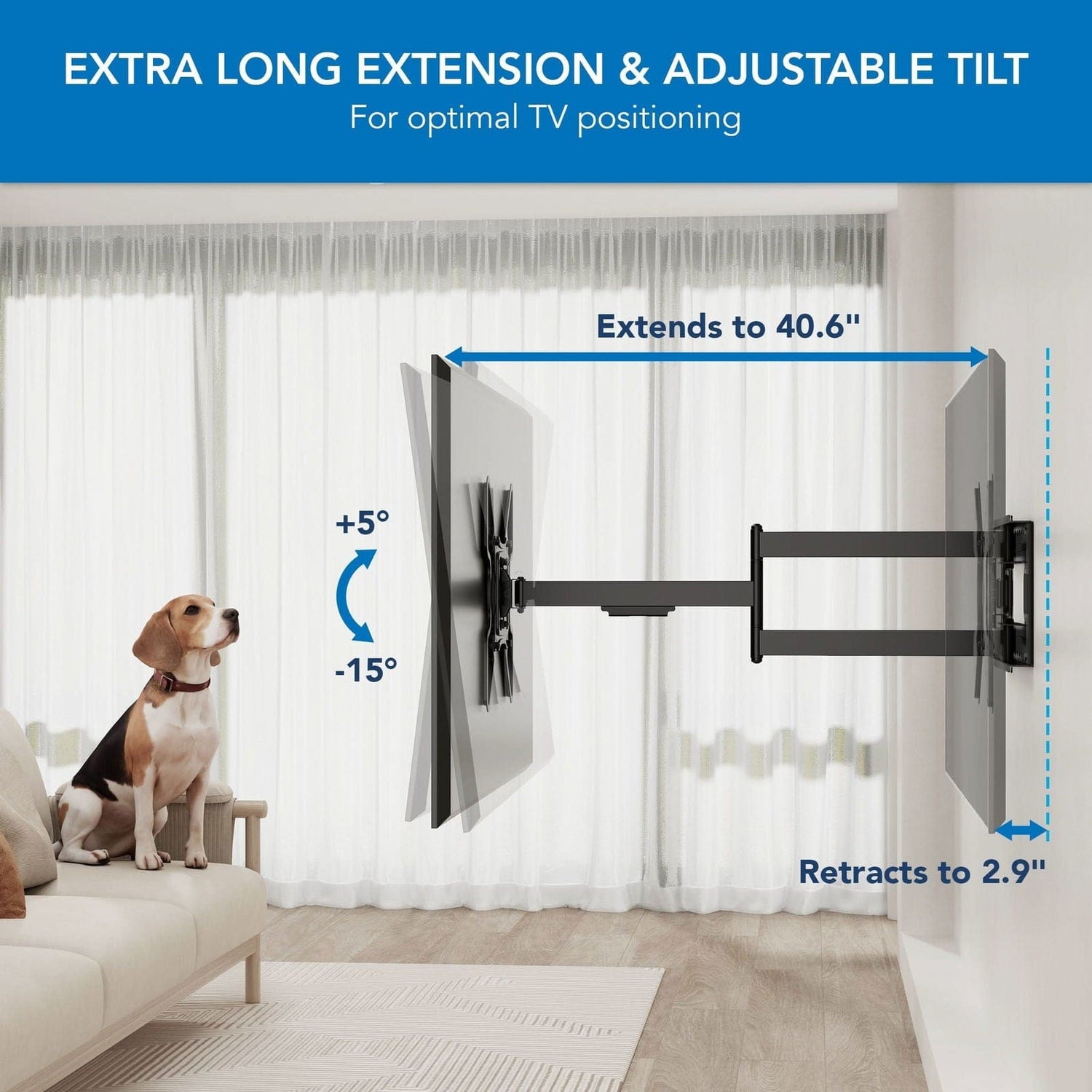

Swivels 180° (90° left and 90° right), tilt +5°/−15°, and extends 2.9 to 40.6 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.

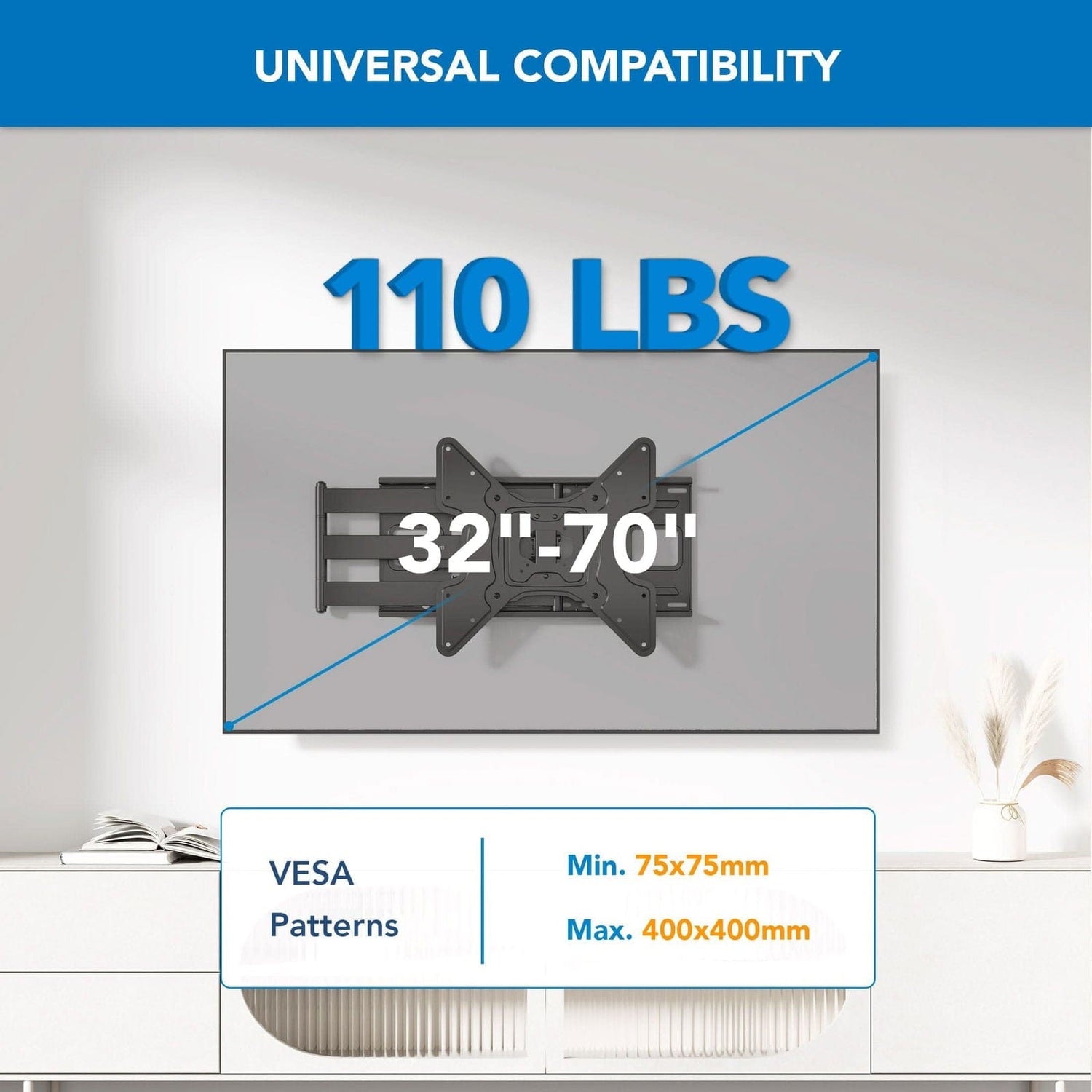

Compatible with VESA mounting patterns from 75×75 to 400×400 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for large living rooms, corner installs, or any setup where the screen needs to pull far from the wall to reach the optimal viewing angle.

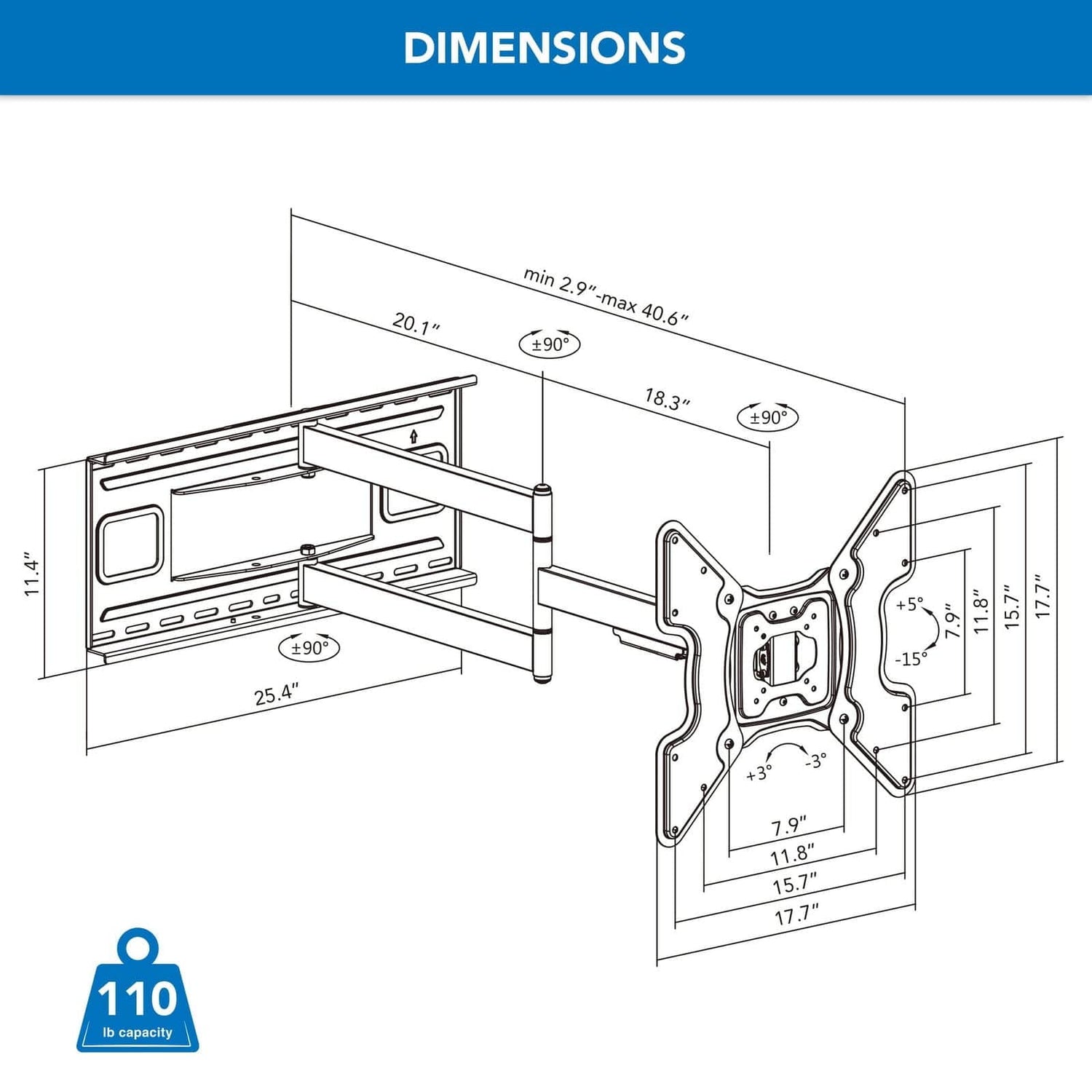

Specifications
- SKU: MI-393
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 21.08 lb
- Wall plate dimensions: 25.4×11.4 in
Holds screens
- Screen size range: 32 to 70 in
- VESA range: 75×75 to 400×400 mm
- Weight capacity: 110 lb
Movement
- Swivel: 180° (90° left and 90° right)
- Tilt:+5°and−15°
- Extension depth: 2.9 to 40.6 in
- Corner compatible: Yes

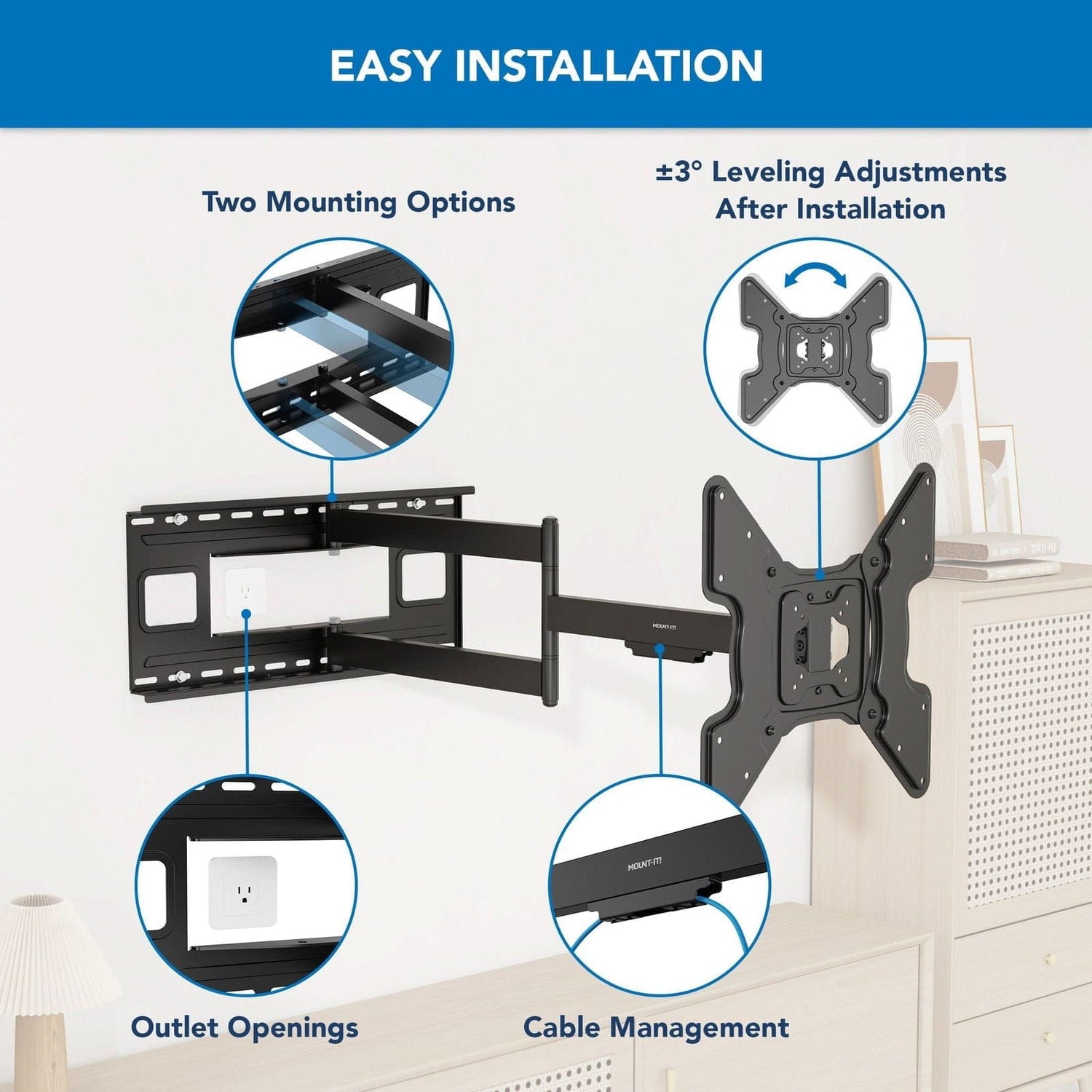

Installation
The Full Motion TV Wall Mount with Extra Long Extension is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing
Corner installations: Supported

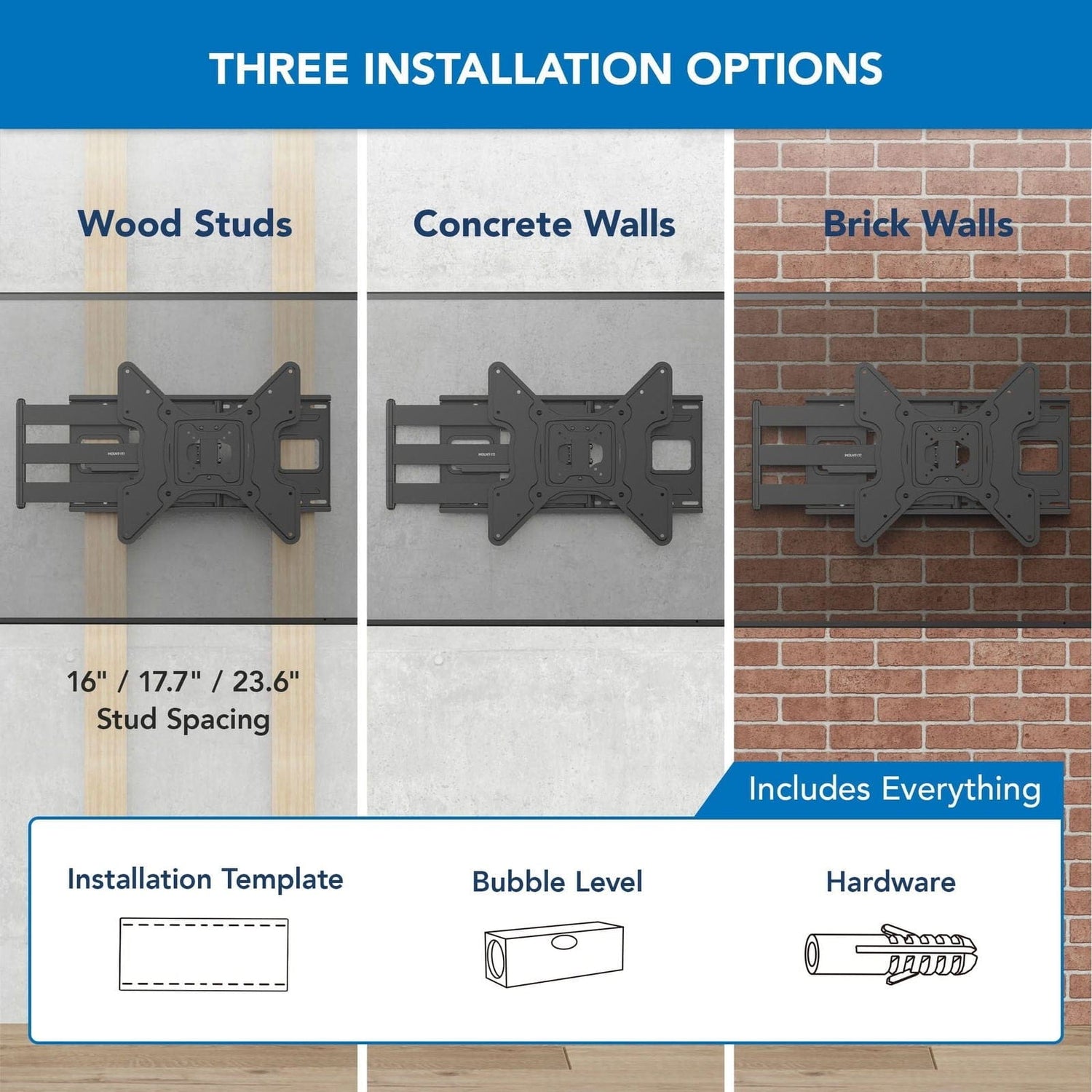

Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
Customer reviews
8 verified reviews from people who bought this product.
Photos from customers 1
-
Great product!

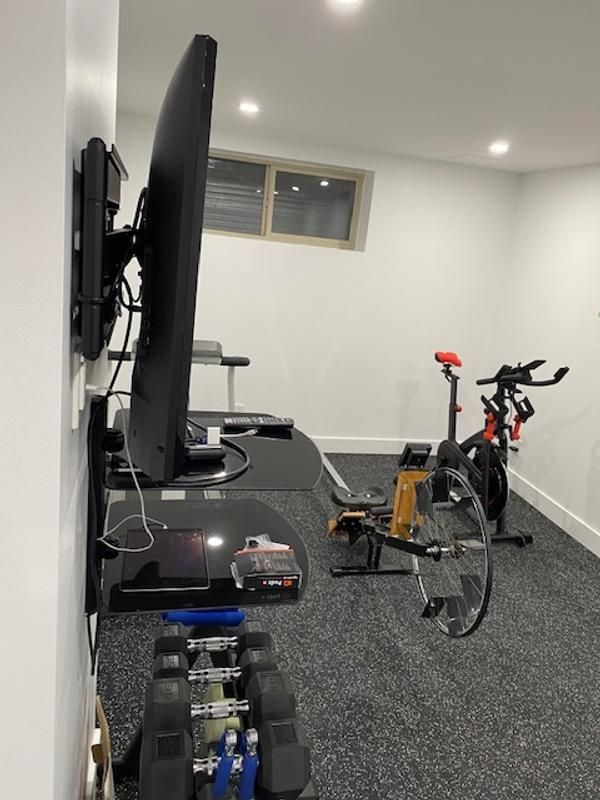

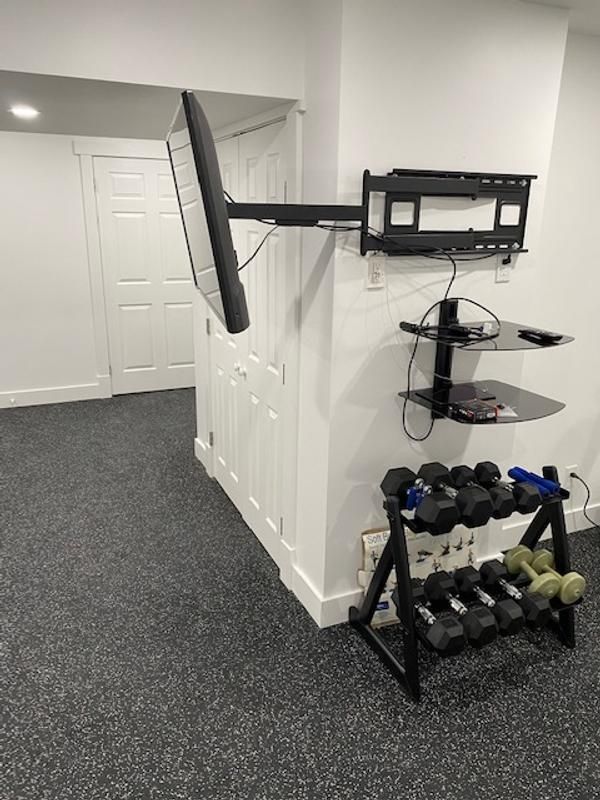

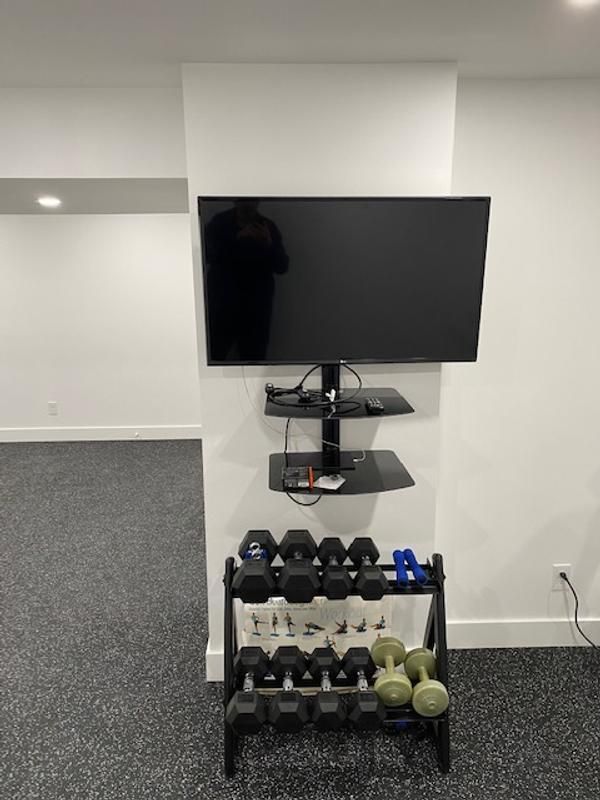

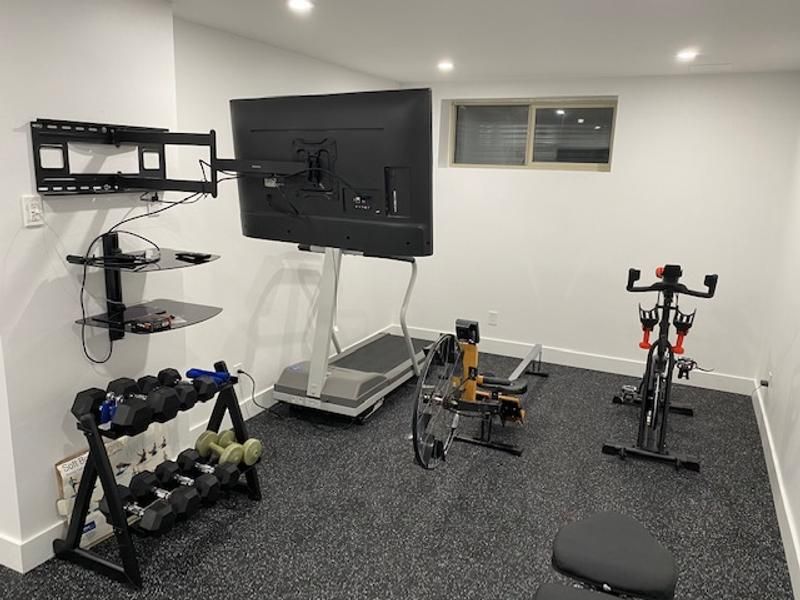

Living in Calgary Canada I needed a 40 extension. Ordered and had it shipped to Sweetgrass Montana (Mount-It does not ship to Canada) Just installed it in the basement Home-Gym and LOVING it! Installation was straight forward every thing needed to install came with it. It is VERY sturdy and turn's all the ways I had it figured out. We can watch when running rowing or biking or turn it all the other way for Yoga. Just to get it in Canada was an extra CAD$ 175.- for freight brokerage fees and off course the local sales tax. No Free Trade here. I
