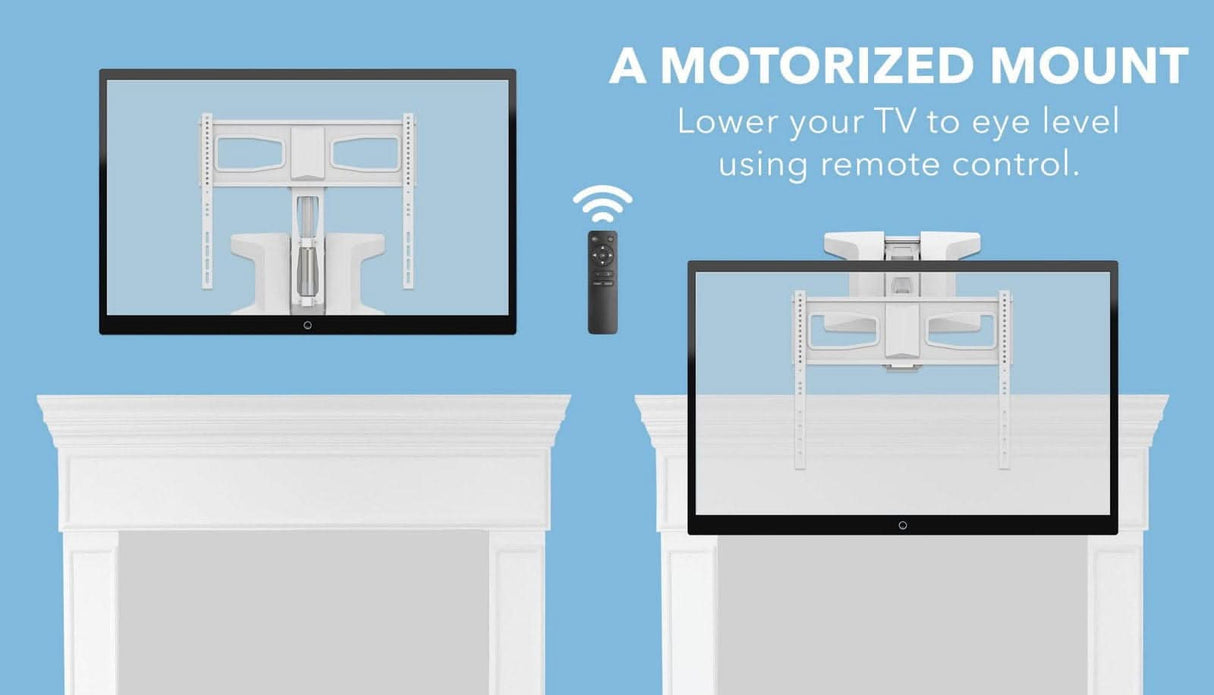

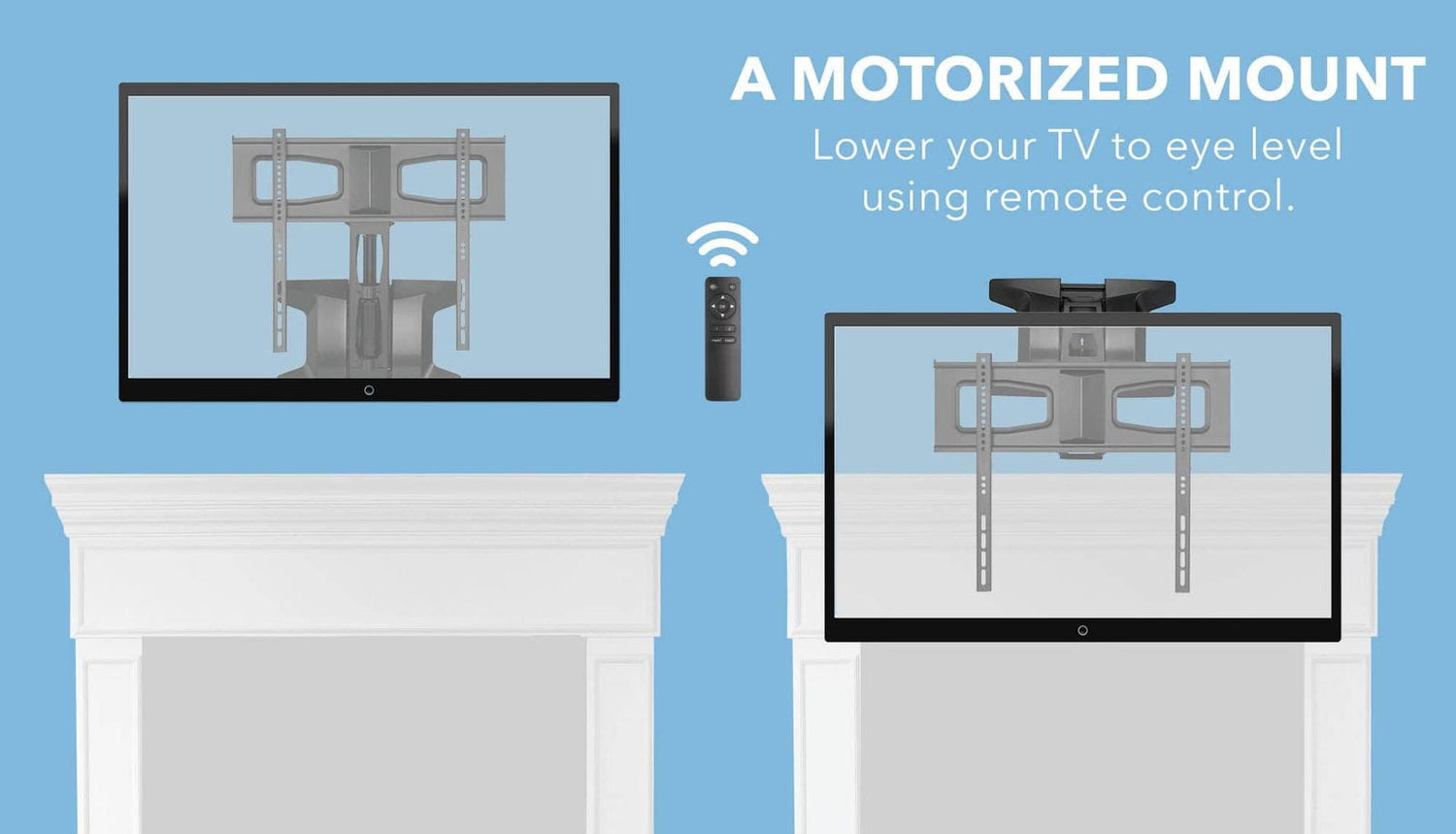

Motorized Fireplace TV Wall Mount for 40" to 70" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion fireplace TV wall mount for 40 to 70-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 77 lb with VESA 200×100 to 600×400 mm.
Swivels 50.0°, tilts −3.0°, and extends 6.0 to 19.1 inches. Aim the screen at any seat and reach the right depth.

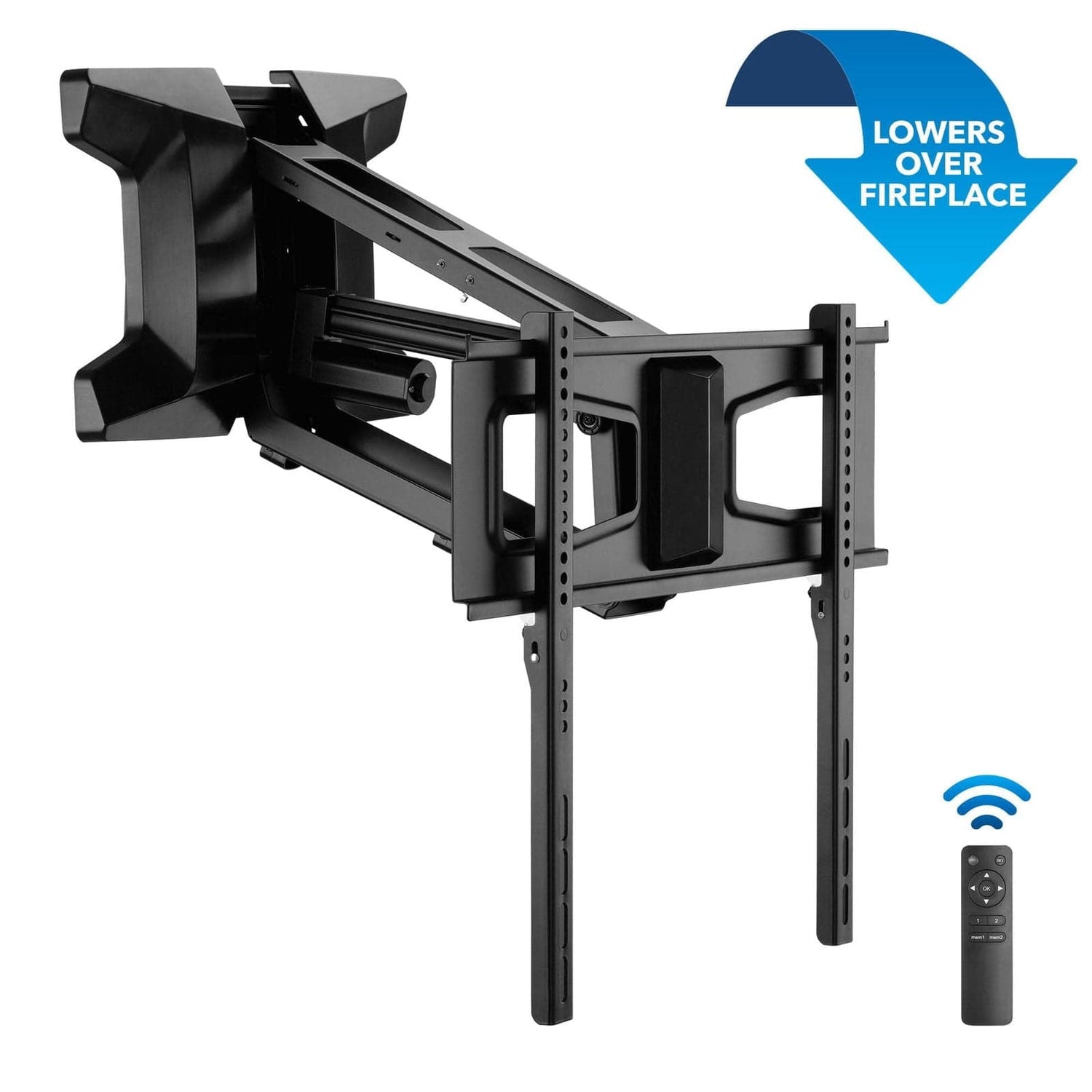

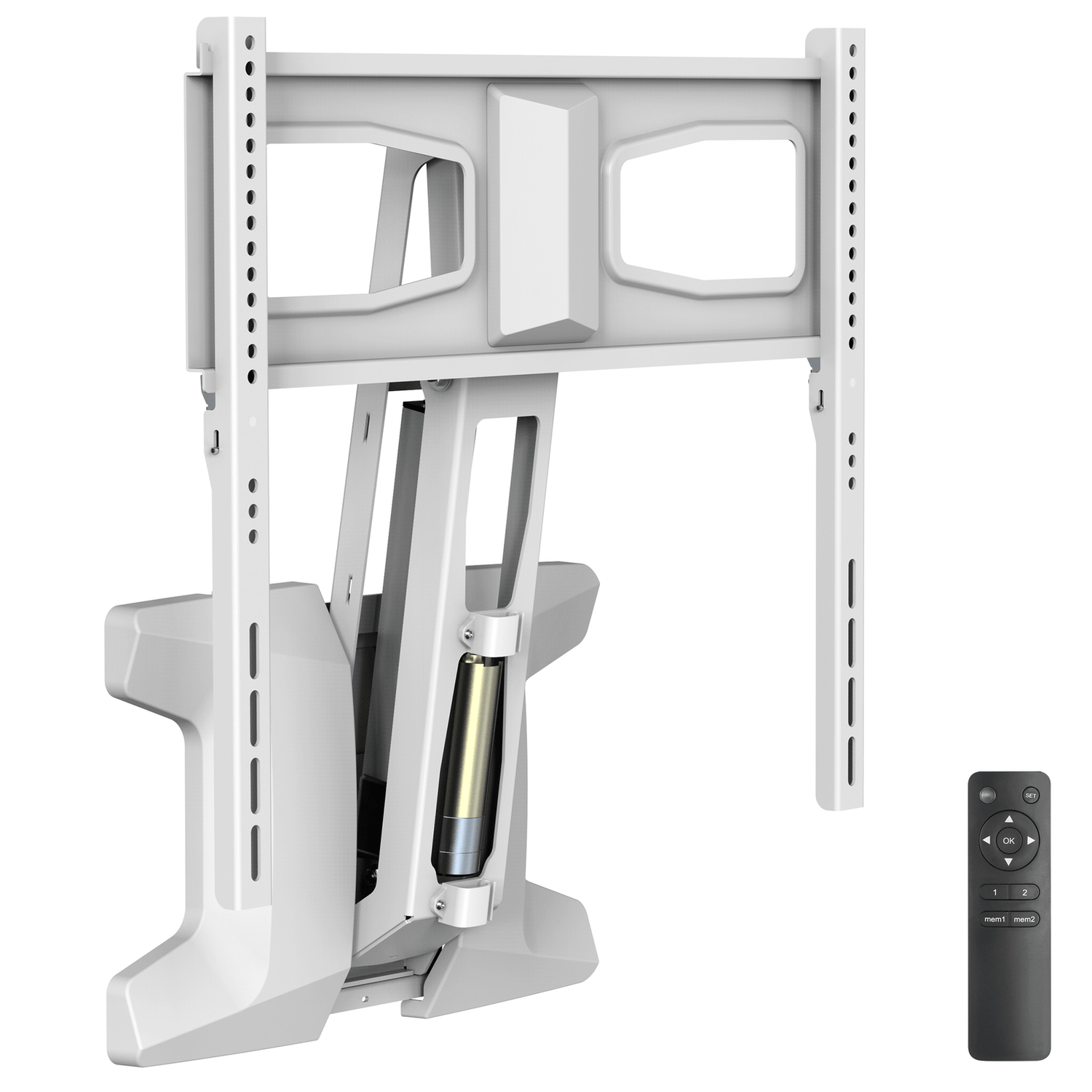

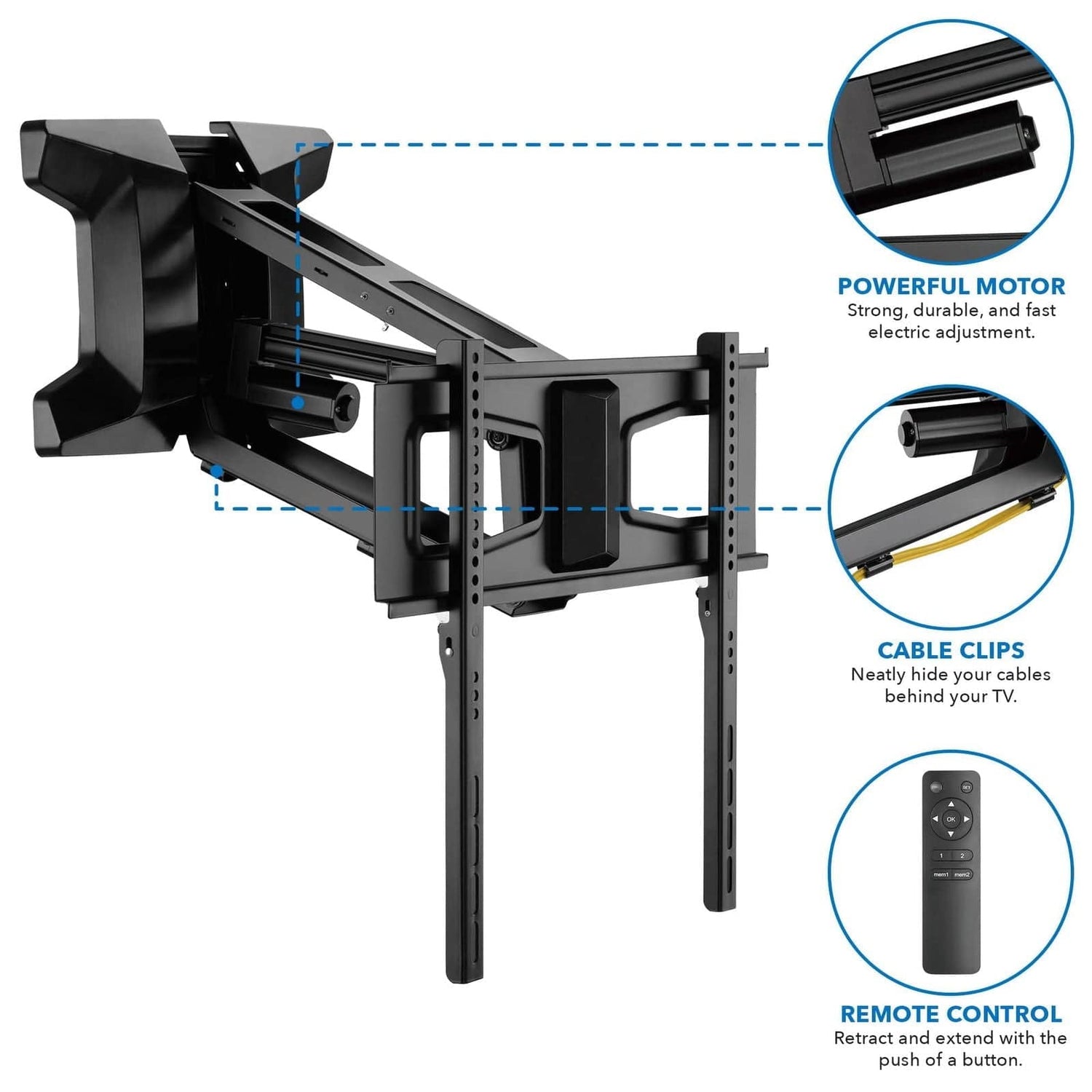

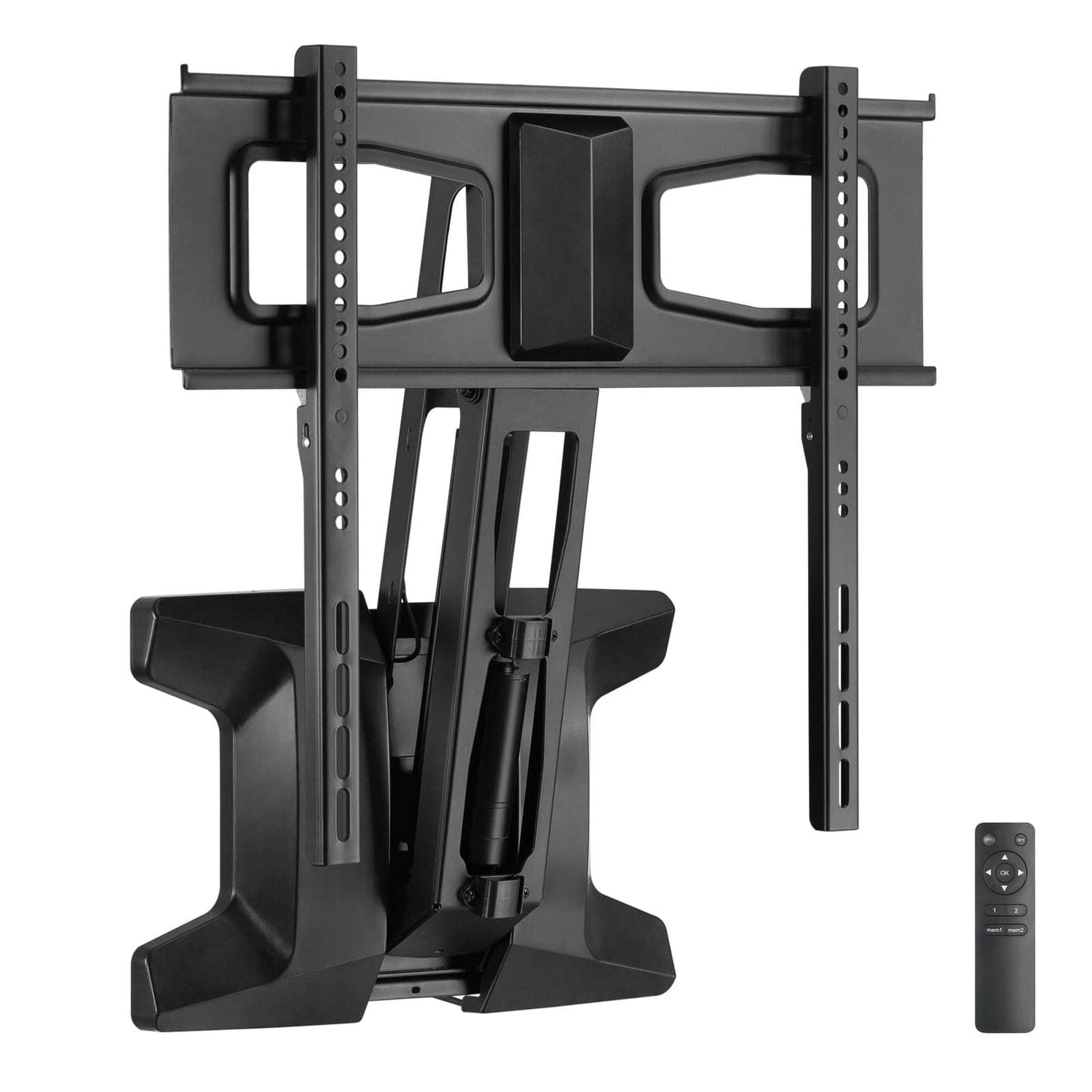

Motorized Fireplace TV Wall Mount
Features
Fits 40 to 70 inch flat screen TVs
Weight rated up to 77 lb
Swivels 50.0° (25.0° left and 25.0° right), aim the screen at any seat
Adjustable tilt down to −3.0° - reduce glare from above

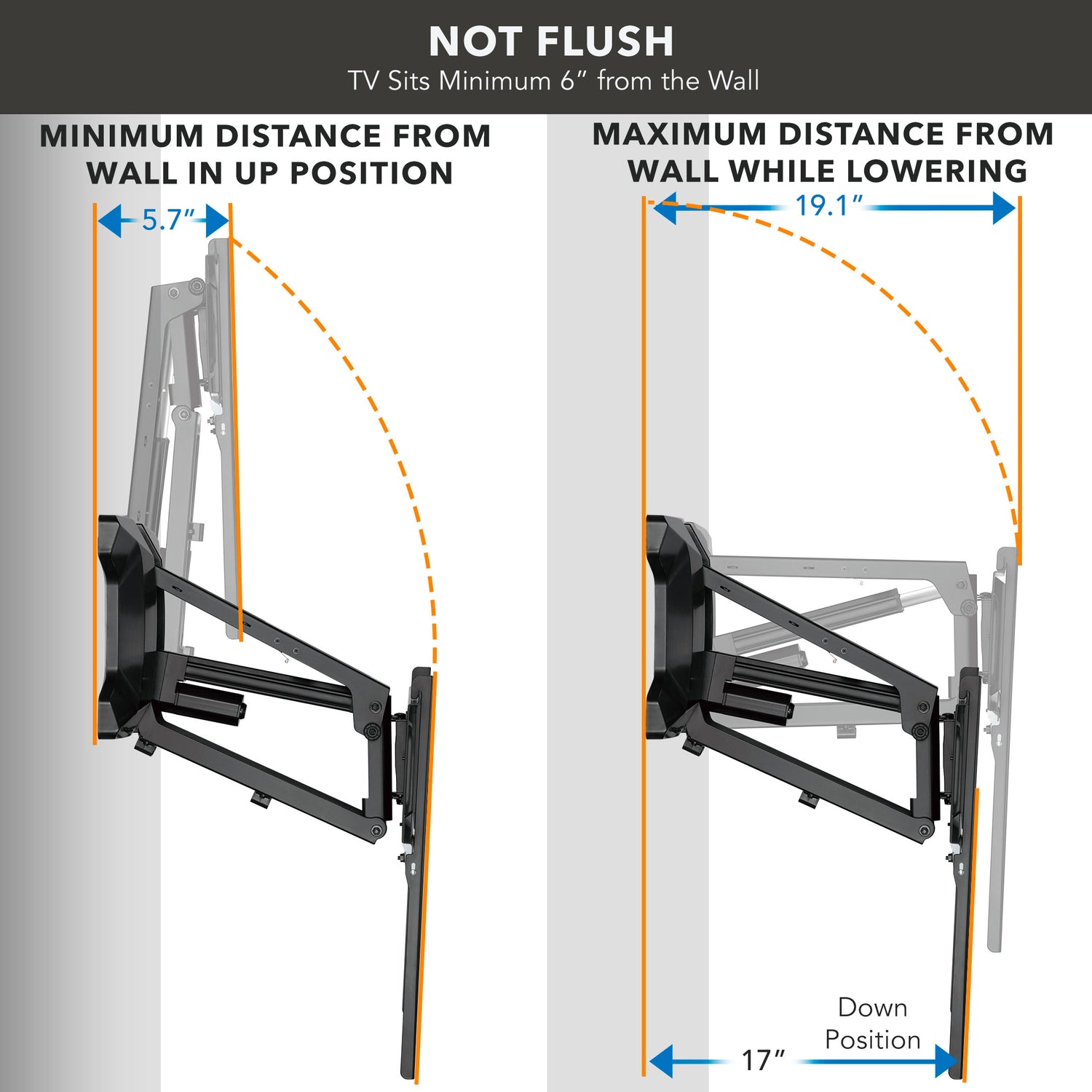

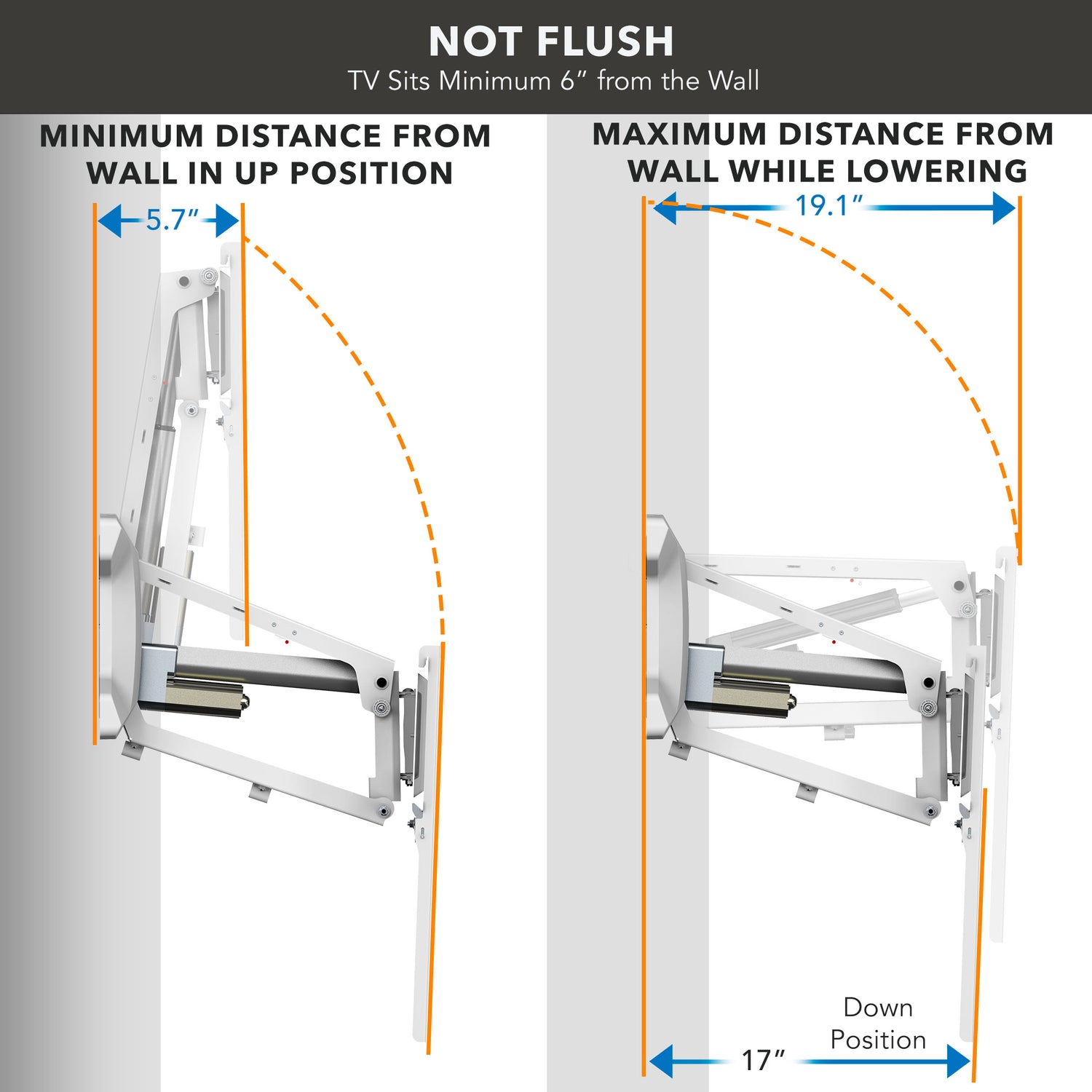

Extends 6.0 to 19.1 in from the wall for flexible positioning

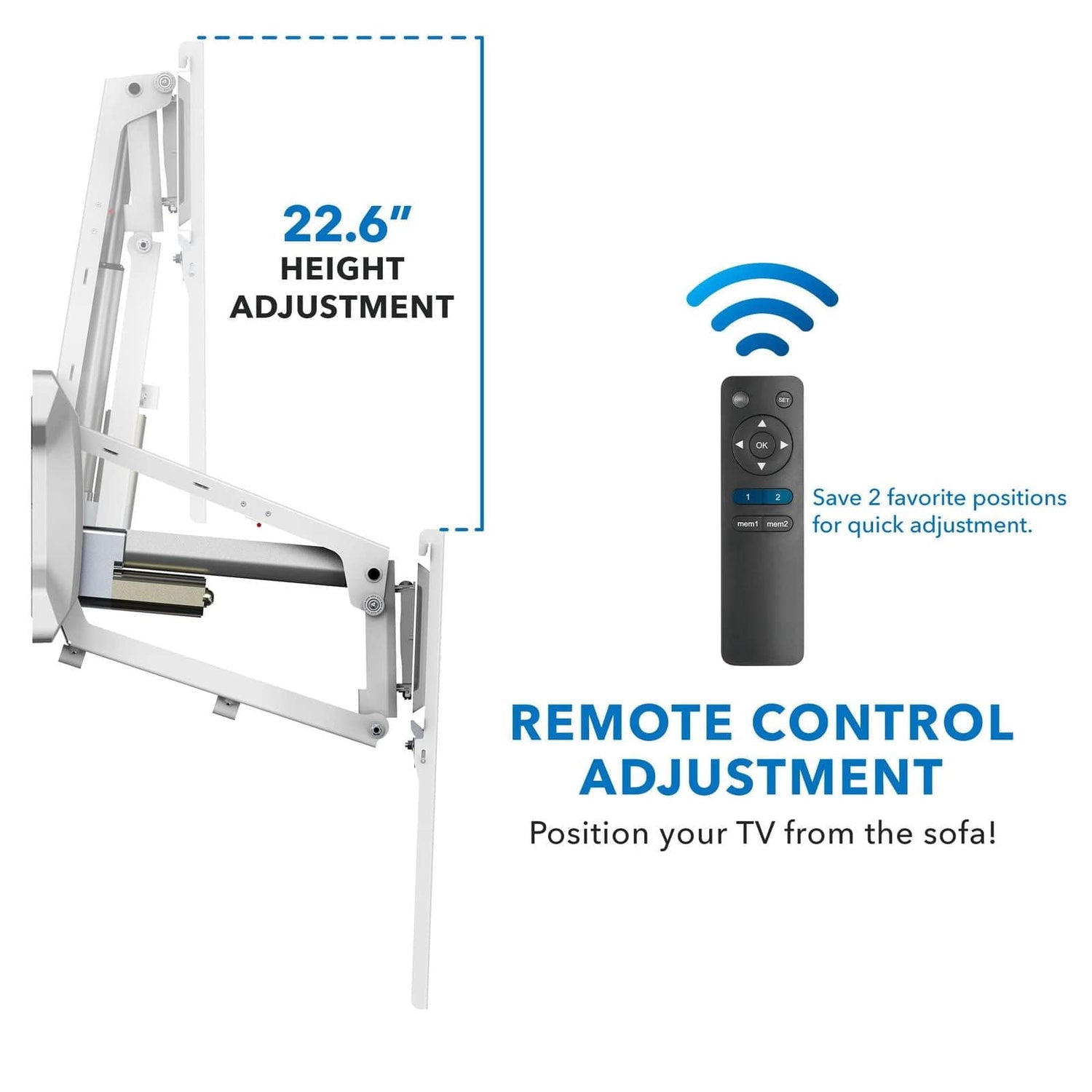

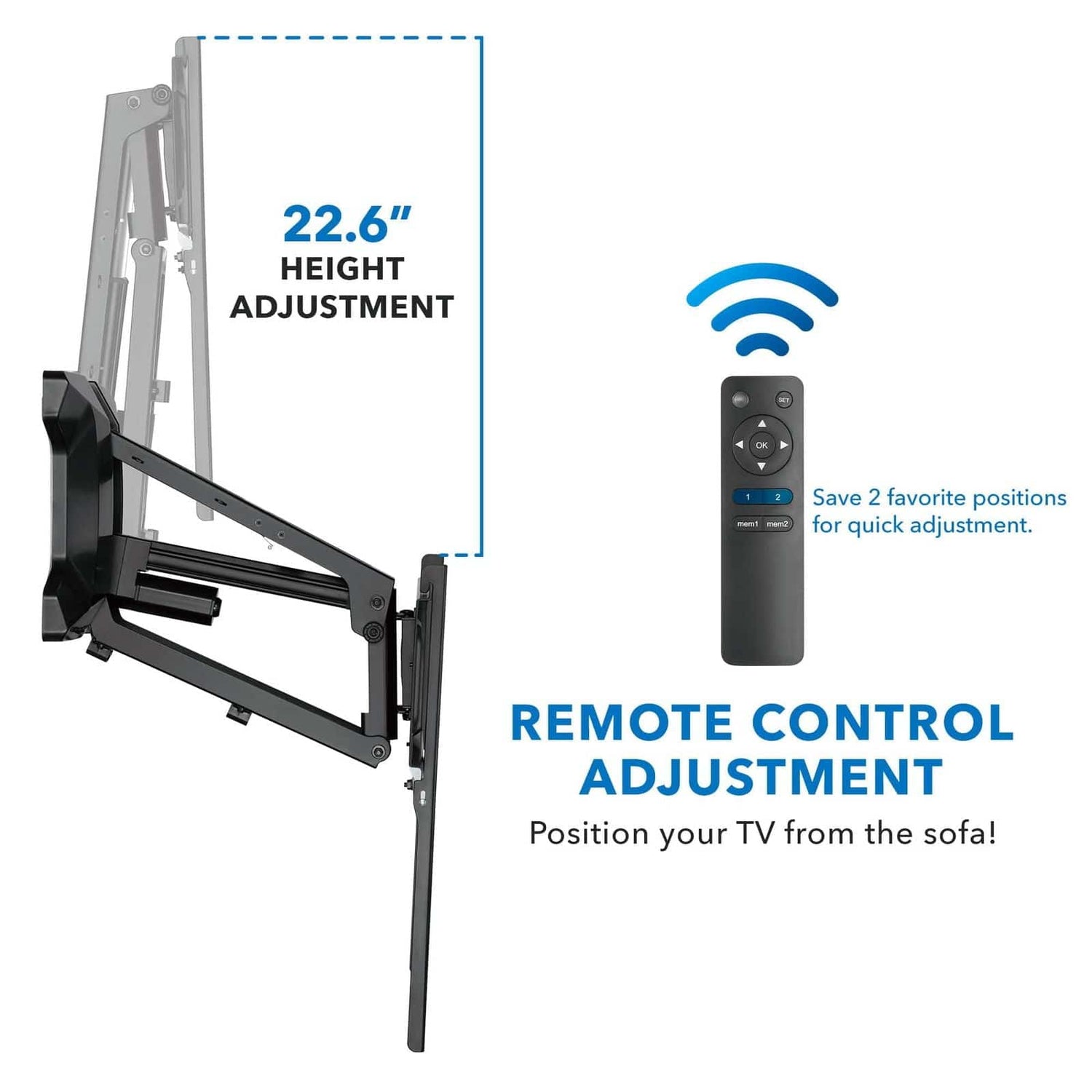

Drops up to 22.6 in from the wall
VESA 200×100 to 600×400 mm - fits most flat panel TV brands
Overview
The Motorized Fireplace TV Wall Mount is a full motion (articulating) fireplace TV wall mount compatible with 40 to 70-inch televisions and rated to hold up to 77 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 50° (25° left and 25° right), tilt −3°, and extends 6.0 to 19.1 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 200×100 to 600×400 mm.

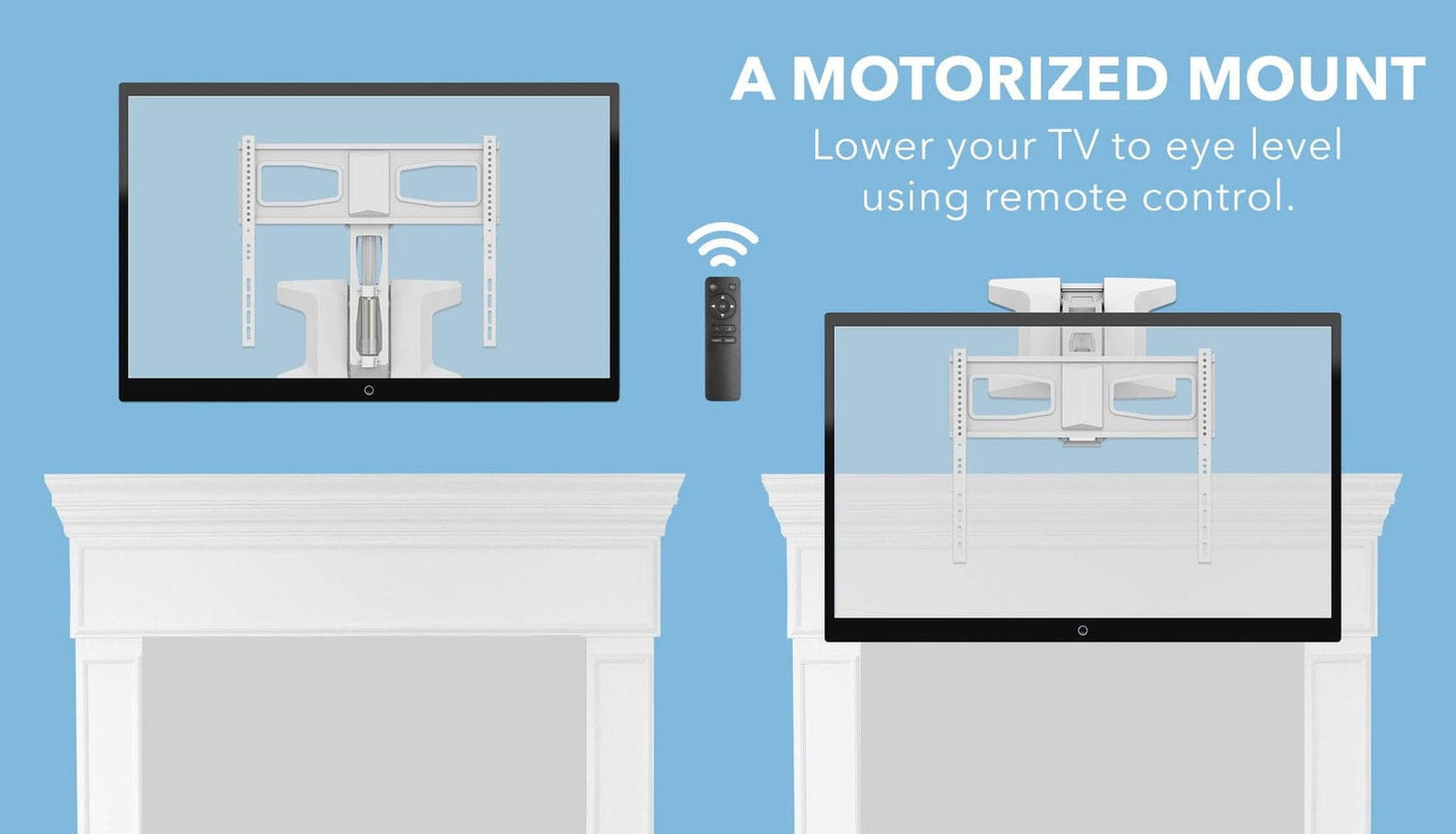

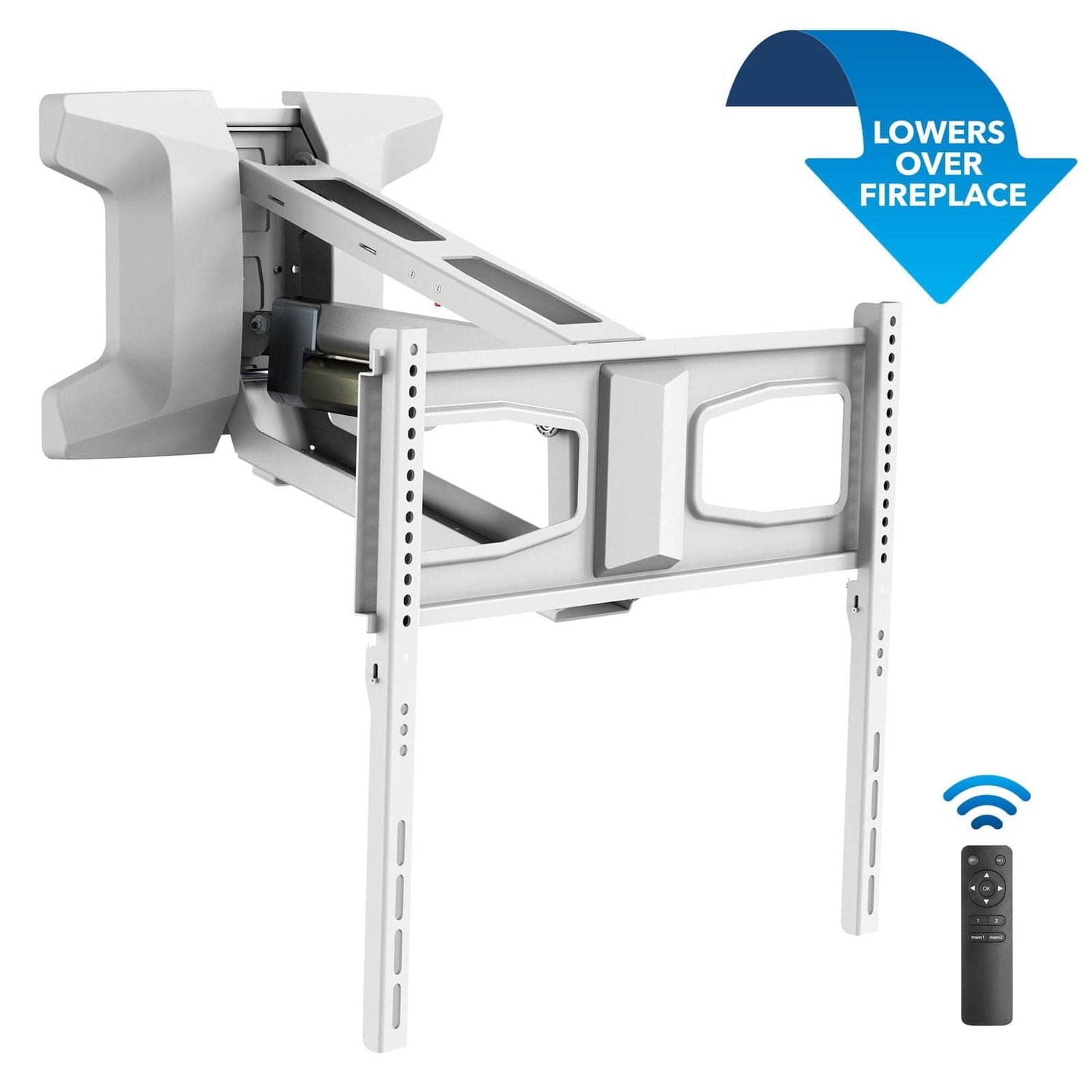

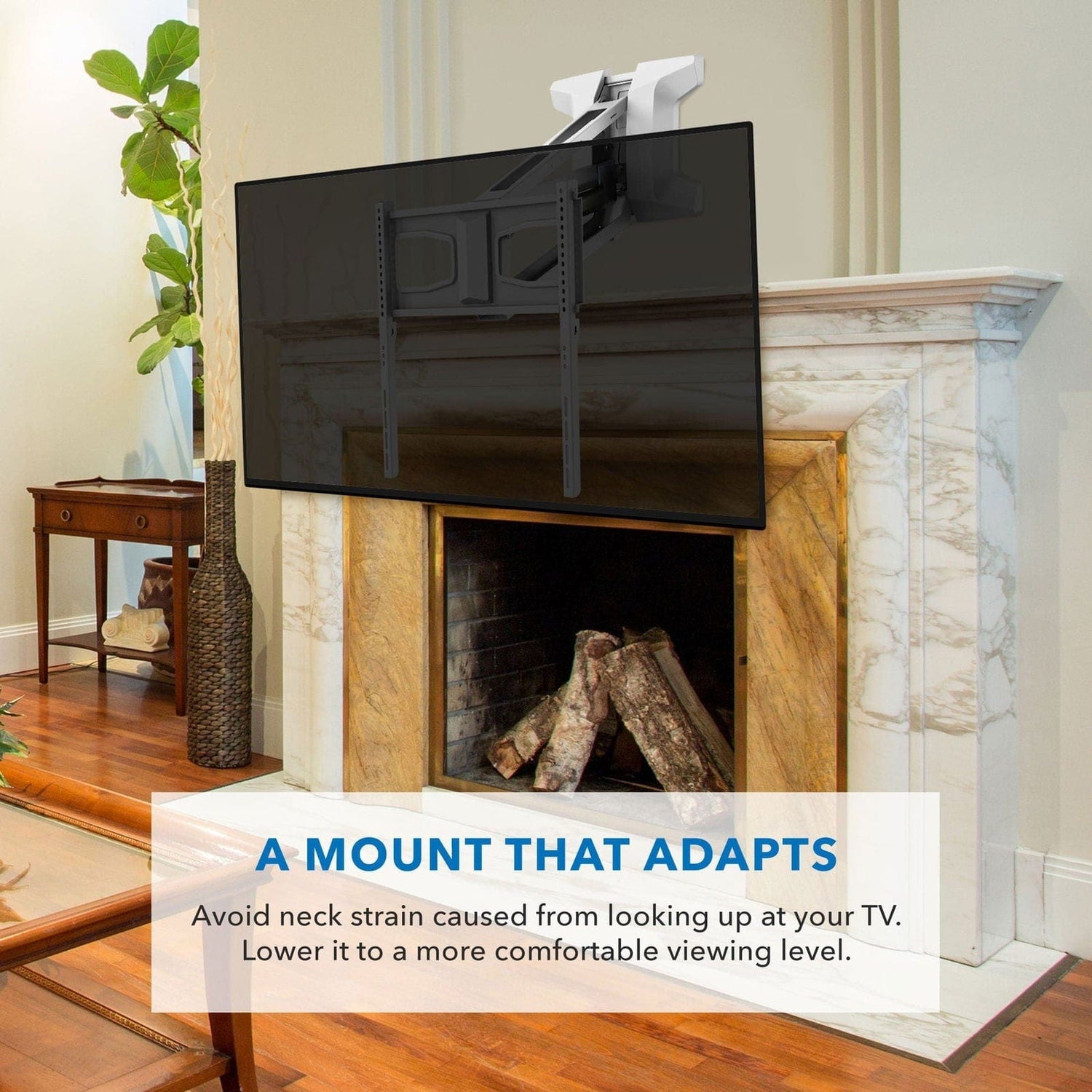

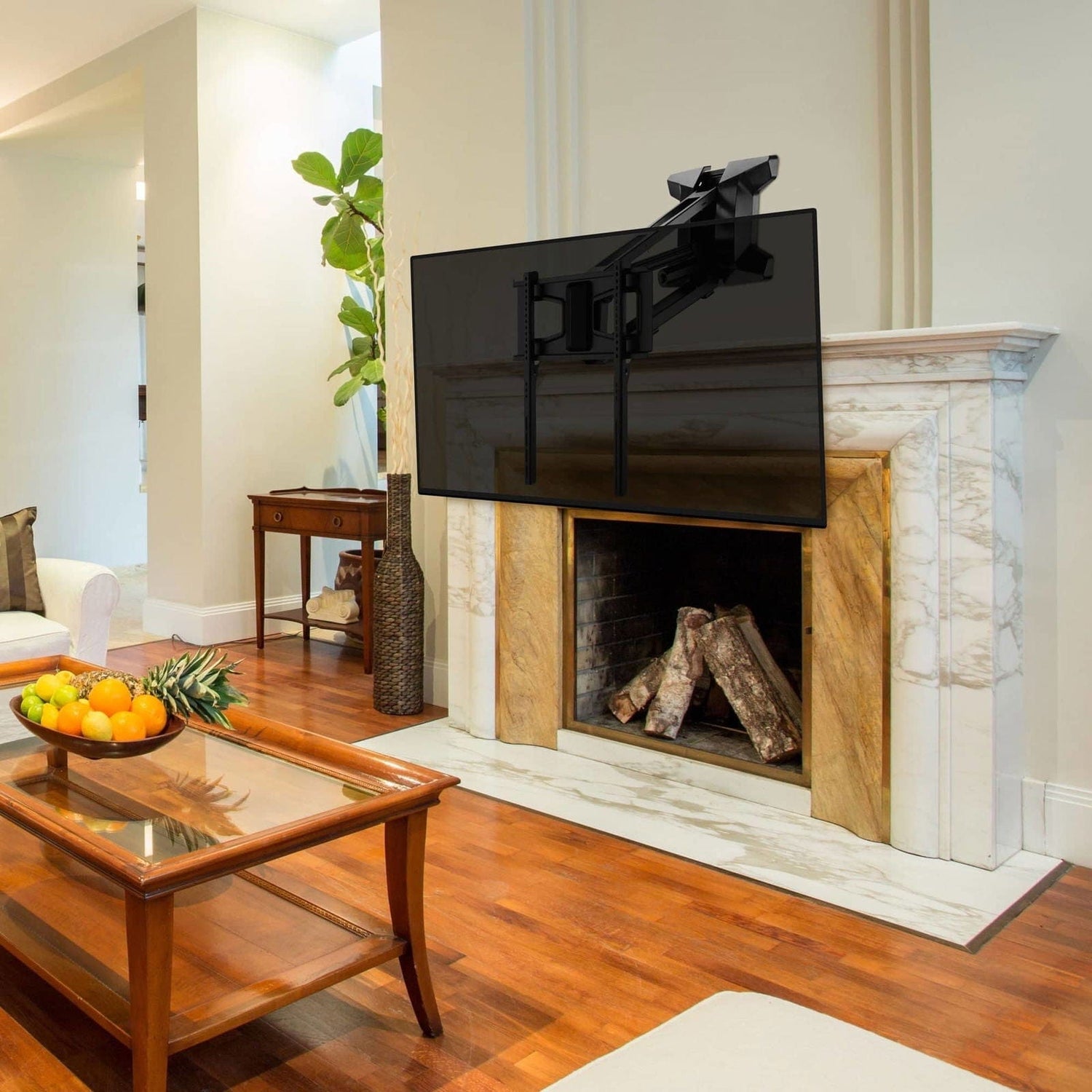

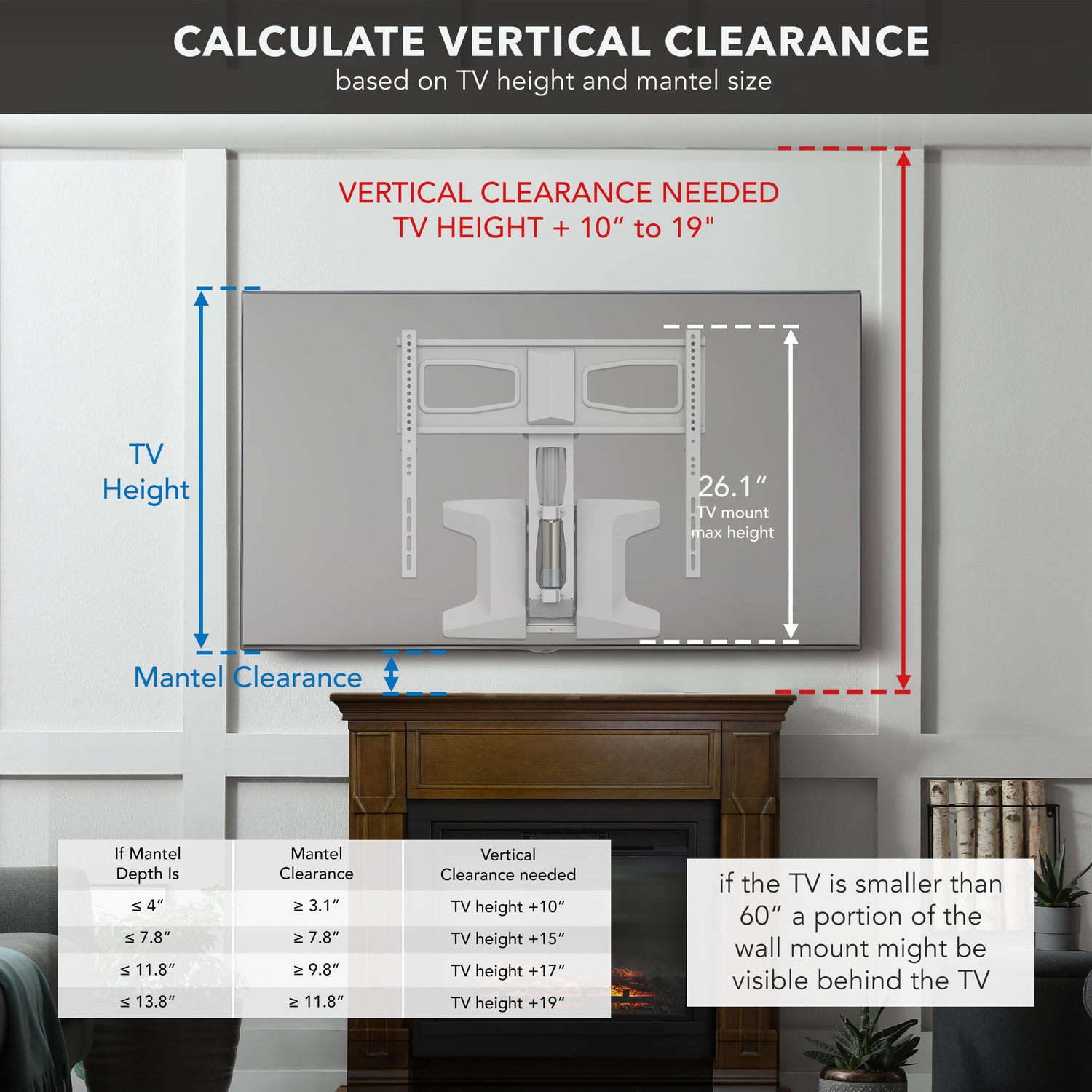

Ideal for above-fireplace installations. The long extension and downward tilt bring the screen down to a comfortable viewing angle when it's mounted high above the mantle.
Specifications
- SKU: MI-386
- Product type: Above-Fireplace TV Mount
- Mount type: Full motion (articulating)
- Product weight: 28.1 lb

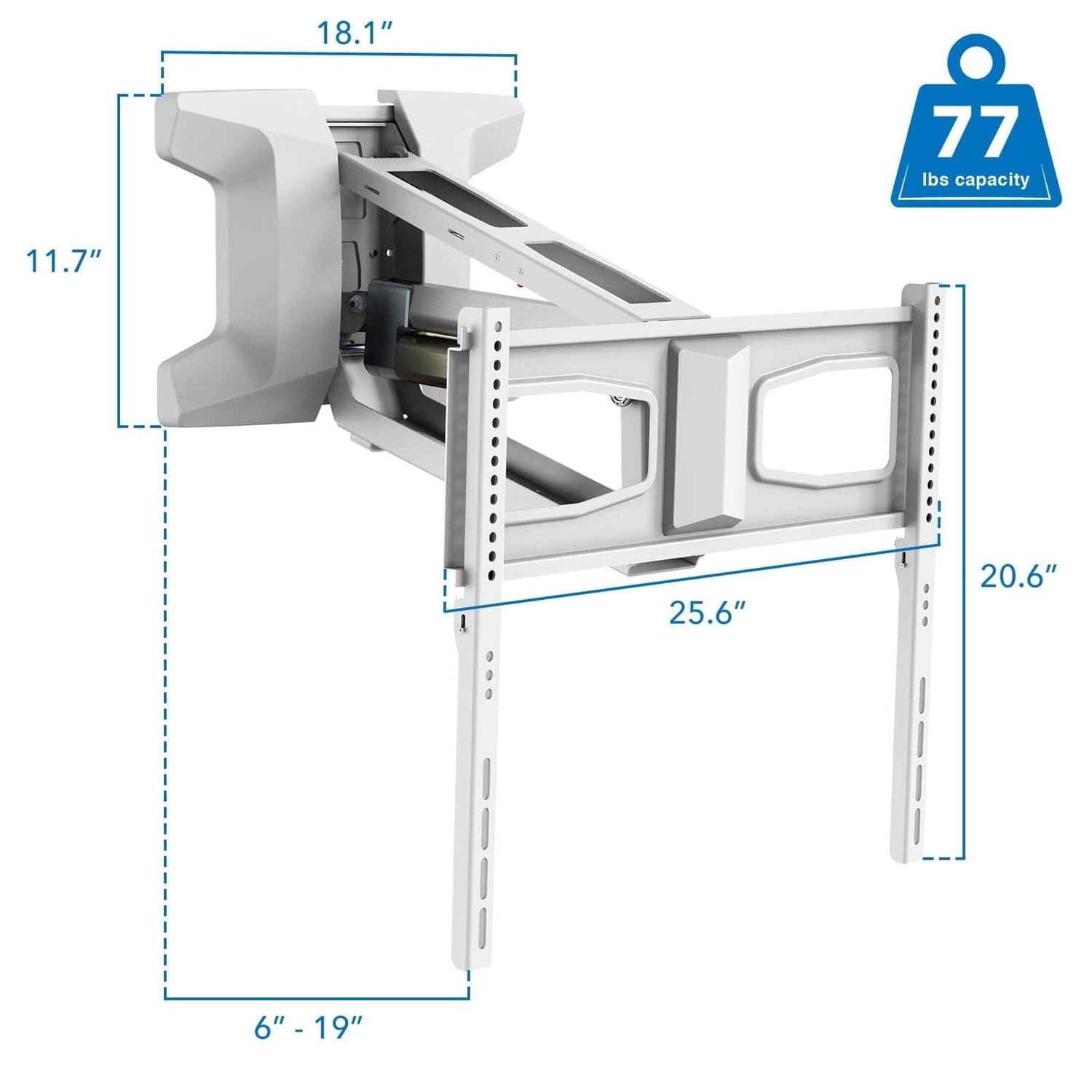

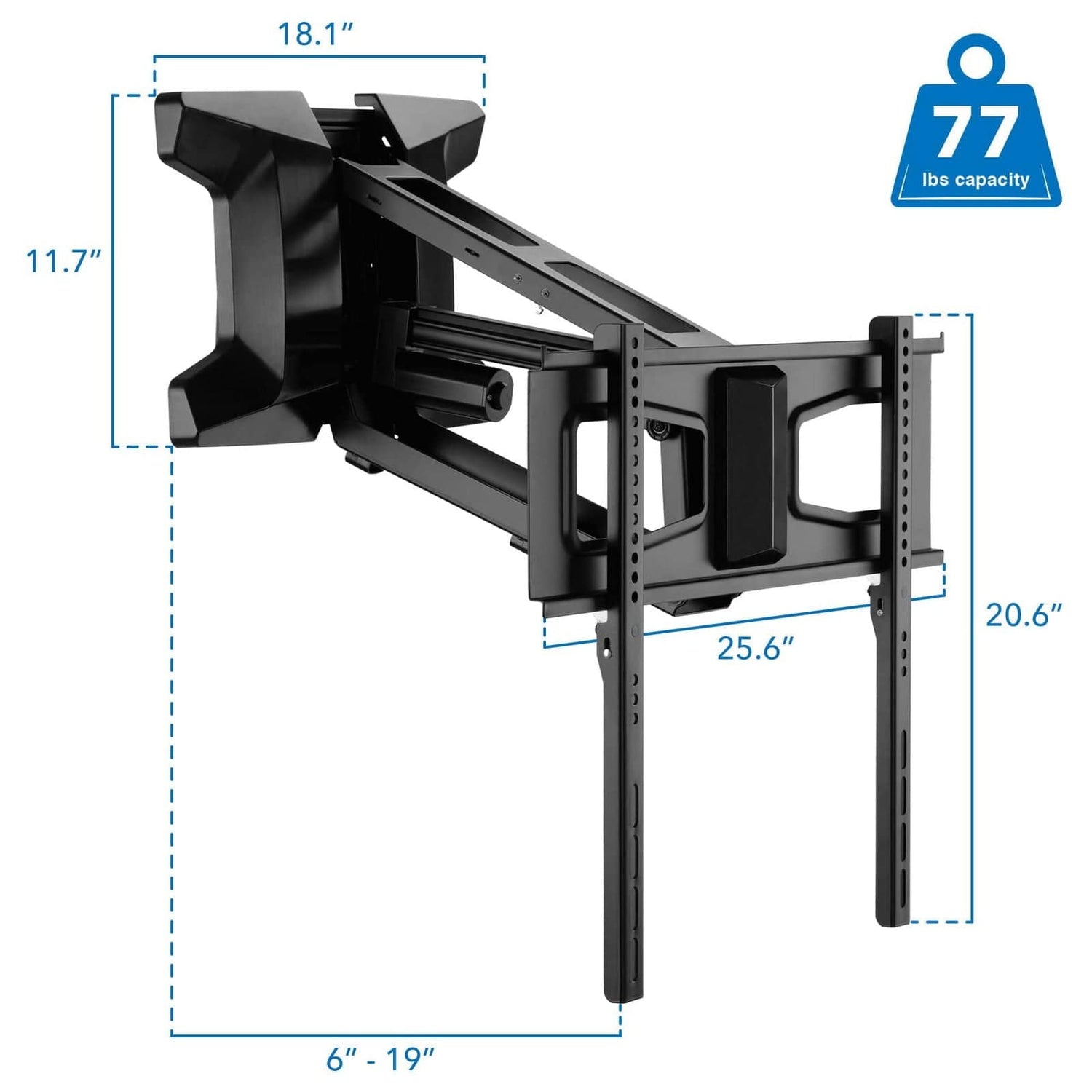

- Wall plate dimensions: 18.1×11.7 in
Holds screens
- Screen size range: 40 to 70 in

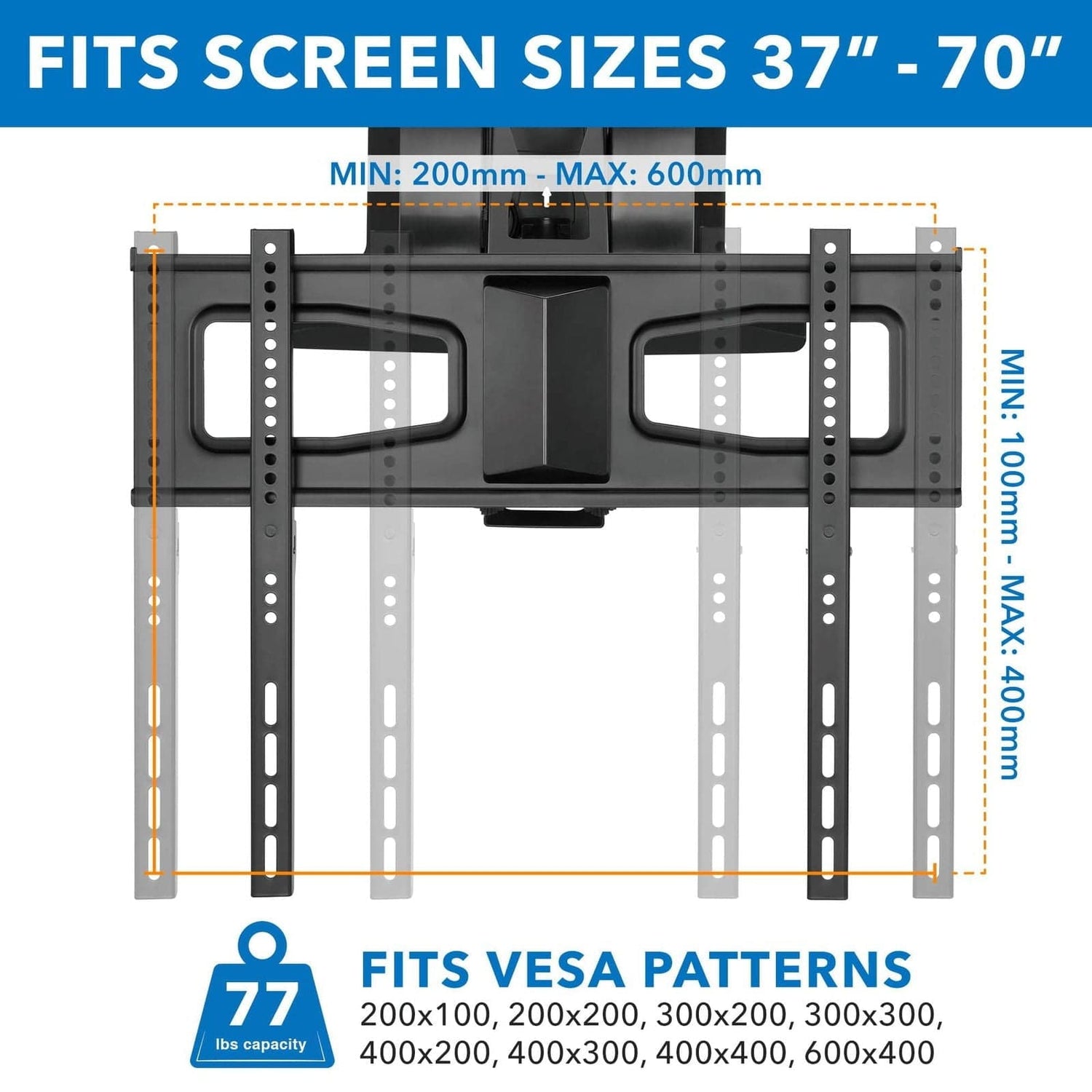

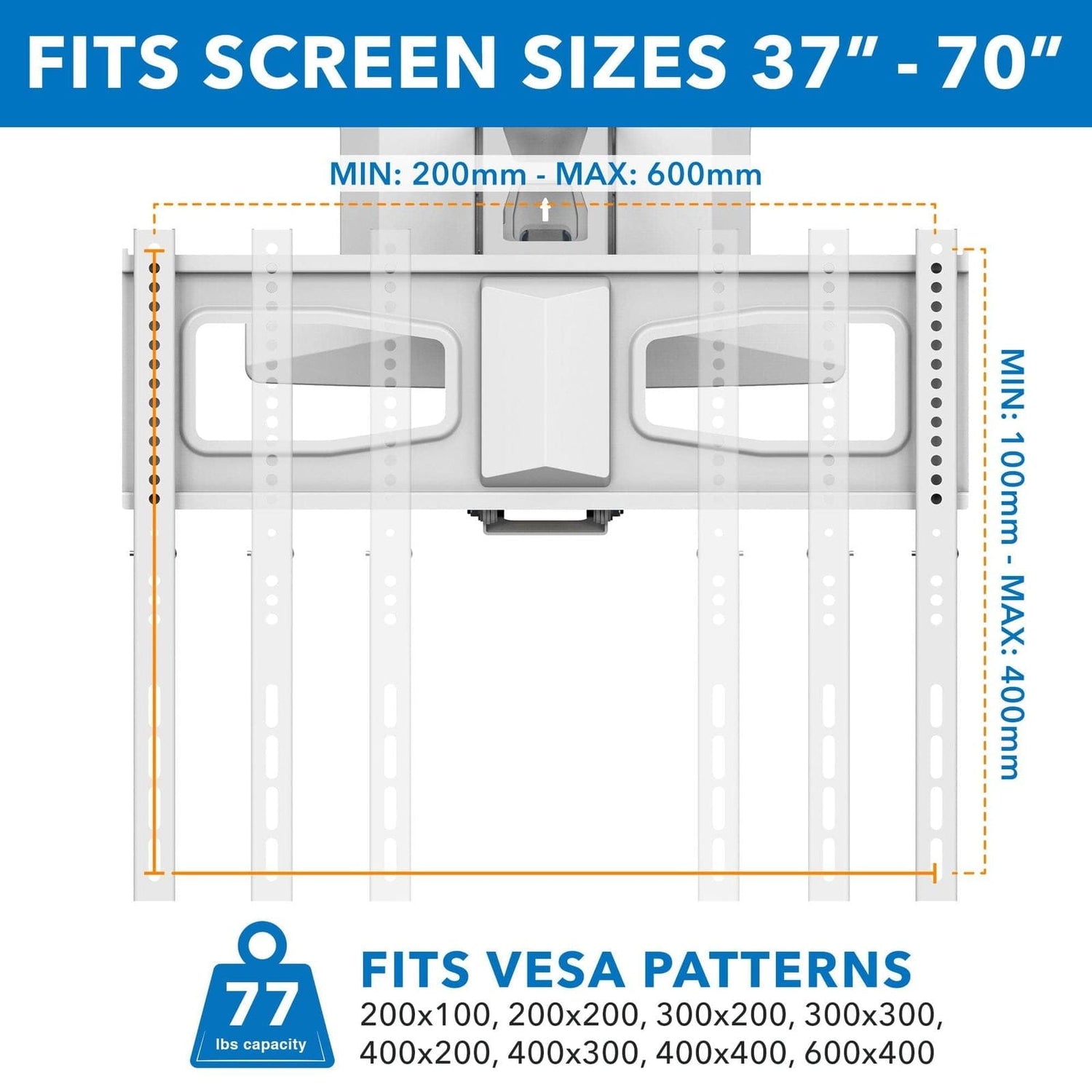

- VESA range: 200×100 to 600×400 mm
- Weight capacity: 77 lb
Movement

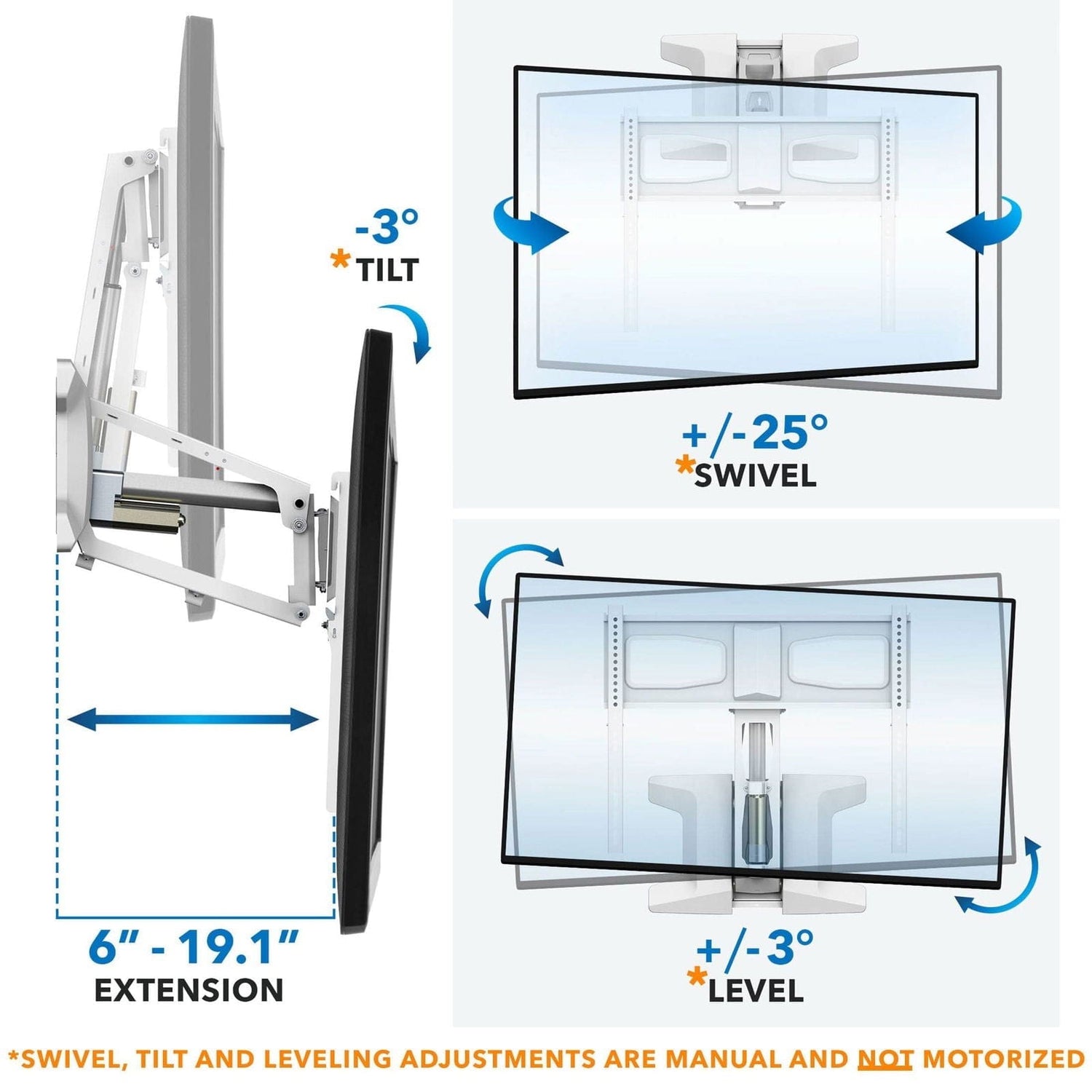

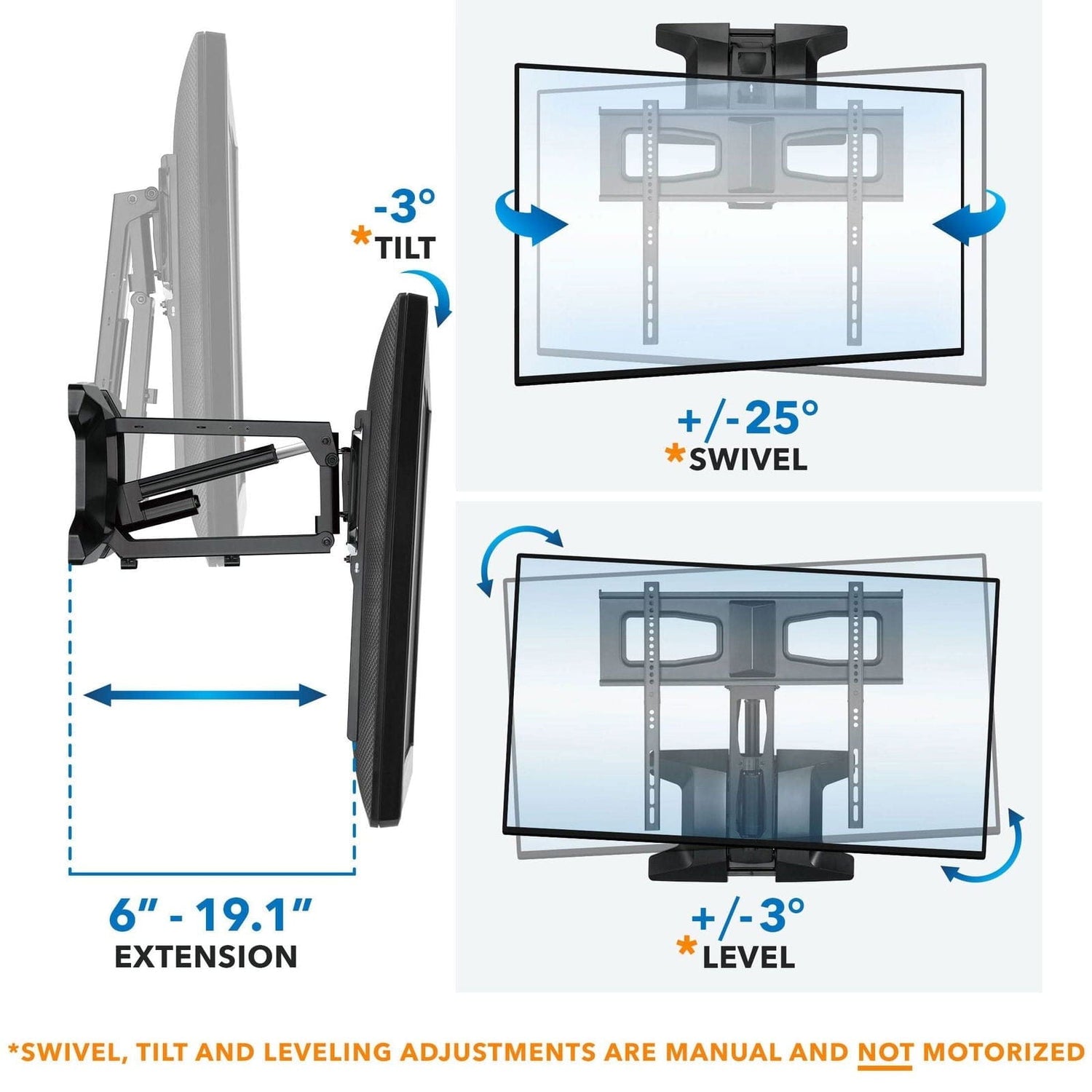

- Swivel: 50° (25° left and 25° right)
- Tilt:−3°
- Extension depth: 6.0 to 19.1 in
- Drop: up to 22.6 in
Installation
The Motorized Fireplace TV Wall Mount is designed for quick and frustration free installation.
Installation is typically completed in about 60 minutes.
Estimated install time: 60 minutes

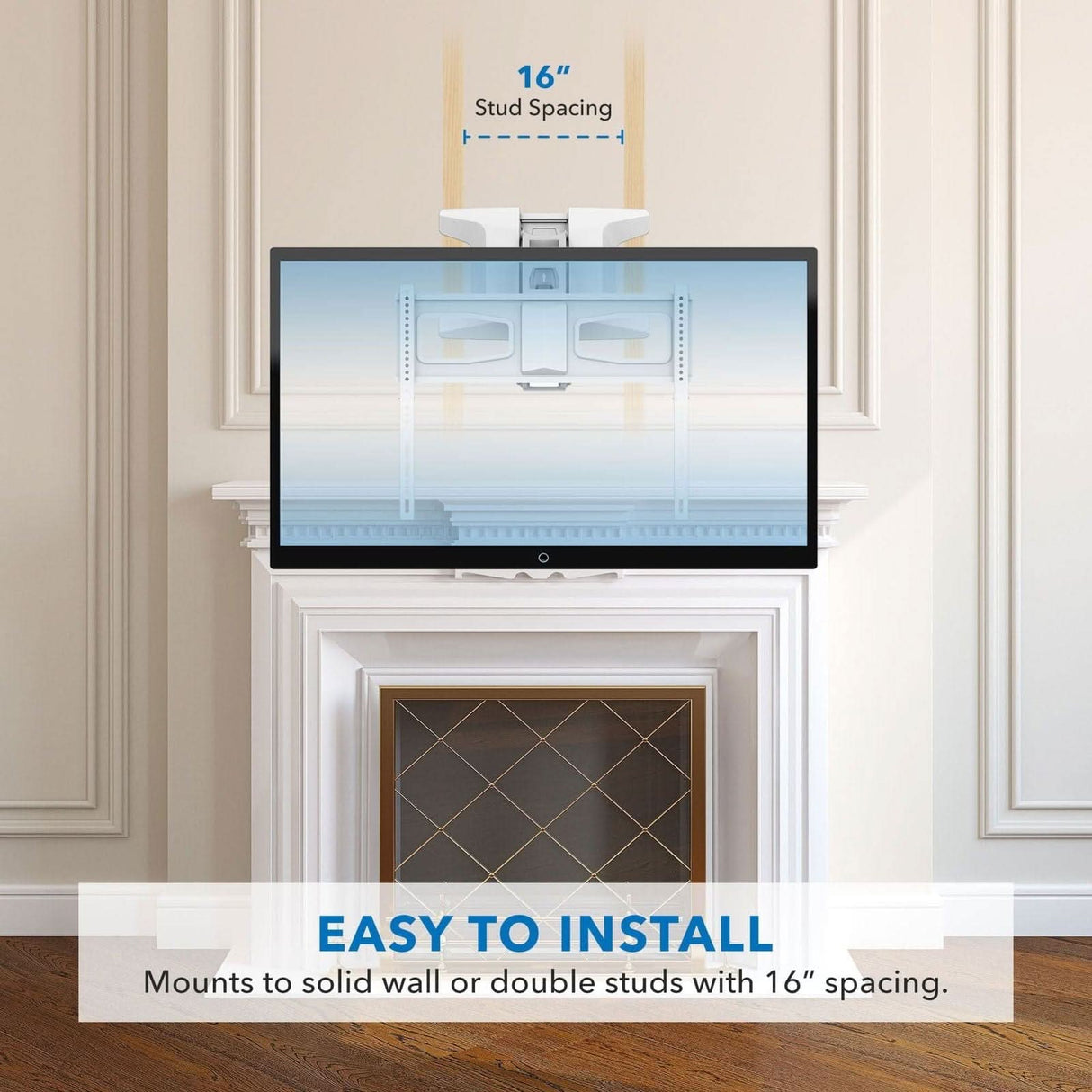

Stud installation type: Dual stud

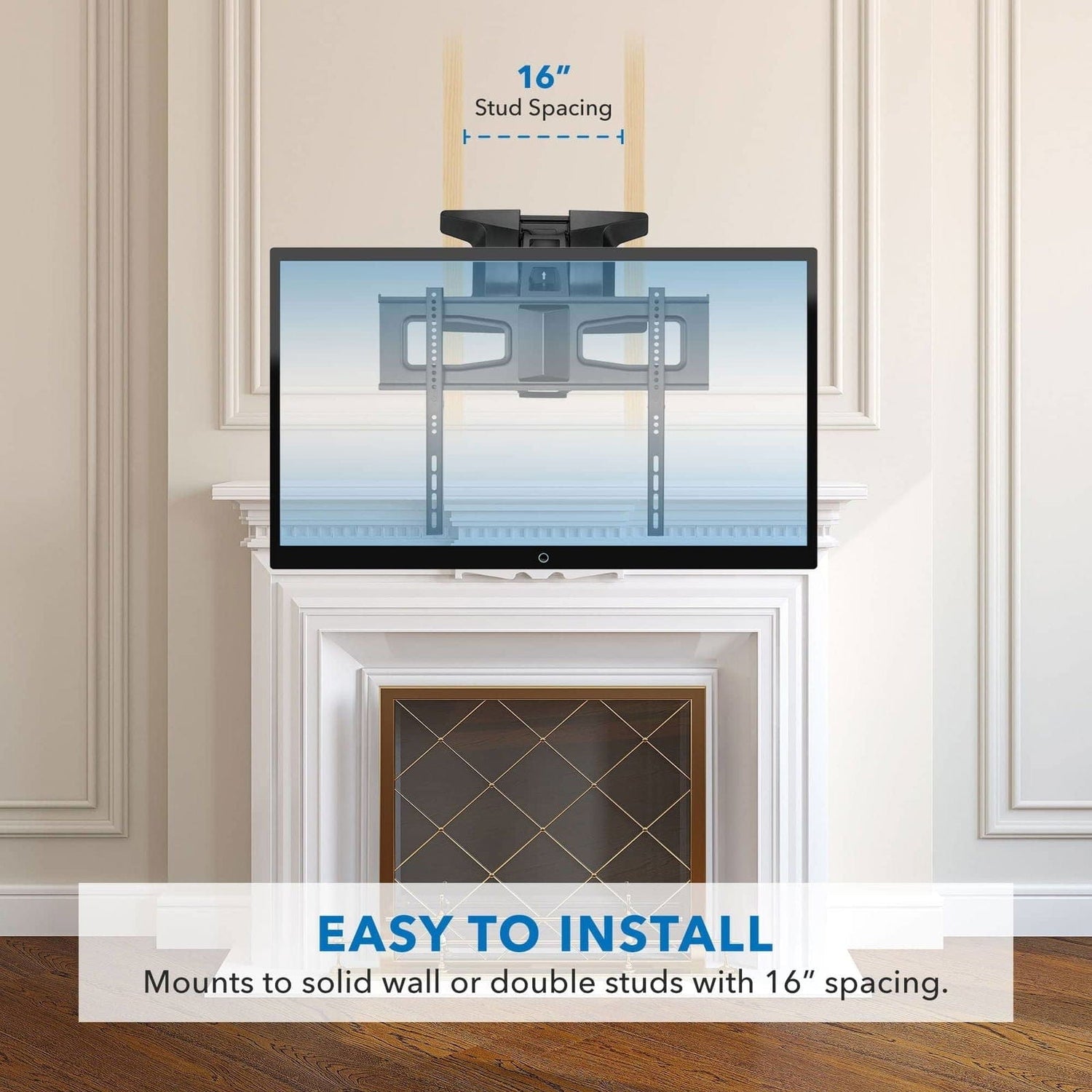

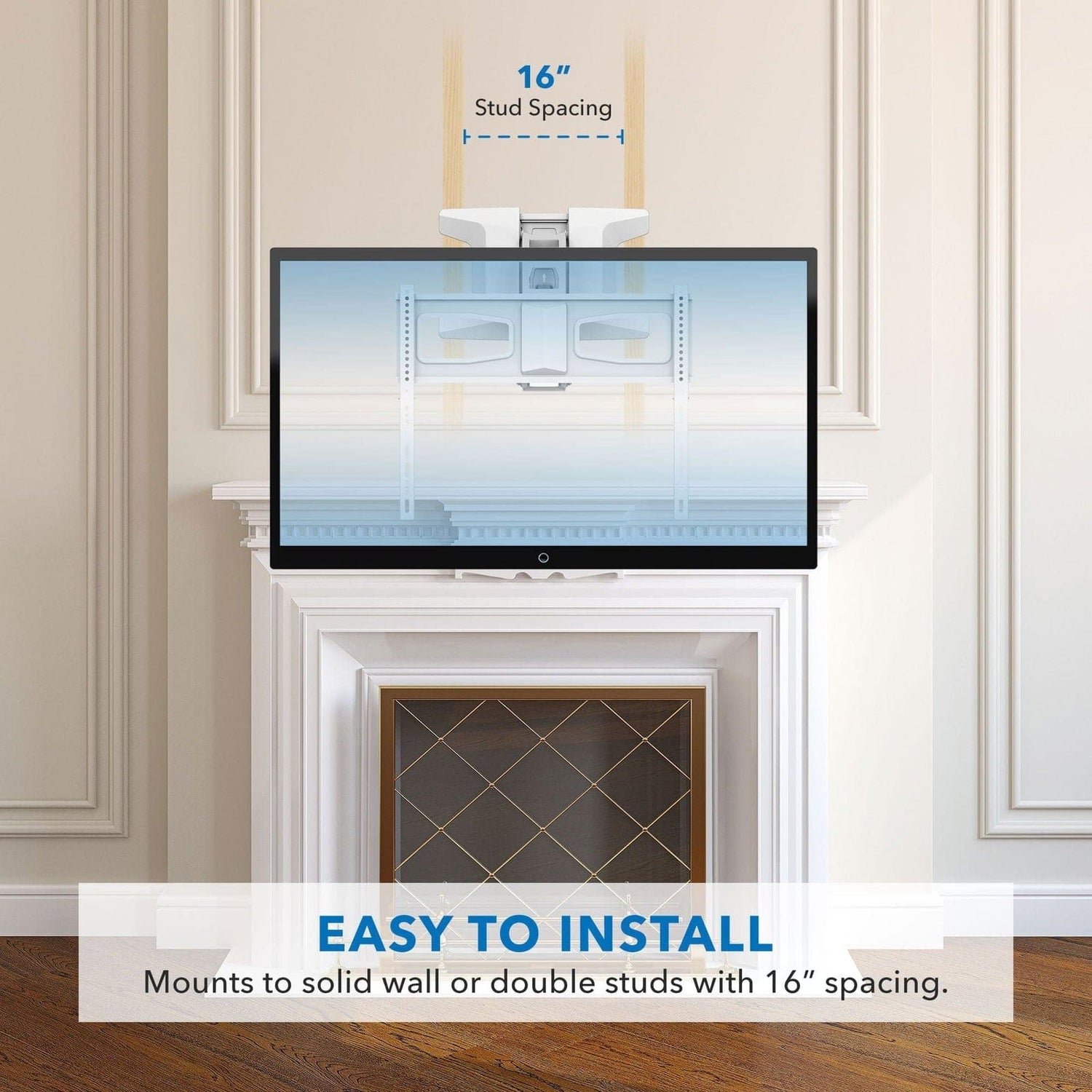

Stud spacing supported: 16 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
- TV niche / recessed
- Wood mantel
- Stone fireplace surround
- Brick fireplace surround
Tools you'll typically need:
- Thermometer
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
