Full Motion TV Wall Mount with Gas Spring Arm for 23" to 55" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
15% OFF with code CUP2026
?
Code not valid for B2B accounts and cannot be used with B2B pricing or POs or combined with other codes and is not valid on sale items. Quantities are limited and subject to change.An articulating full motion TV wall mount for 23 to 55-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 51 lb with VESA 75×75 to 400×400 mm.
Swivels 180.0°, tilts +5.0°/−15.0°, and extends 2.8 to 18.3 inches. Aim the screen at any seat and reach the right depth.

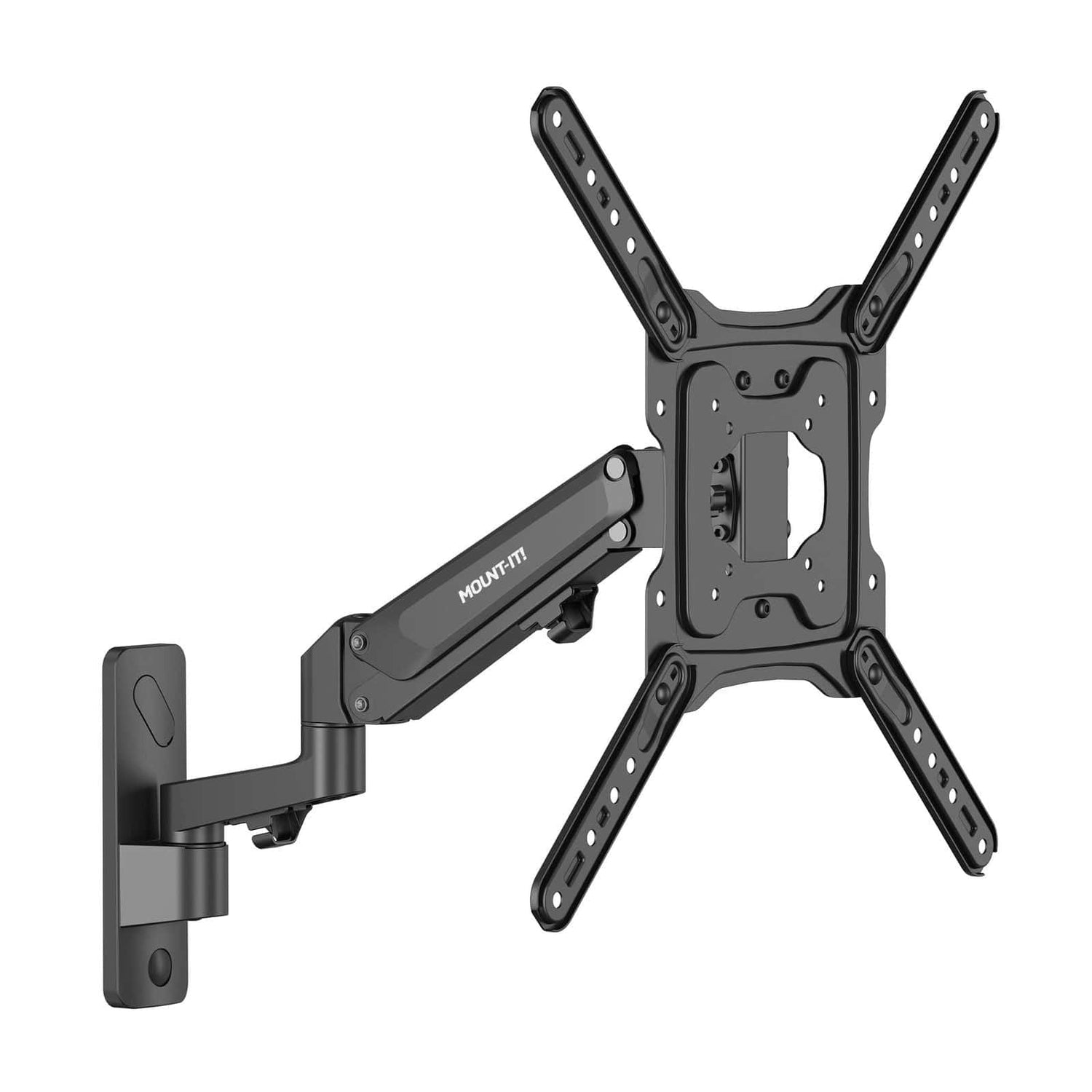

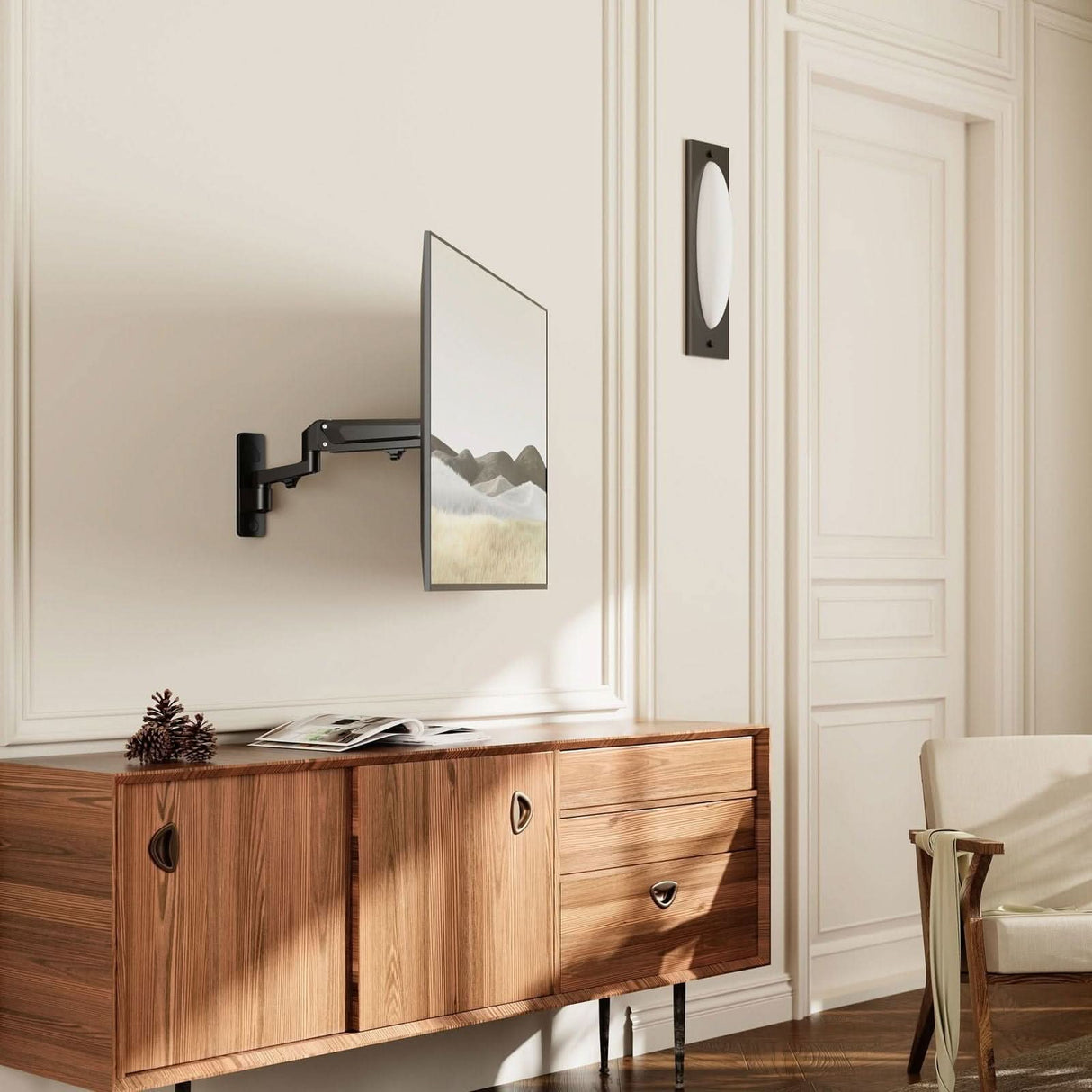

Full Motion TV Wall Mount with Gas Spring Arm
Features
Fits 23 to 55 inch flat screen TVs
Weight rated up to 51 lb

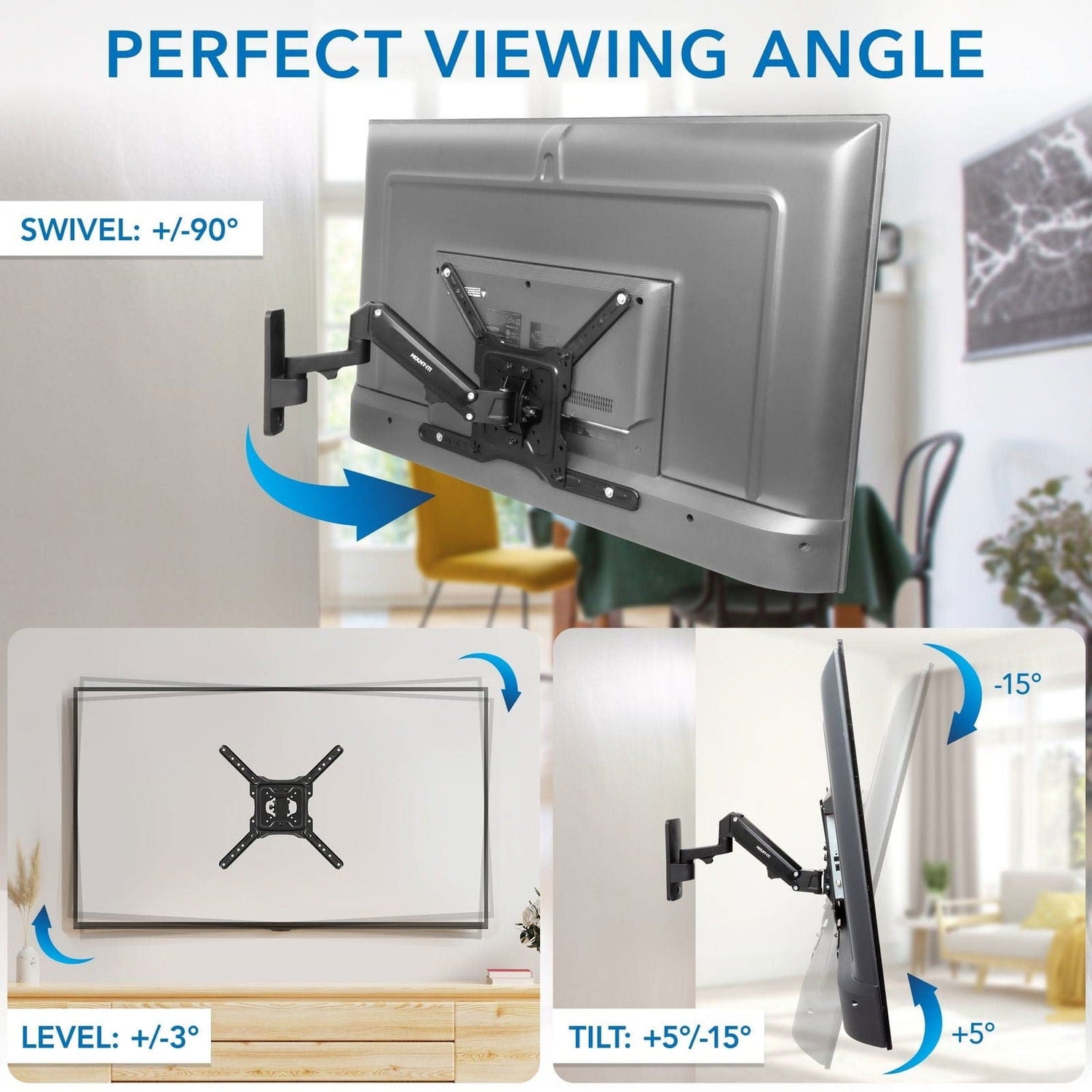

Swivels 180.0° (90.0° left and 90.0° right), aim the screen at any seat
Adjustable tilt +5.0° up / −15.0° down - reduce glare, improve your view

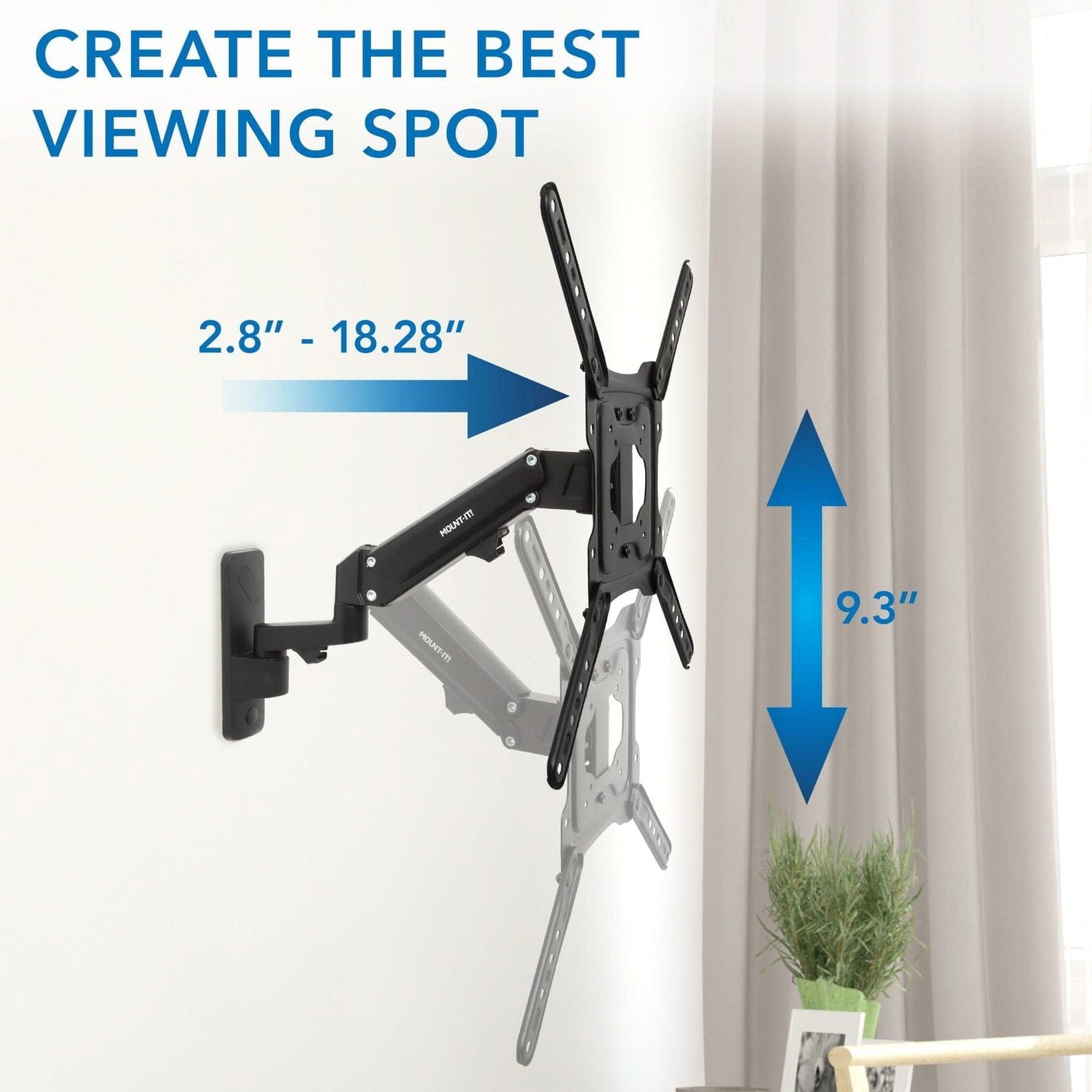

Extends 2.8 to 18.3 in from the wall for flexible positioning
Drops up to 9.3 in from the wall

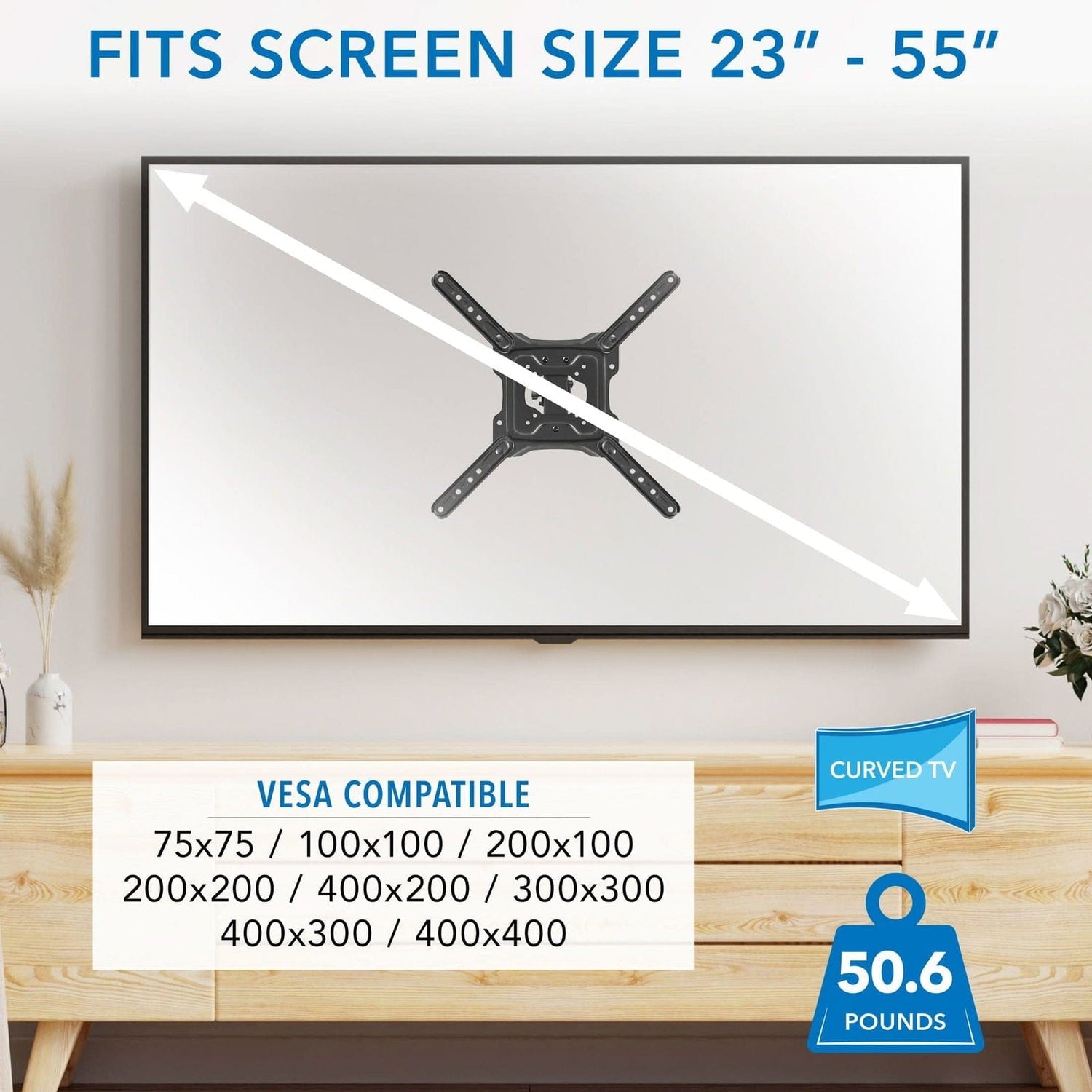

VESA 75×75 to 400×400 mm - fits most flat panel TV brands

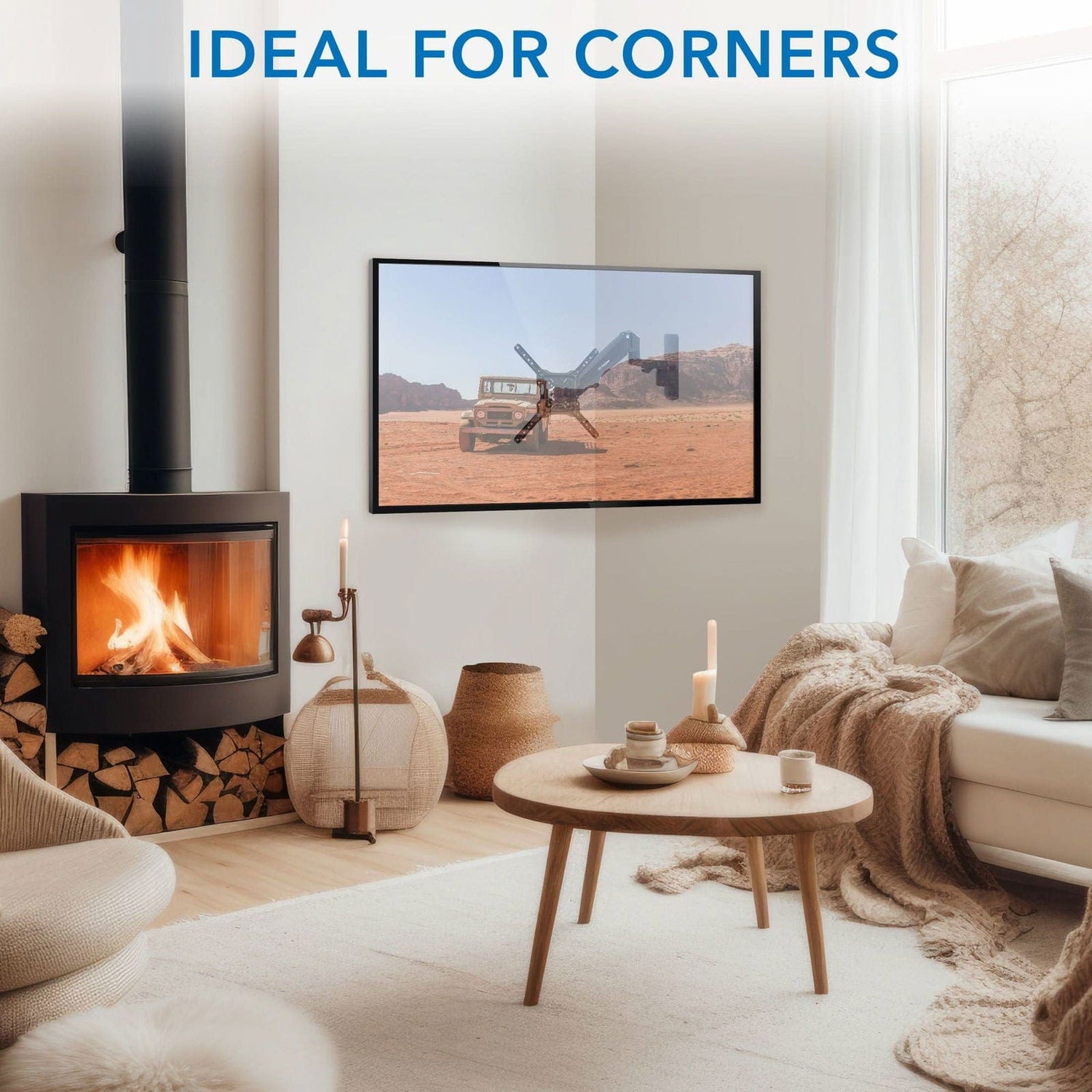

Supports corner wall installations
Overview

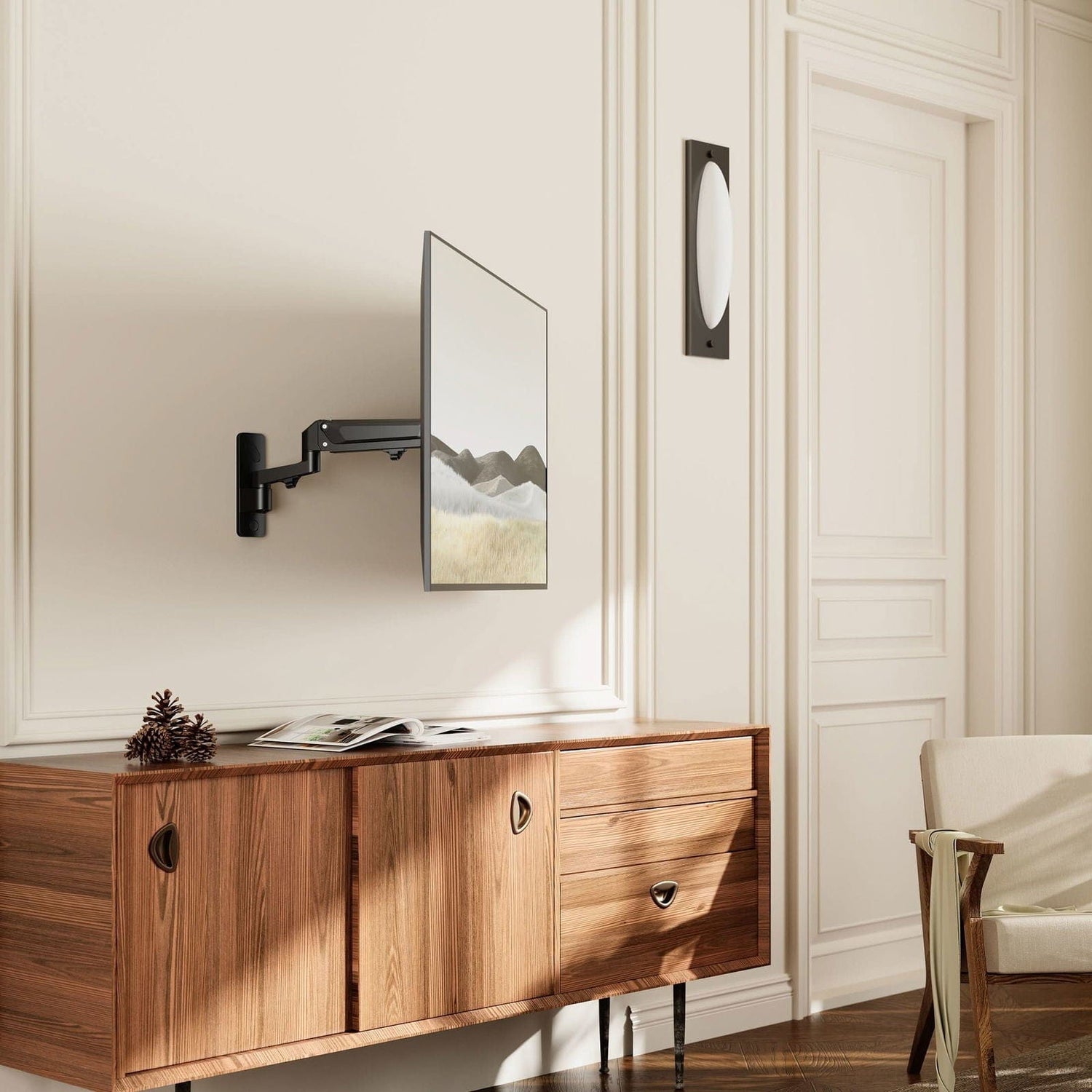

The Full Motion TV Wall Mount with Gas Spring Arm is a full motion (articulating) TV wall mount compatible with 23 to 55-inch televisions and rated to hold up to 51 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 180° (90° left and 90° right), tilt +5°/−15°, and extends 2.8 to 18.3 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 75×75 to 400×400 mm. Also supports corner wall installations for rooms where flat wall space is limited. Note: requires a minimum TV weight of 11 lb for proper mount tension and stability.
A practical choice for large living rooms, corner installs, or any setup where the optimal viewing position isn't directly in front of the wall.
Ideally used for
Specifications
- SKU: MI-444BLK
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 8.8 lb

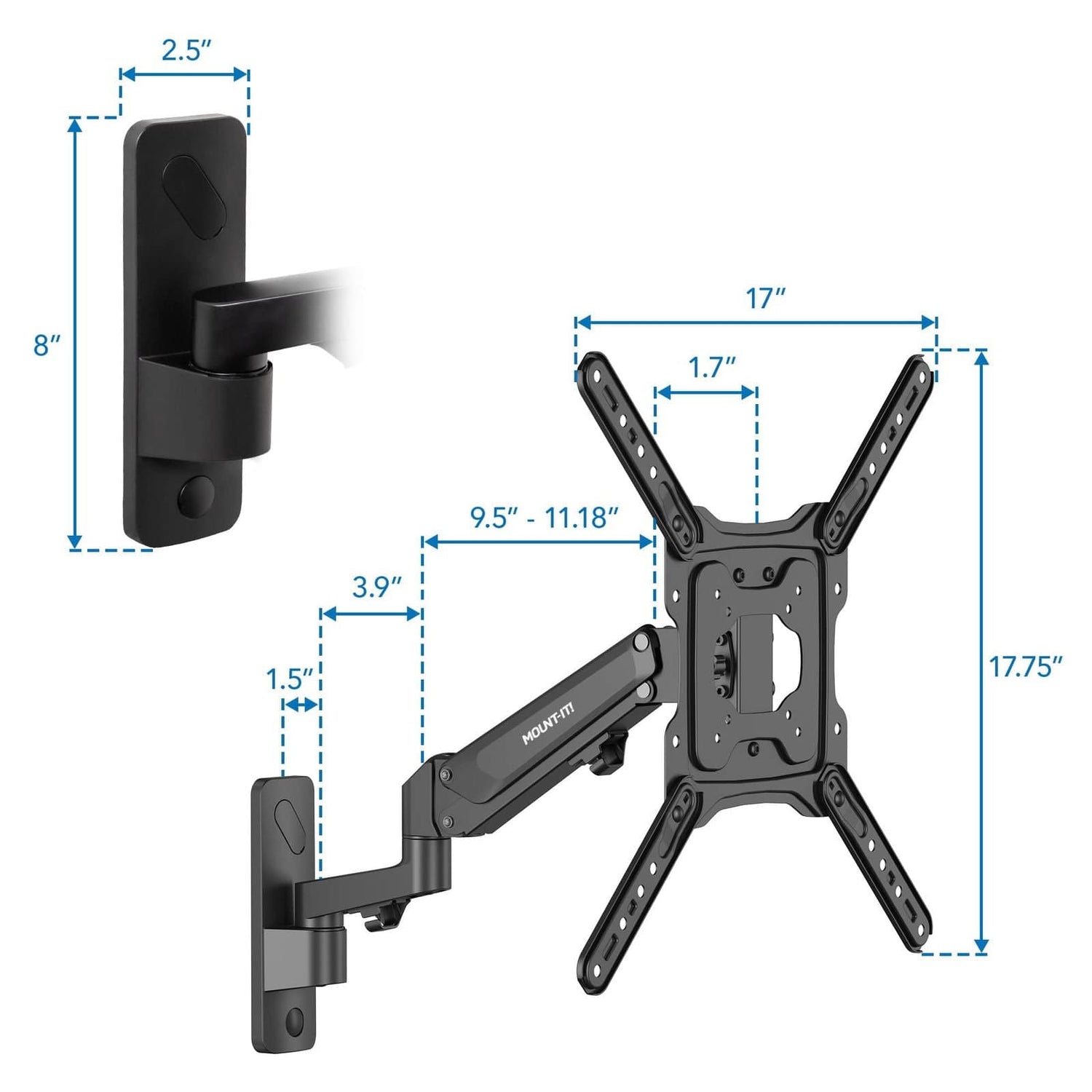

- Wall plate dimensions: 2.5×8.0 in
Holds screens
- Screen size range: 23 to 55 in
- VESA range: 75×75 to 400×400 mm
- Weight capacity: 51 lb
- Minimum weight required: 11 lb
Movement
- Swivel: 180° (90° left and 90° right)
- Tilt:+5°and−15°
- Extension depth: 2.8 to 18.3 in
- Drop: up to 9.3 in
- Corner compatible: Yes
Installation
The Full Motion TV Wall Mount with Gas Spring Arm is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes

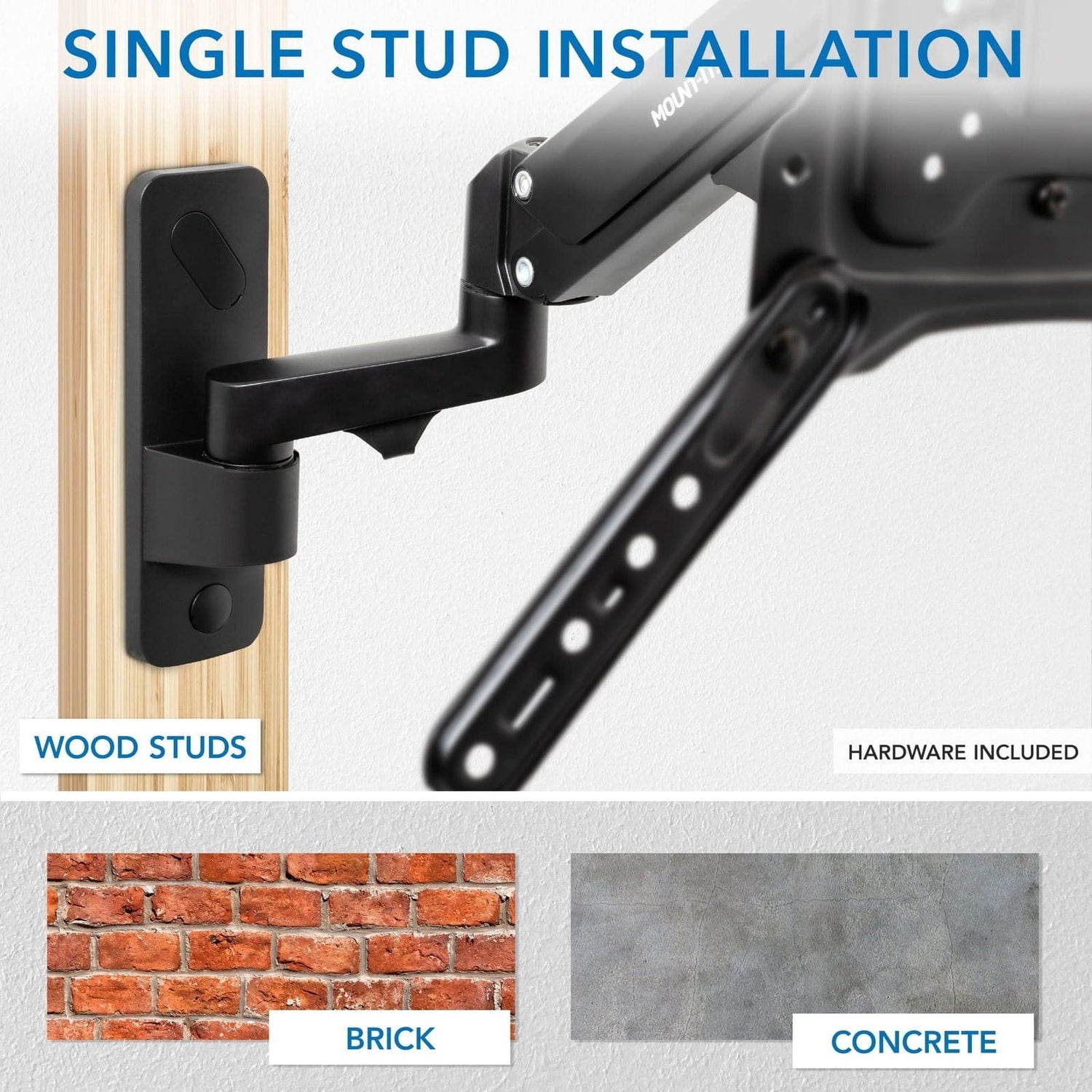

Stud installation type: Single stud
Corner installations: Supported
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
