Mount-It! Heavy Duty XXL Tilt TV Mount for 60" to 120" TVs | MI-14009
Tilting TV Mount
Low Profile · Adjustable Viewing Angle
A low-profile tilting TV wall mount for 60 to 120-inch flat screen TVs, sits flush to the wall and lets you angle the screen, rated (up to 264 lb with VESA 50×50 to 900×600 mm).
Tilt +10.0°/−10.0° to eliminate glare and get the right viewing angle from your seat.

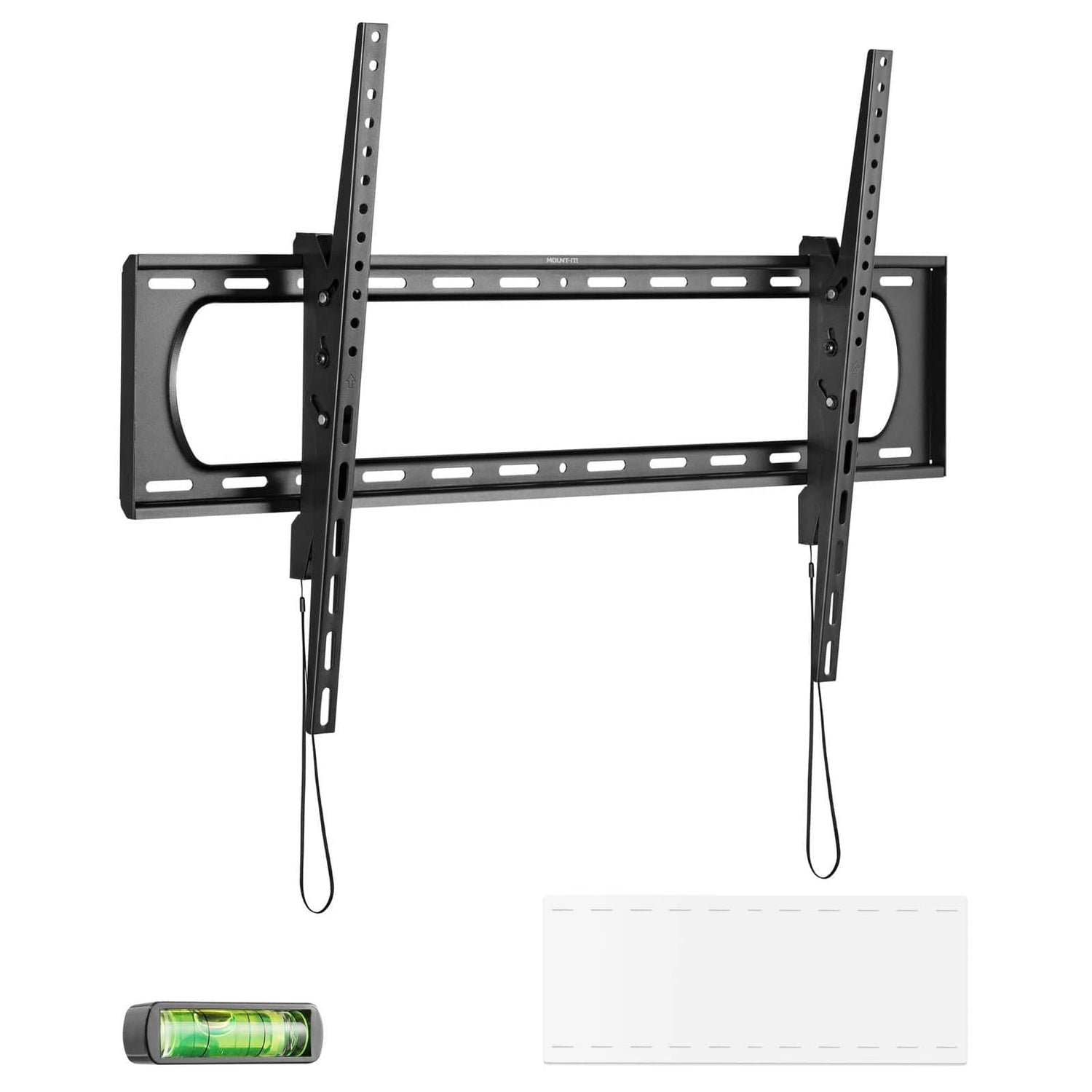

Heavy Duty XXL Tilt TV Mount
Features
Fits 60 to 120 inch flat screen TVs
Weight rated up to 264 lb
Adjustable tilt +10.0° up / −10.0° down - reduce glare, improve your view
Low profile - mounts just 3.1 in from the wall
VESA 50×50 to 900×600 mm - fits most flat panel TV brands
Overview

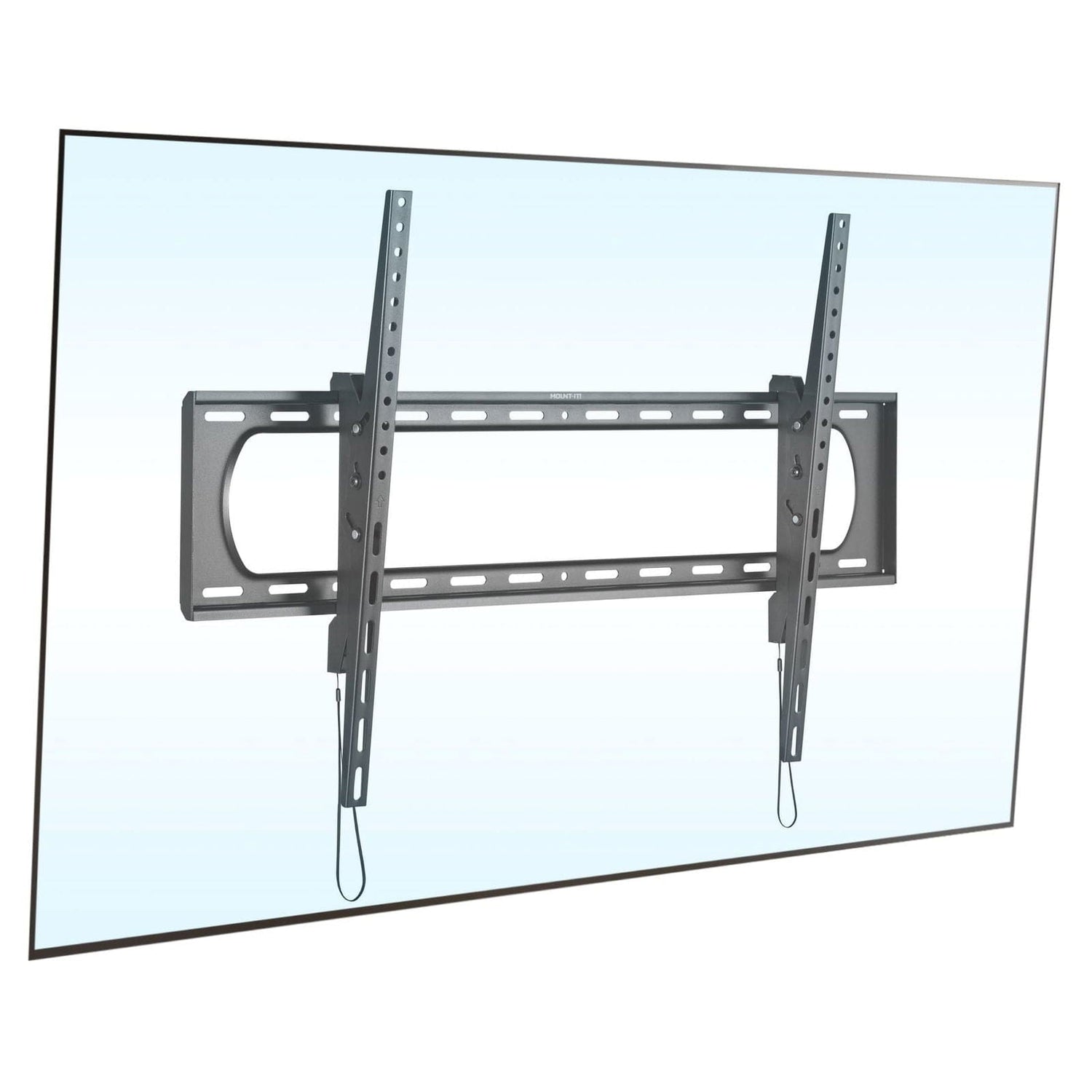

The Heavy Duty XXL Tilt TV Mount is a low-profile tilting TV wall mount for 60 to 120-inch televisions that sits close to the wall for a clean, minimal installation while giving you the ability to angle the screen and eliminate glare. Rated for TVs up to 264 lb.

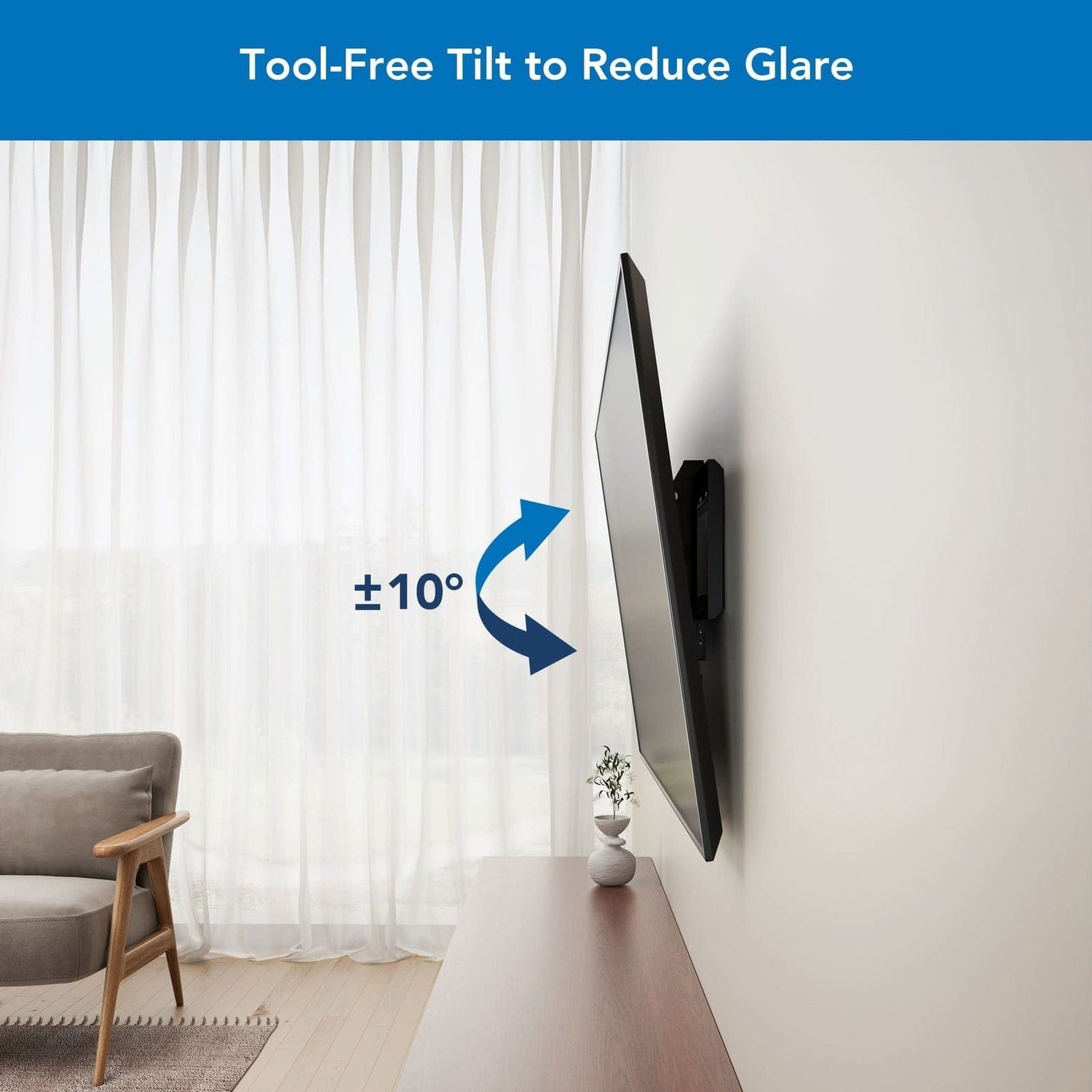

Adjustable tilt +10°/−10° to reduce reflections and find the right viewing angle from your seat. Profile depth 3.1 in — sits close to the wall for a neat, minimal installation.

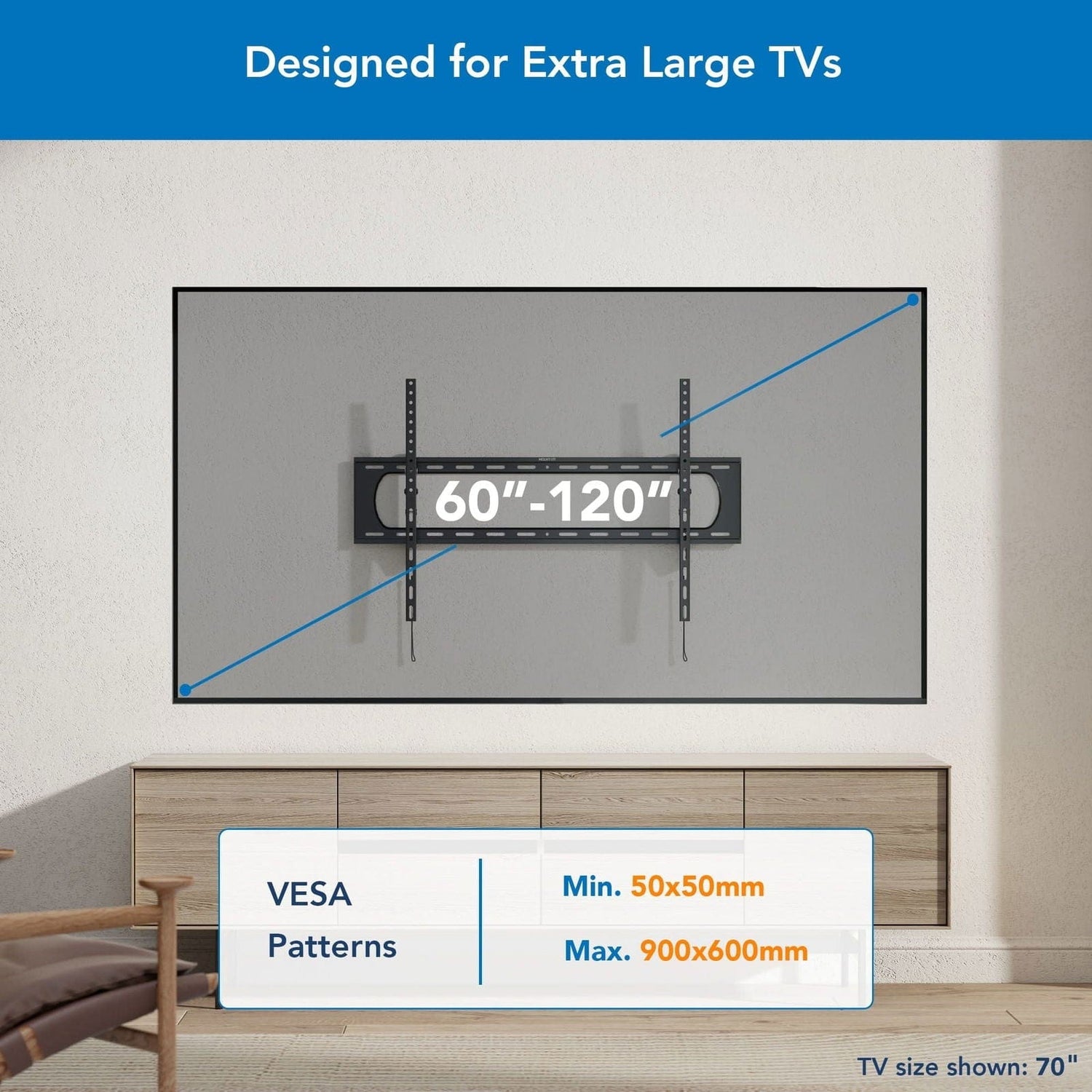

Compatible with VESA mounting patterns from 50×50 to 900×600 mm.
A practical choice for above-eye-level installs where glare is the primary problem to solve.

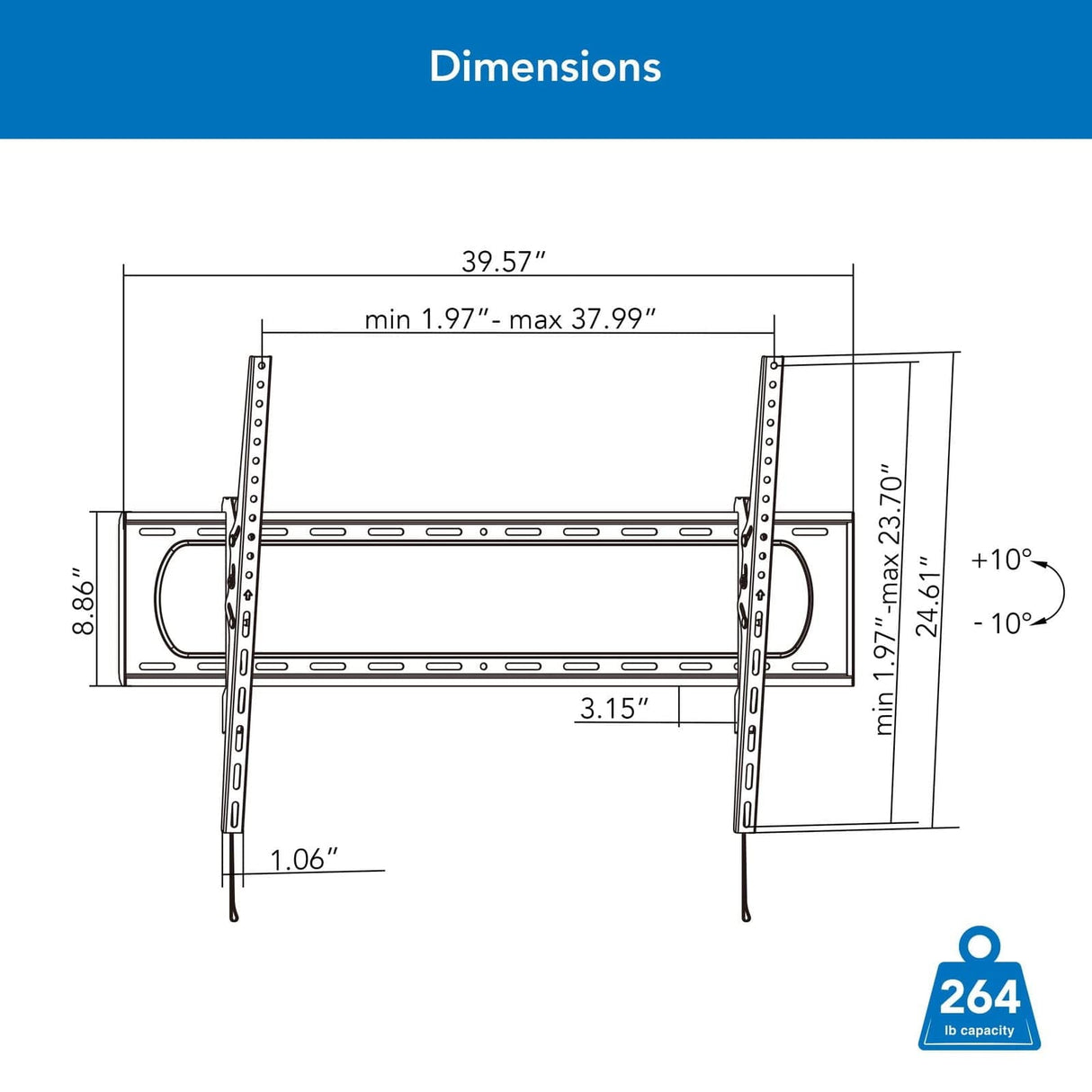

Specifications
- Product type: TV mount
- Mount type:Tilting
- Product weight: 10.5 lb

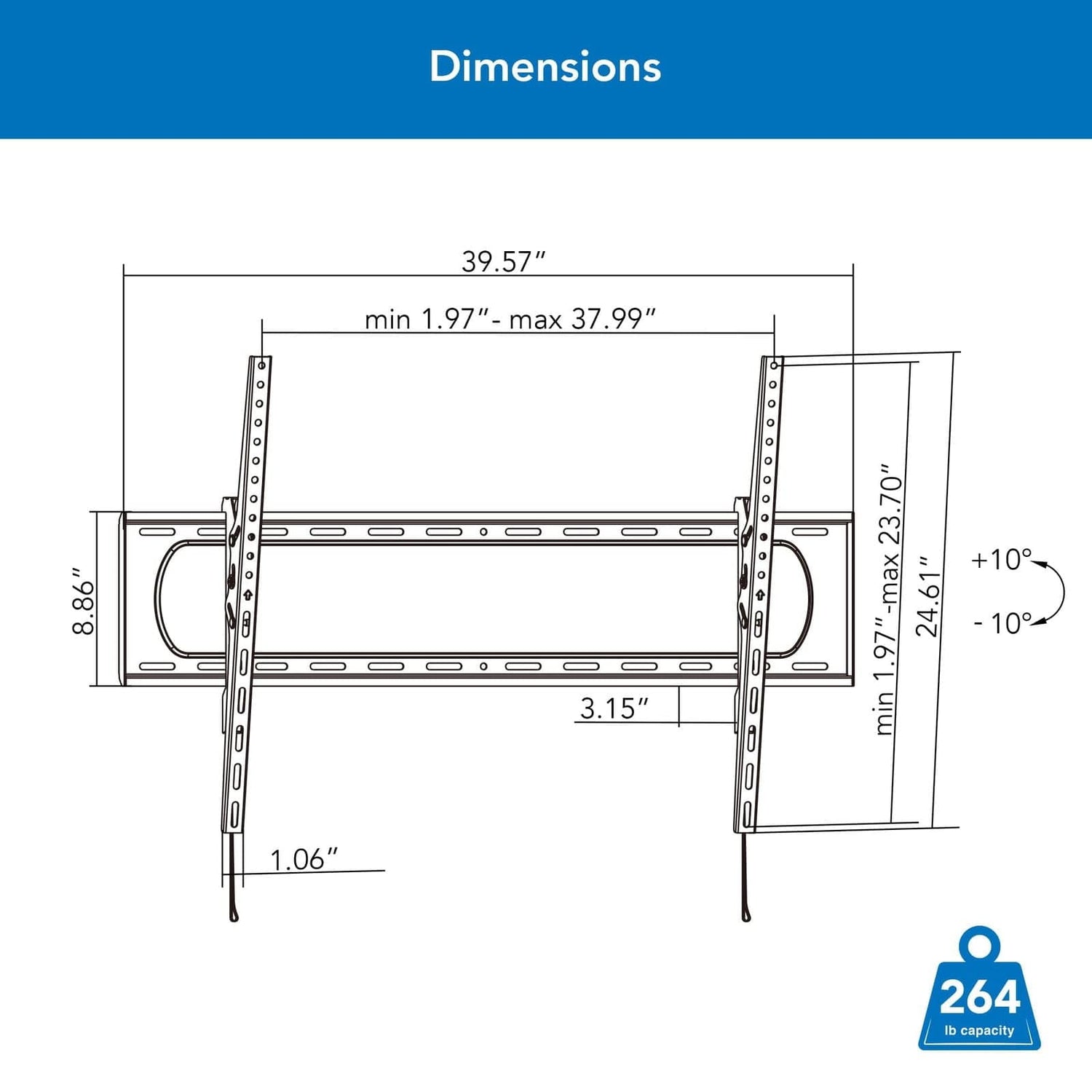

- Wall plate dimensions: 39.57×8.86 in
Holds screens
- Screen size range: 60 to 120 in
- VESA range: 50×50 to 900×600 mm

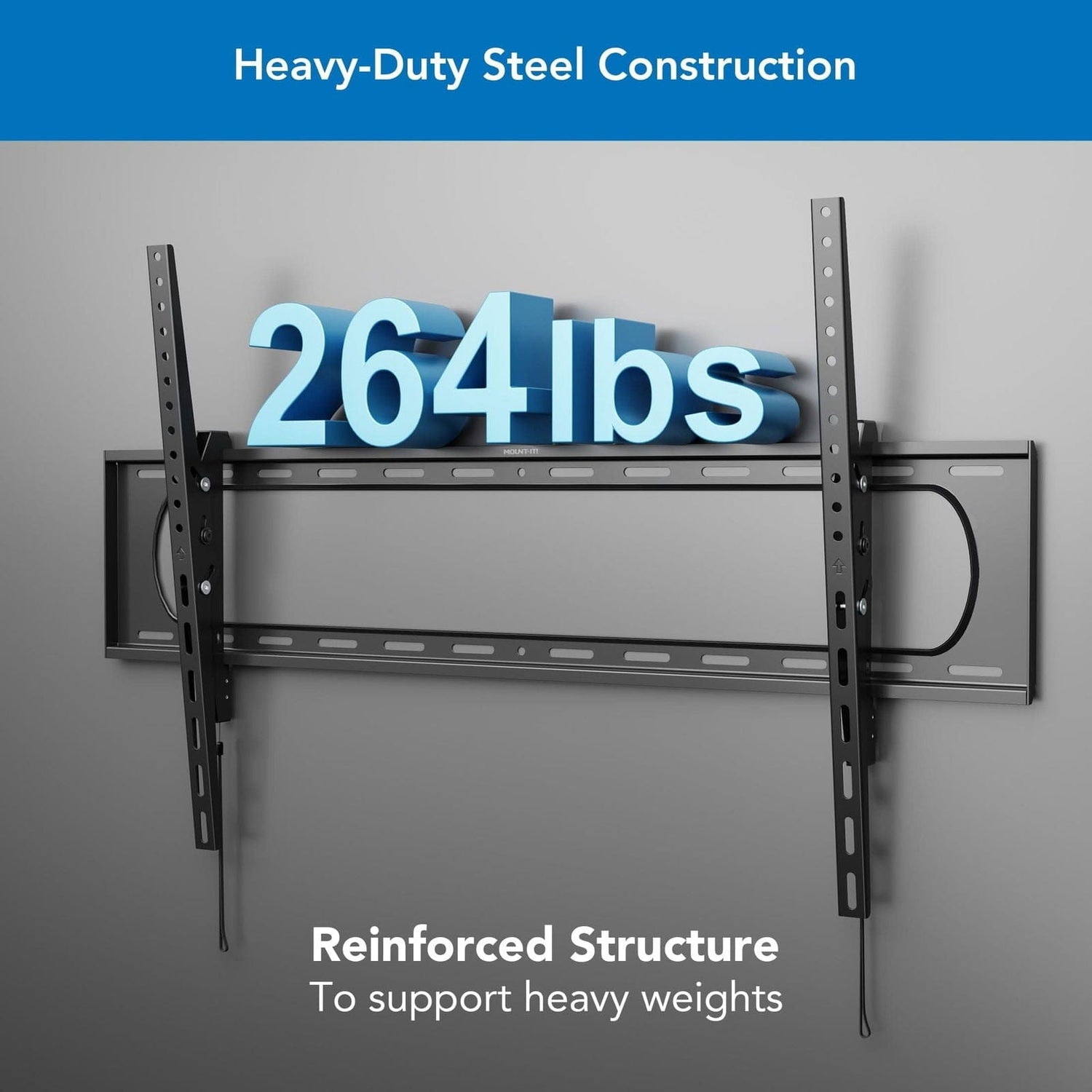

- Weight capacity: 264 lb
Movement
- Tilt:+10°and−10°
- Profile depth: 3.1 in
Installation
The Heavy Duty XXL Tilt TV Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes

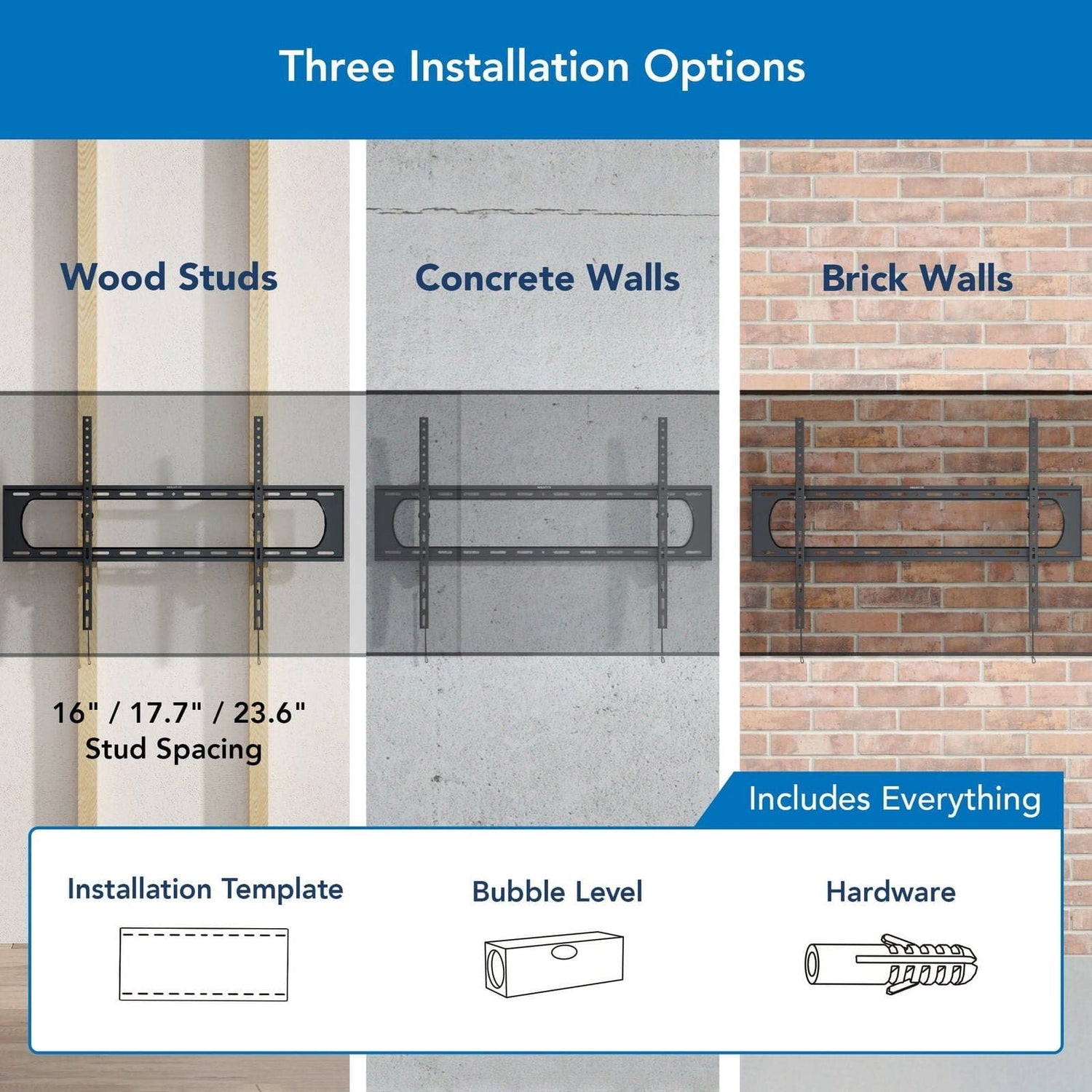

Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
