Mount-It! Motorized Fireplace TV Mount With Recessed Base for 42" to 80" TVs | holds up to 110 lbs | MI-302

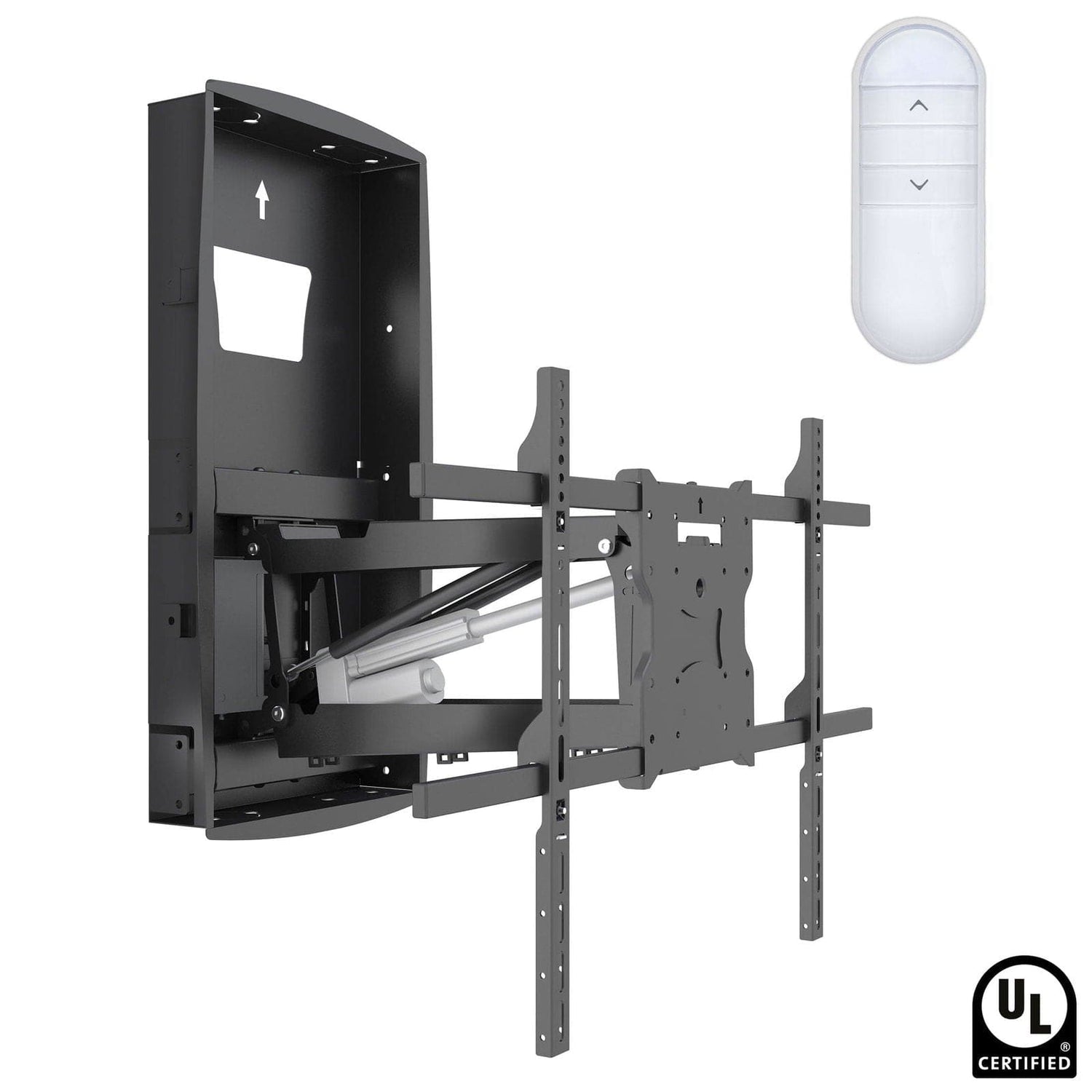

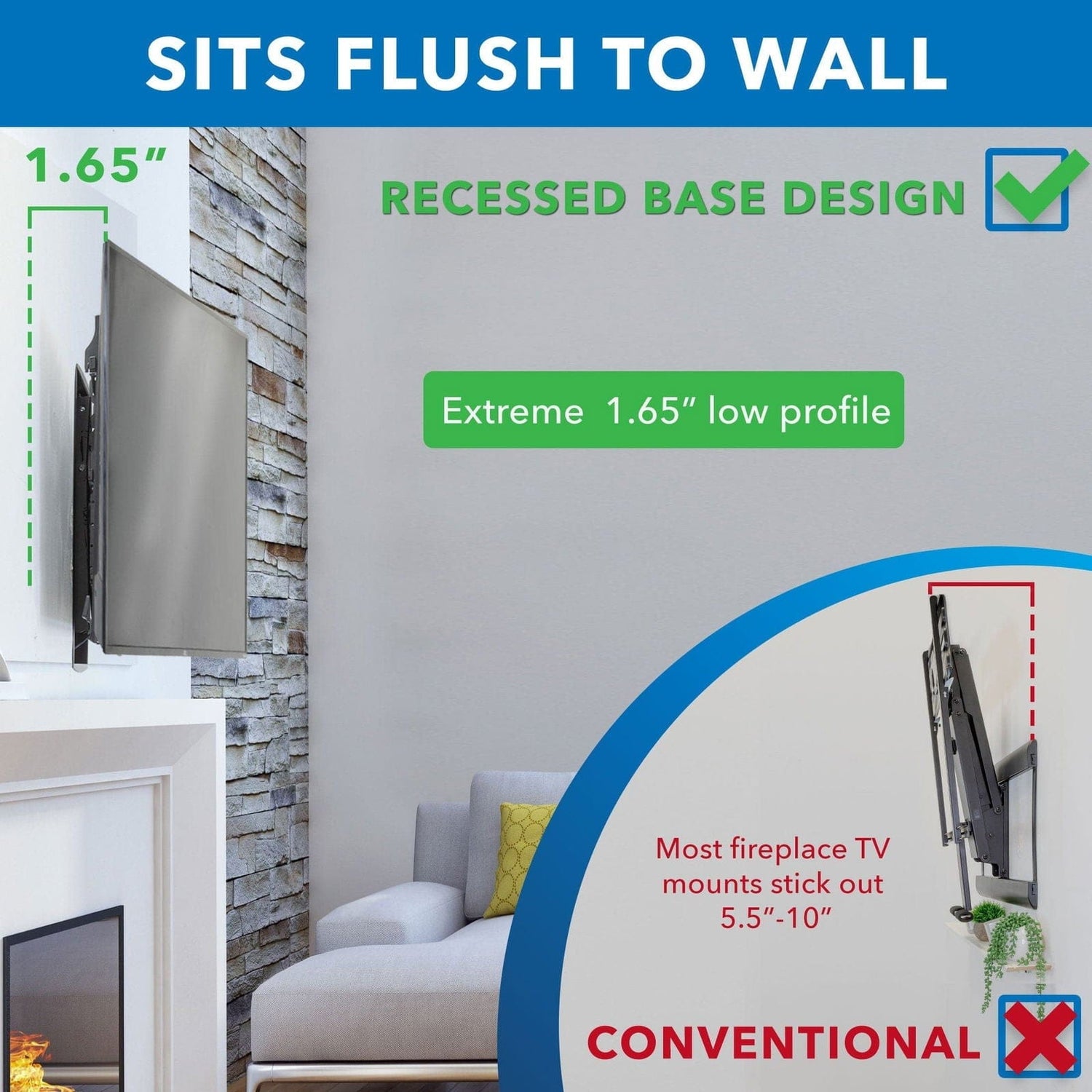

This high-quality motorized TV mount goes right above your fireplace and offers comfortable eye-level viewing. Conveniently bring your TV down using the remote control when it is time to watch your favorite show or sports event. Compared to conventional fireplace TV mounts, the recessed base design allows your TV to sit flush to the wall when in the upper position with an extremely low 1.65" profile. This mantel mount is compatible with TV sizes between 42" and 80" and up to 110 lbs in weight*. Smooth, remote controlled gas spring height adjustment of up to 24.8", 30° left and right manual swivel as well as a -5°/+10° tilt ensure you will have the perfect, glare-free viewing experience. Compatible with VESA patterns from 100x100 to 600x500.

*Please note that only TVs with screen size 60" and larger will fully cover the recessed box in the upper position. With TVs smaller than 60" a part of the box can be visible.

External power source (in-wall or on-wall) as well as 16" stud spacing required for installation. We recommend consulting a professional installer for the installation of this motorized recessed base TV mount. Suitable for use above decorative fireplaces with max. 100°F heat development.

• Compatible TV sizes: 42" to 80"

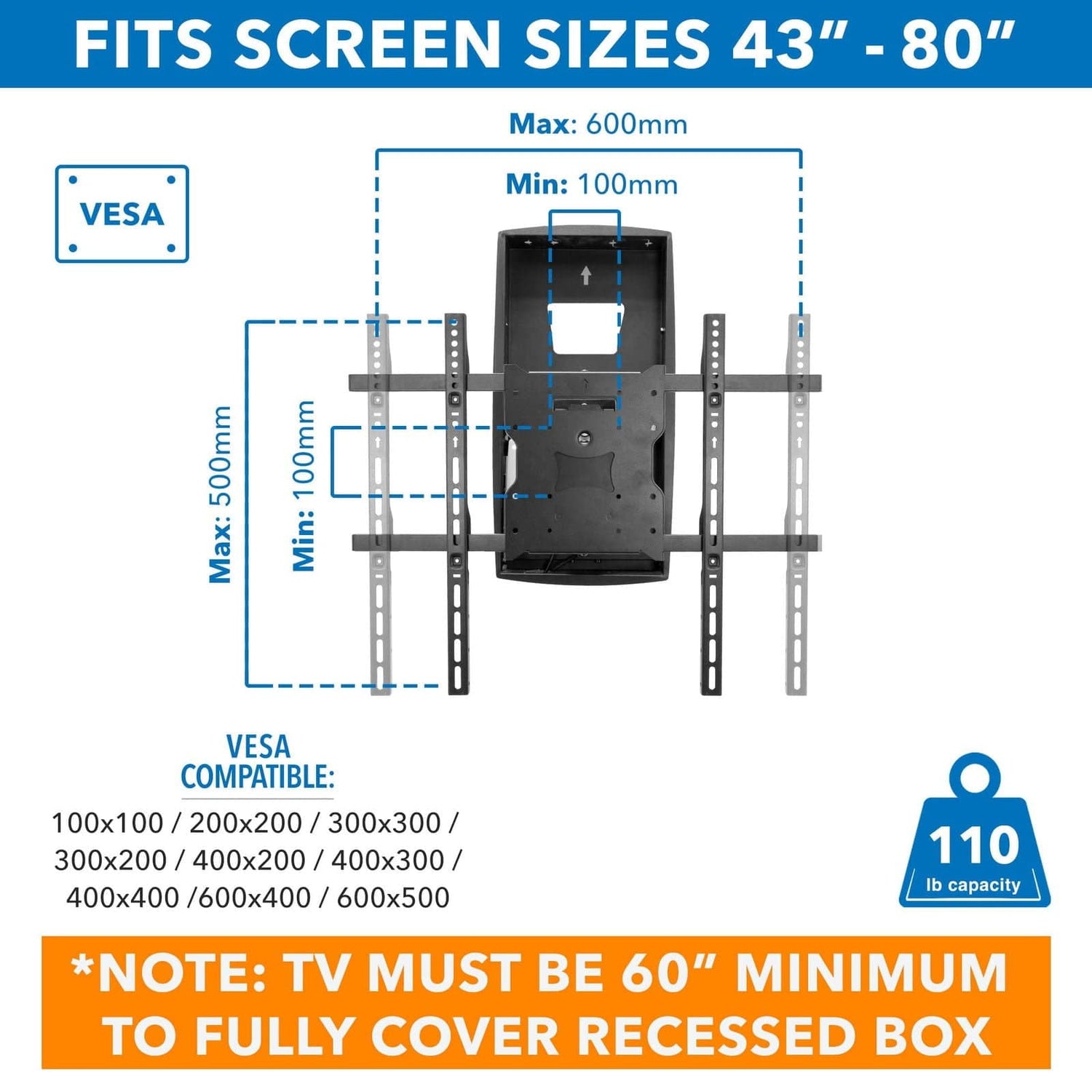

• VESA: 100x100, 200x200, 300x300, 300x200, 400x200, 400x300, 400x400, 600x400, 600x500
• Weight capacity: 110 lbs
• Height adjustment: 24.8"

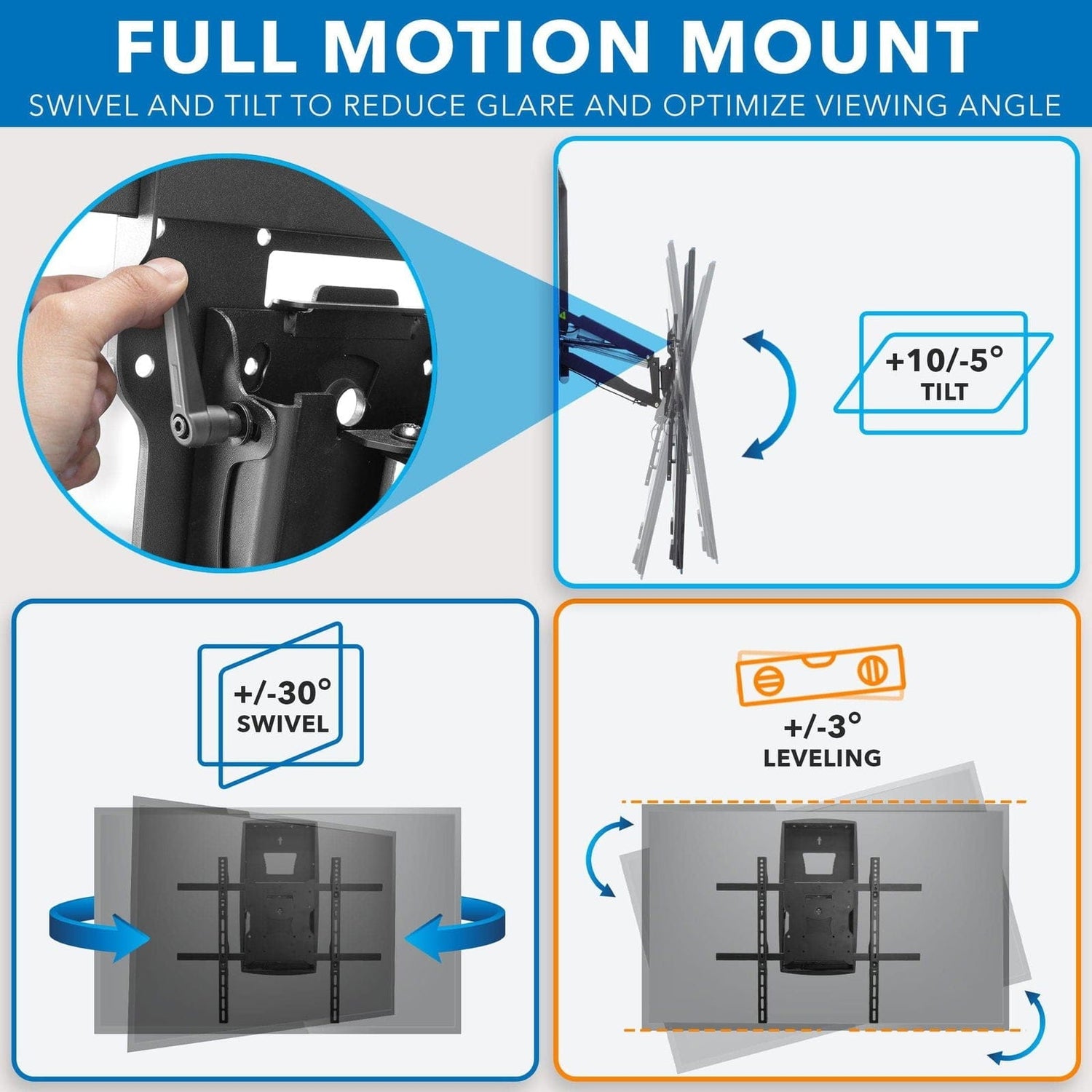

• Swivel: Up to 30° left and right
• Post-installation leveling: +/-3°
• Remote control type: RF
• Material: Steel
• Certification: UL certified (electric motor)

Installation requirements:

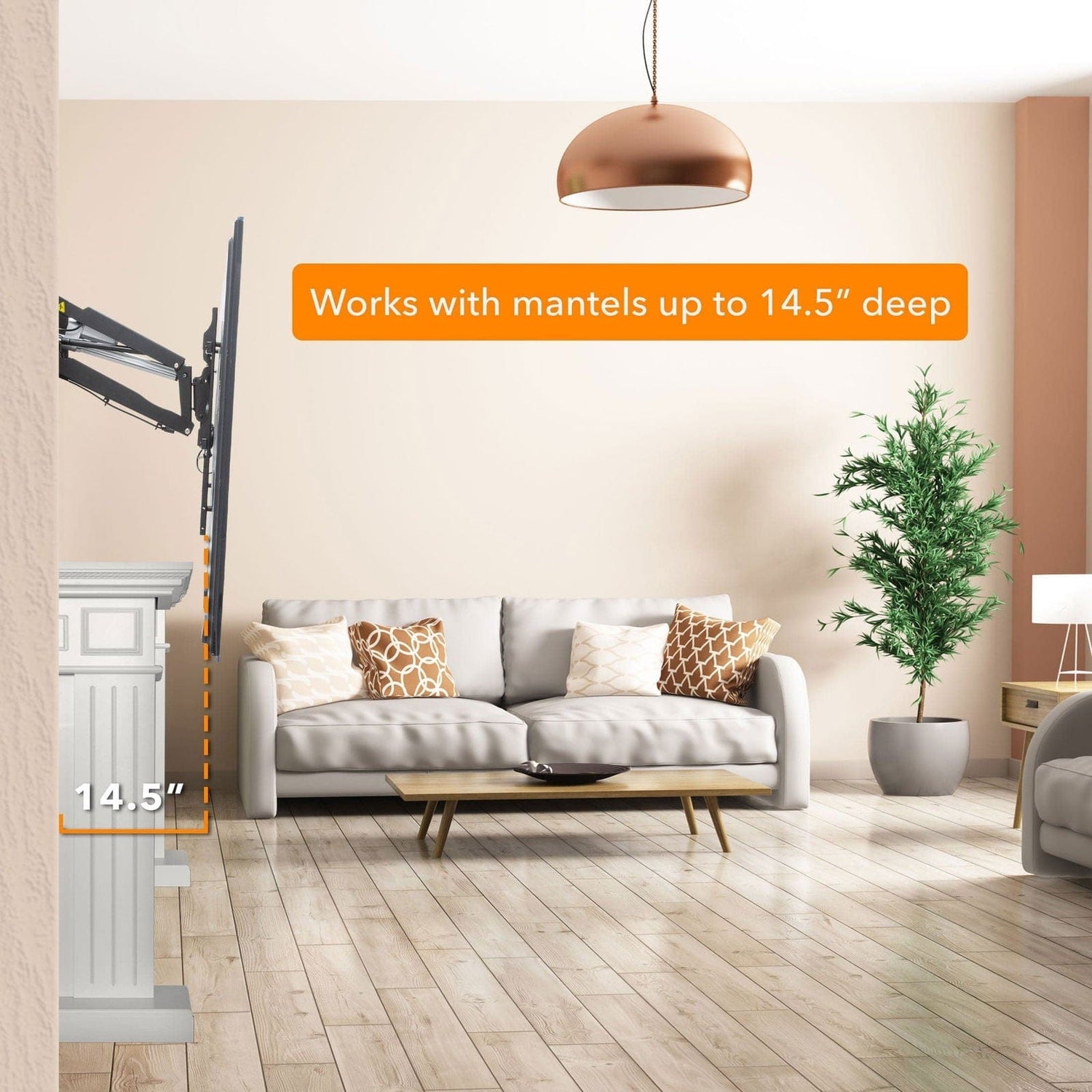

• Max. mantle depth: 14.5" for full tilt functionality; 15.75" not tilted

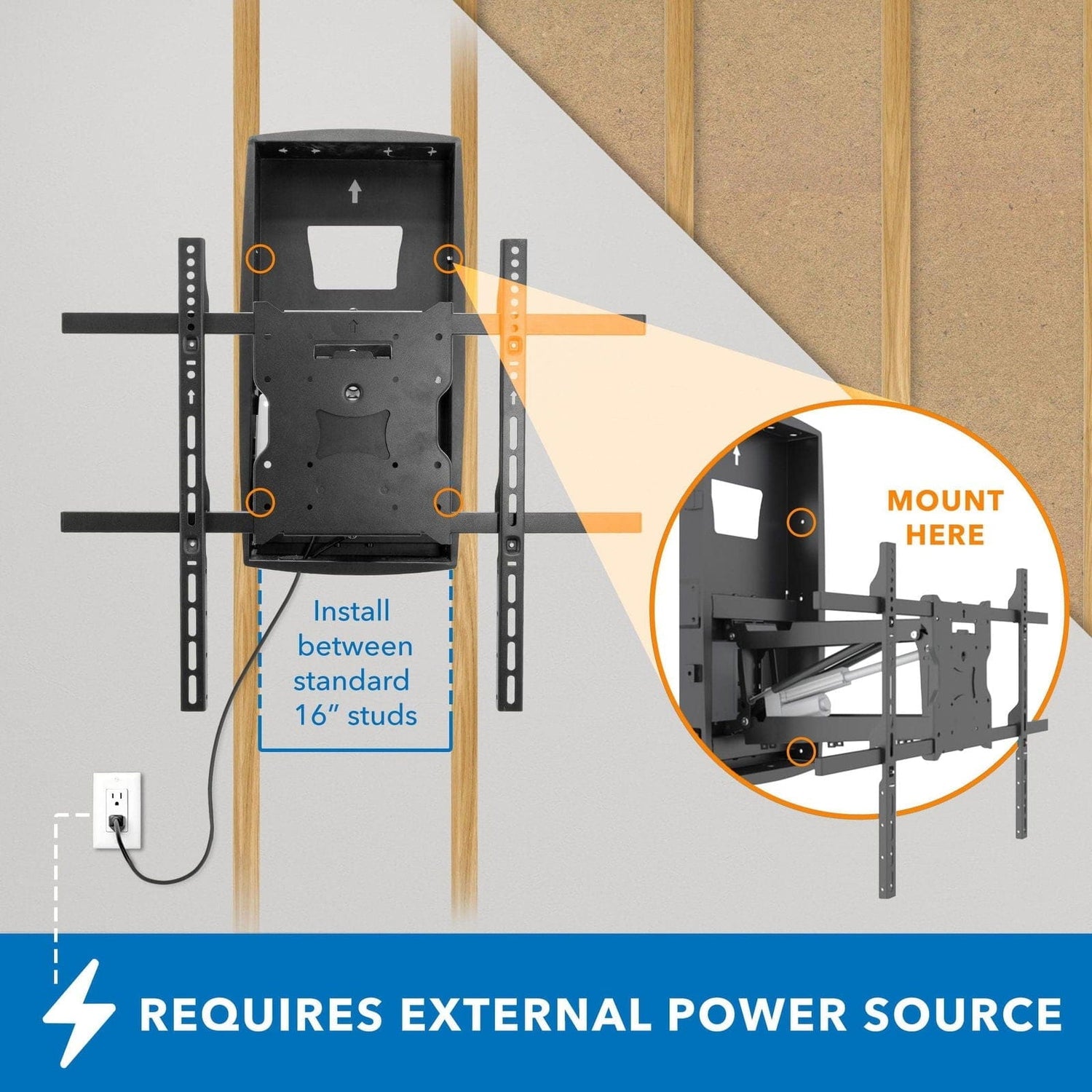

• Required stud spacing: 16"

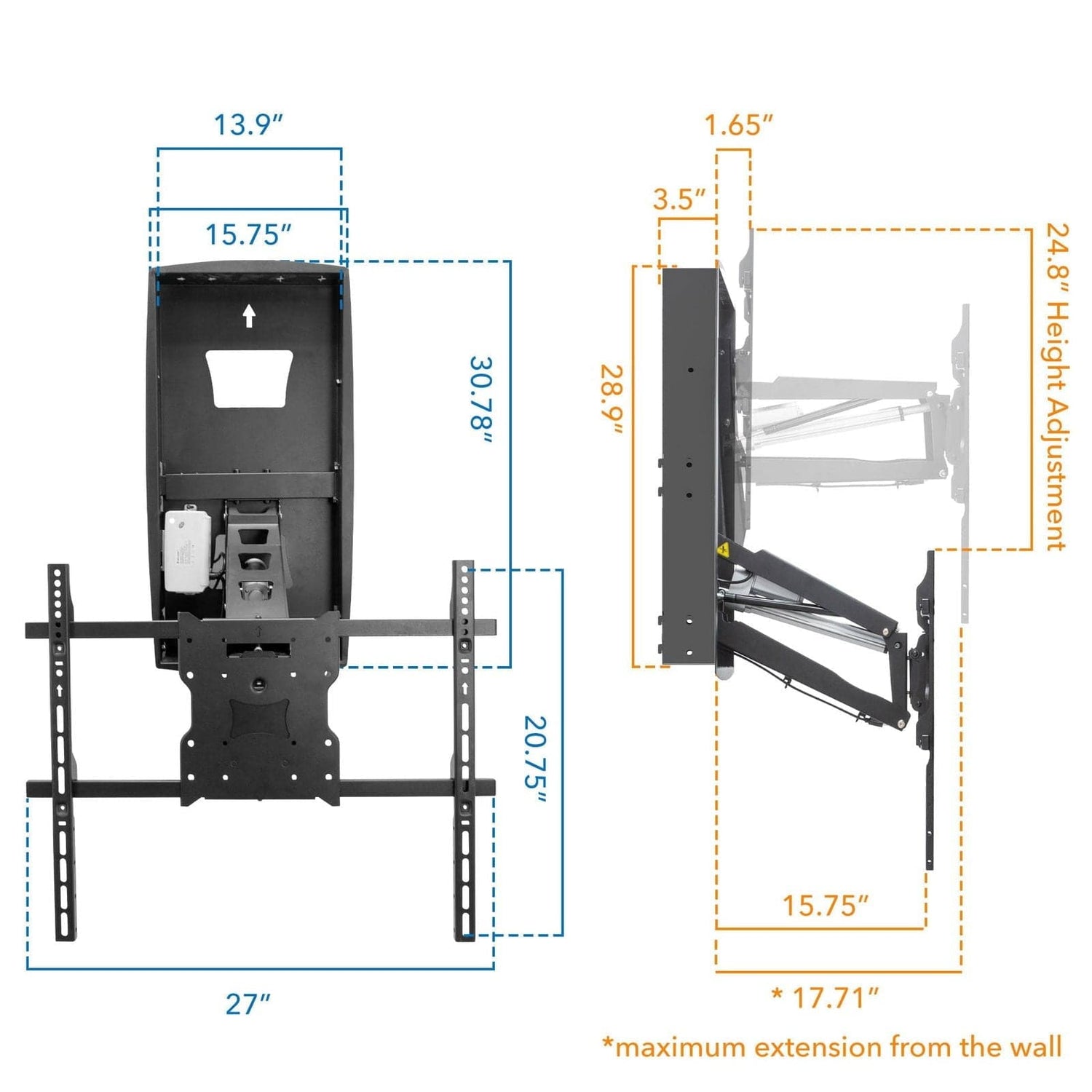

• Requires an opening inside the wall (29" H x 14.5 W x 3.5" D)

Not suitable to be mounted above primary heat sources; recommended for decorative fireplaces with max. 100° heat development only

Note: The deeper the mantle the higher the mount needs to be installed. Ensure you consider TV size, mantle depth and ceiling height prior to purchase
