Full Motion TV Wall Mount for 23" to 55" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend

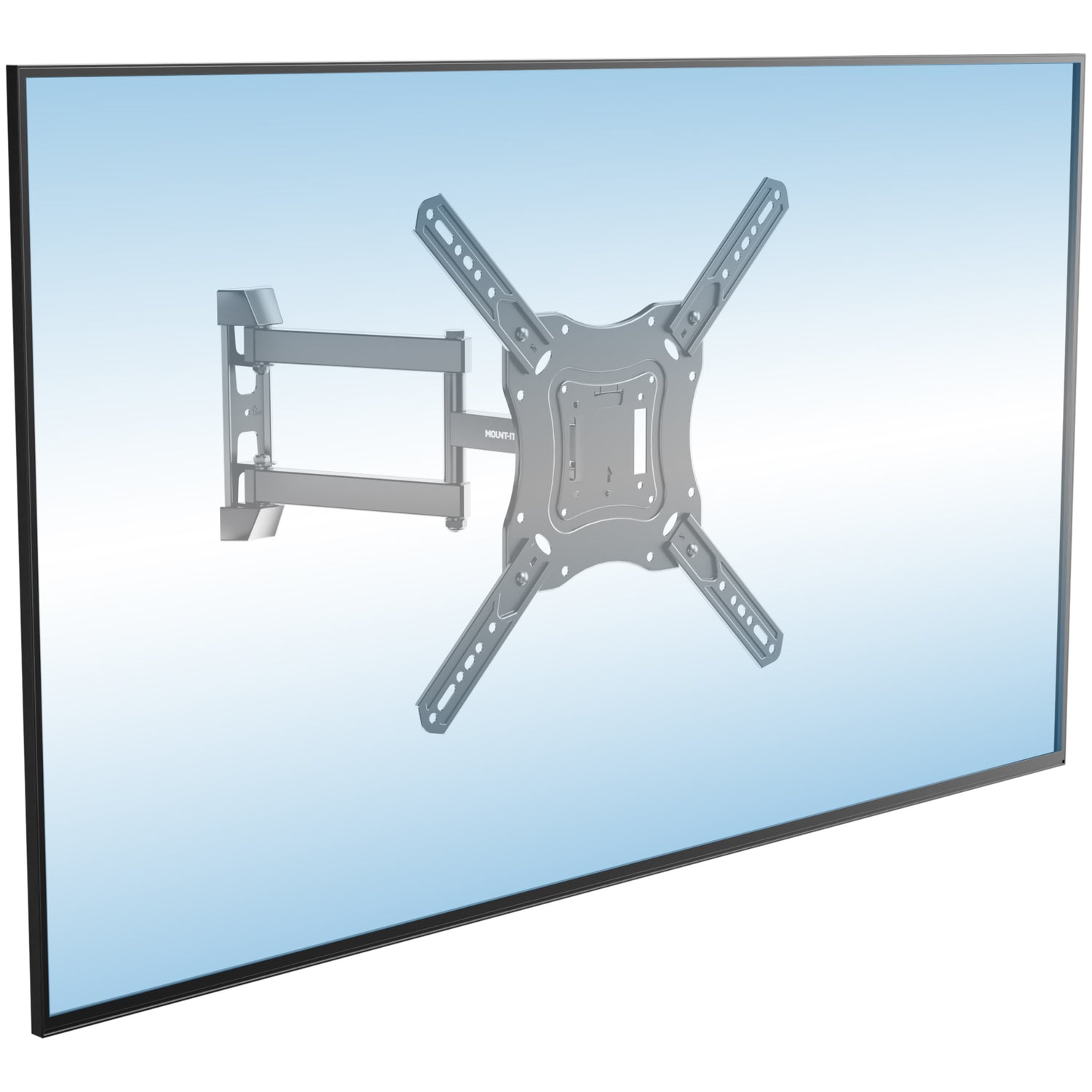

An articulating full motion TV wall mount for 23 to 55-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 66 lb with VESA 75×75 to 400×400 mm.
Swivels 180.0°, tilts +5.0°/−10.0°, and extends 2.16 to 15.6 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount
Features
Fits 23 to 55 inch flat screen TVs

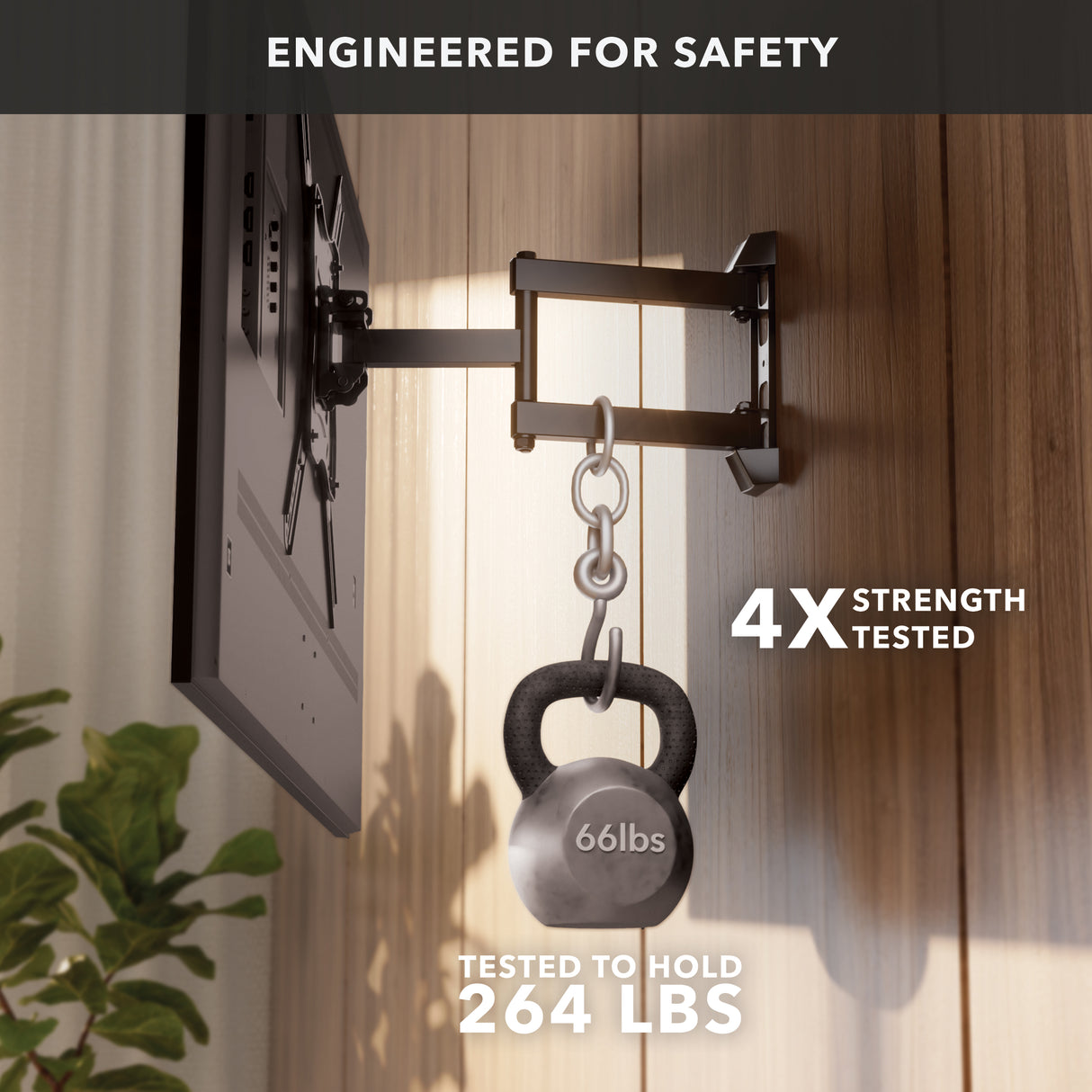

Weight rated up to 66 lb

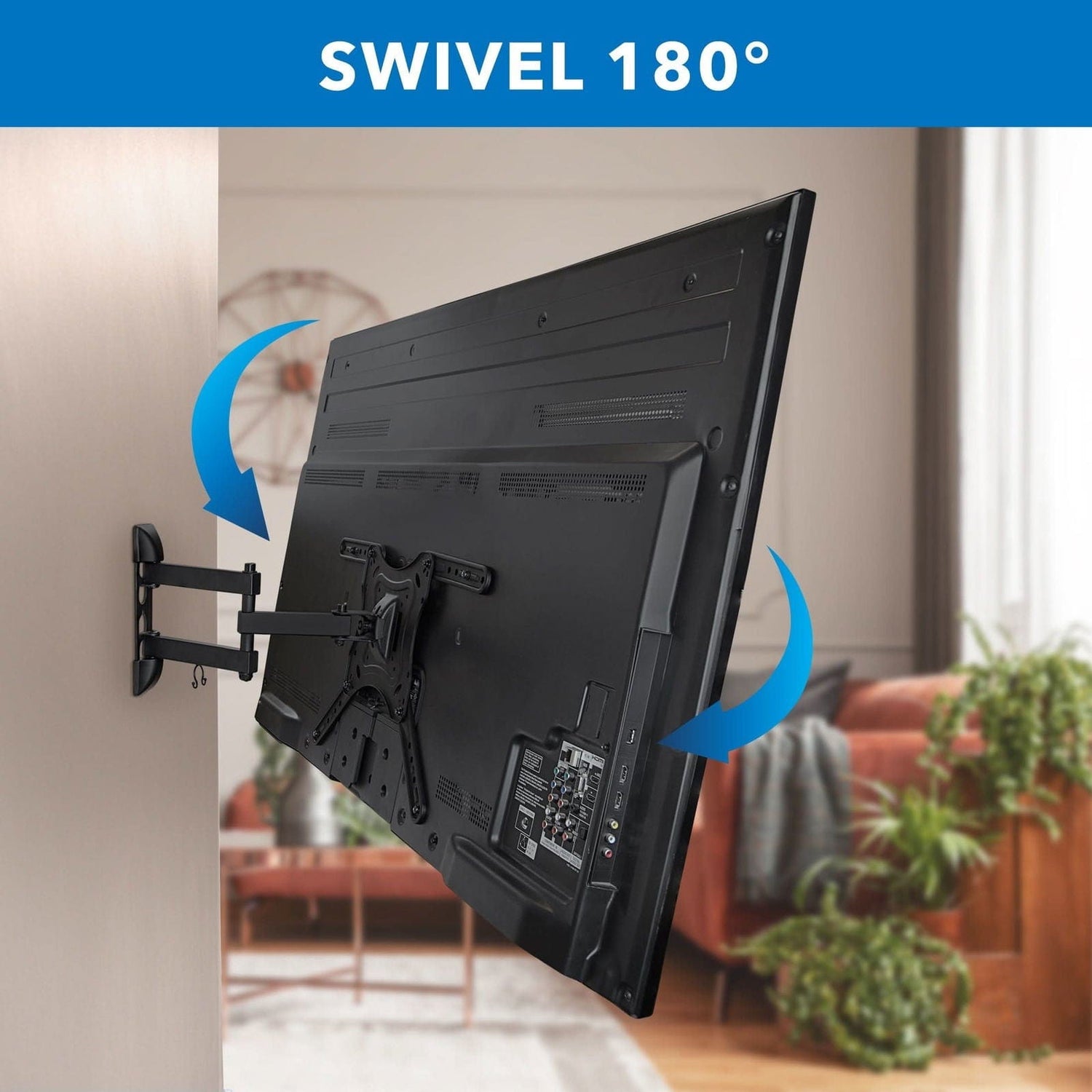

Swivels 180.0° (90.0° left and 90.0° right), aim the screen at any seat
Adjustable tilt +5.0° up / −10.0° down - reduce glare, improve your view
Extends 2.16 to 15.6 in from the wall for flexible positioning

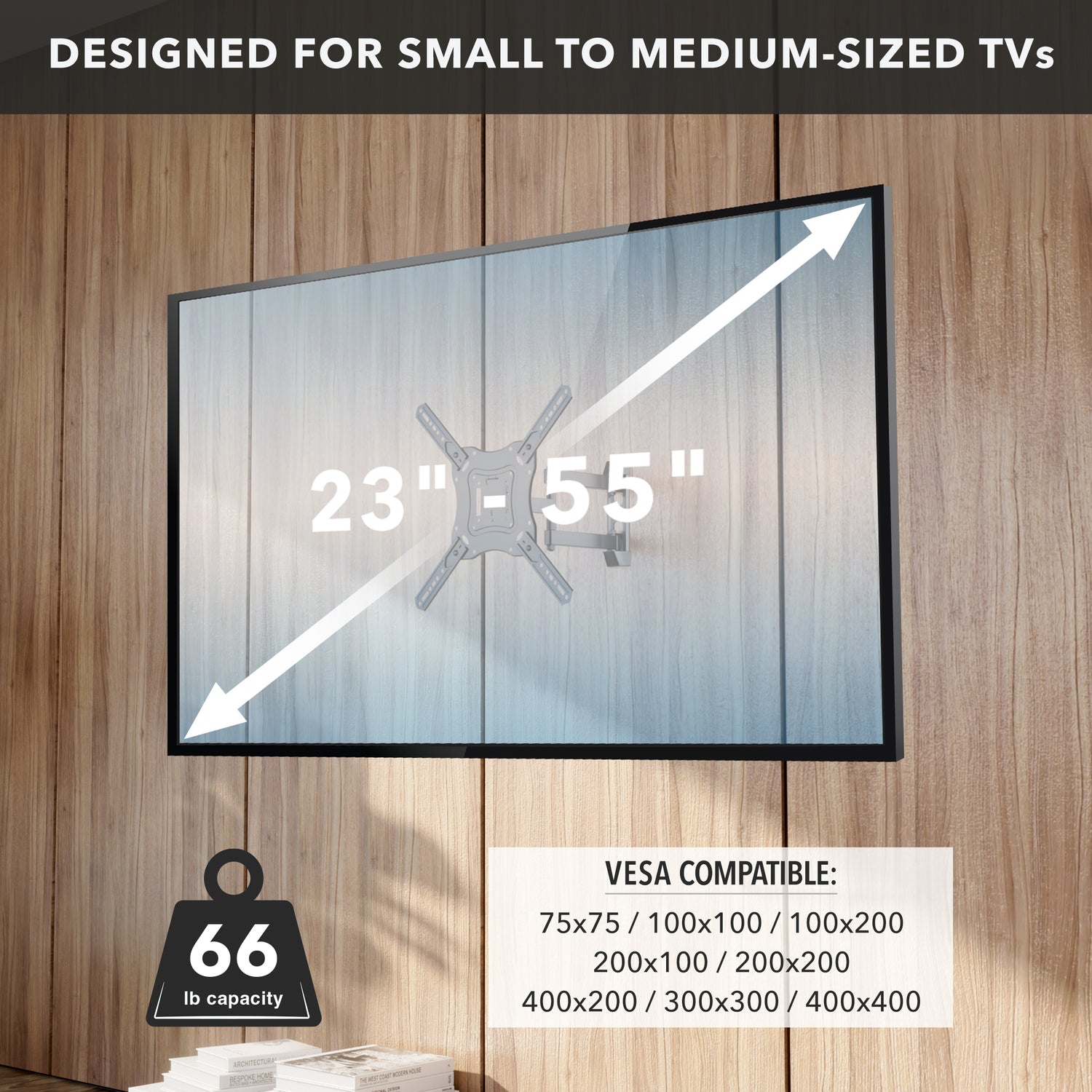

VESA 75×75 to 400×400 mm - fits most flat panel TV brands
Overview

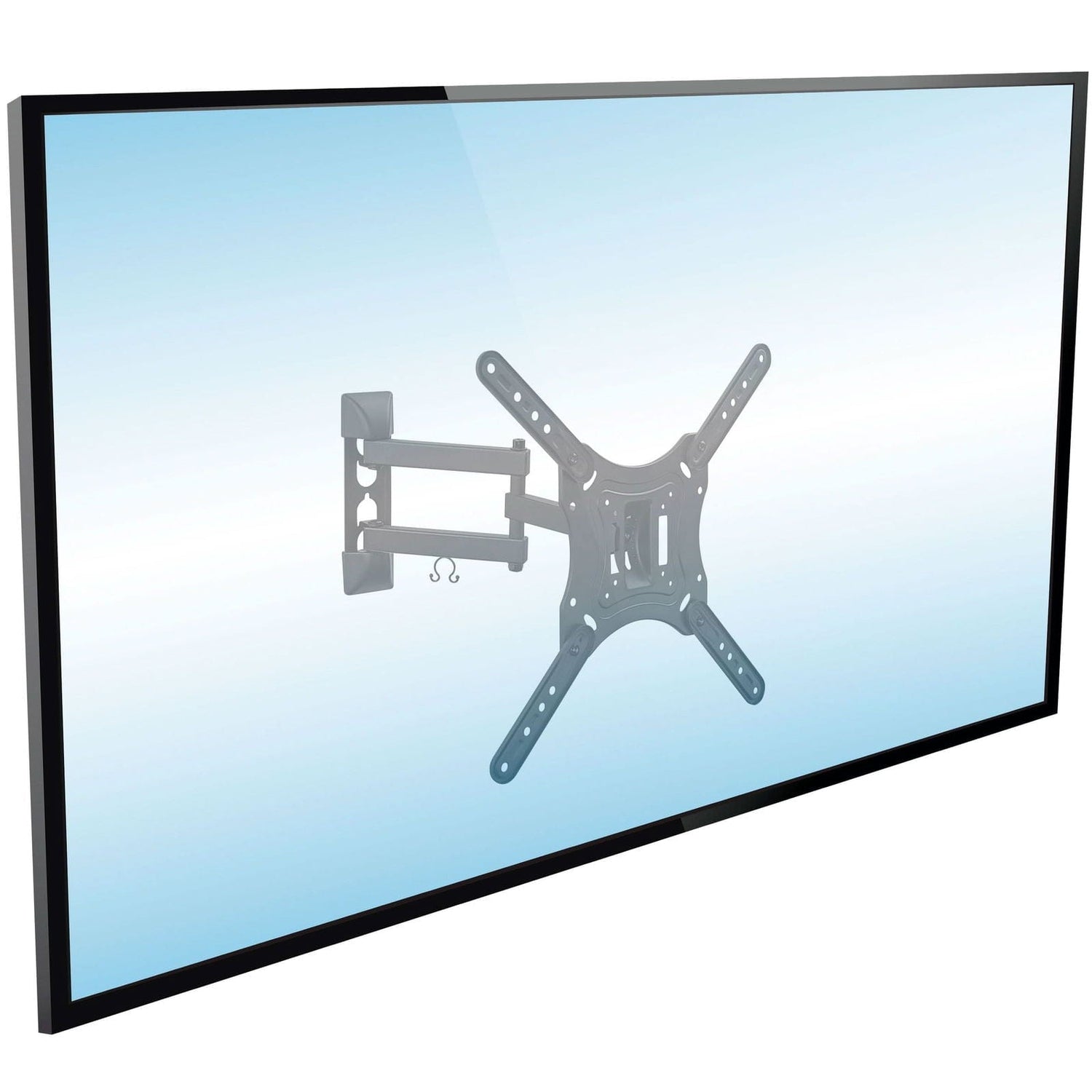

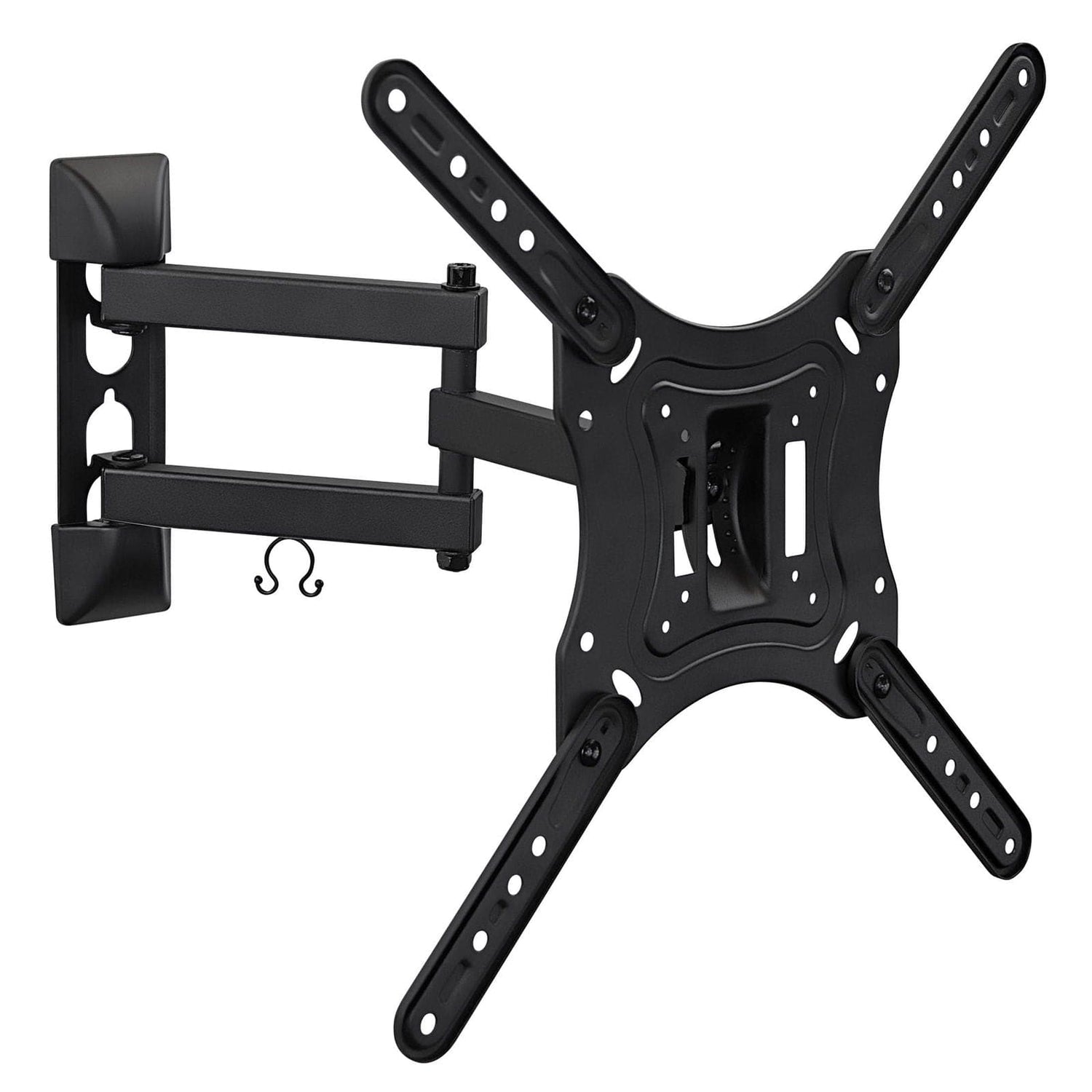

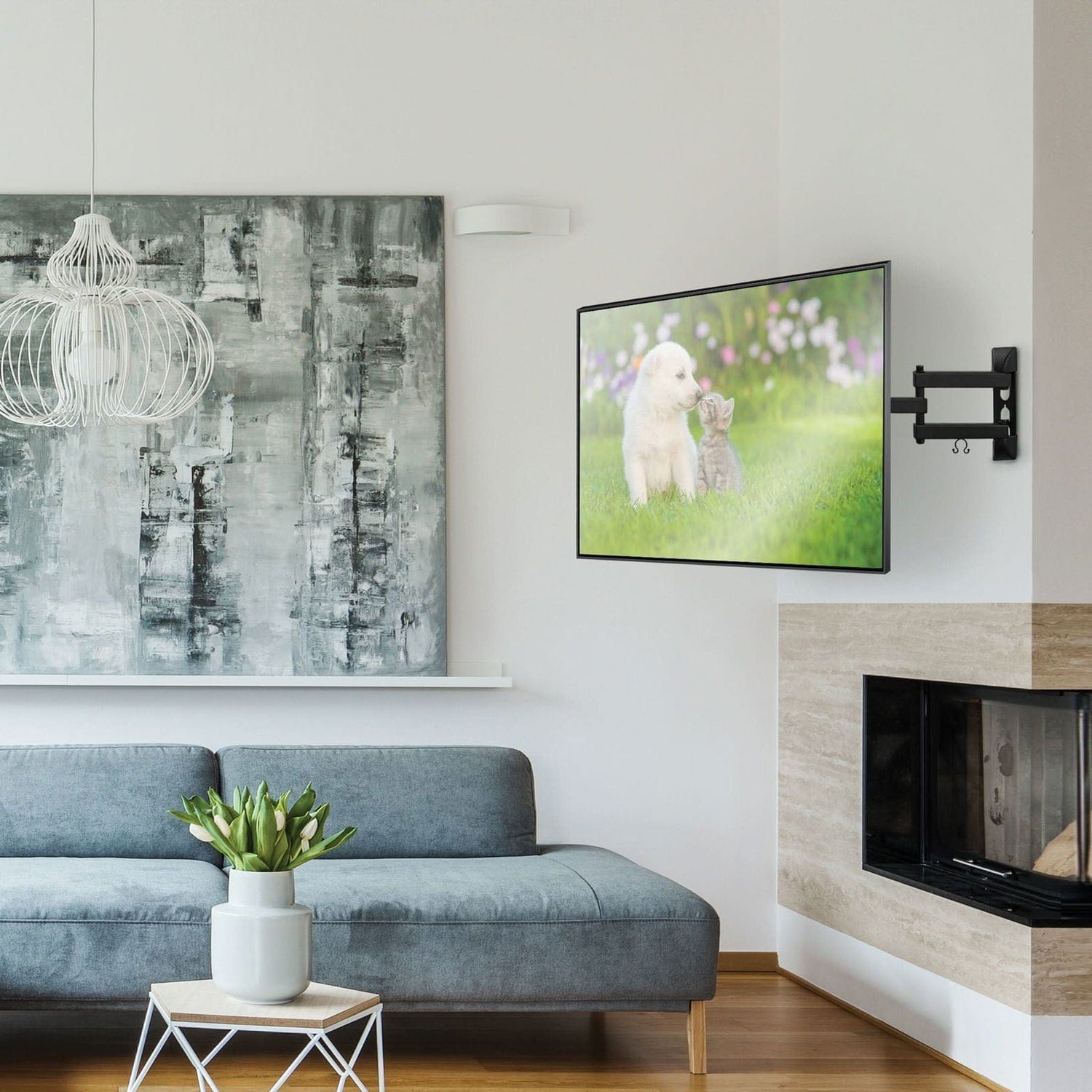

The Full Motion TV Wall Mount is a full motion (articulating) TV wall mount compatible with 23 to 55-inch televisions and rated to hold up to 66 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.

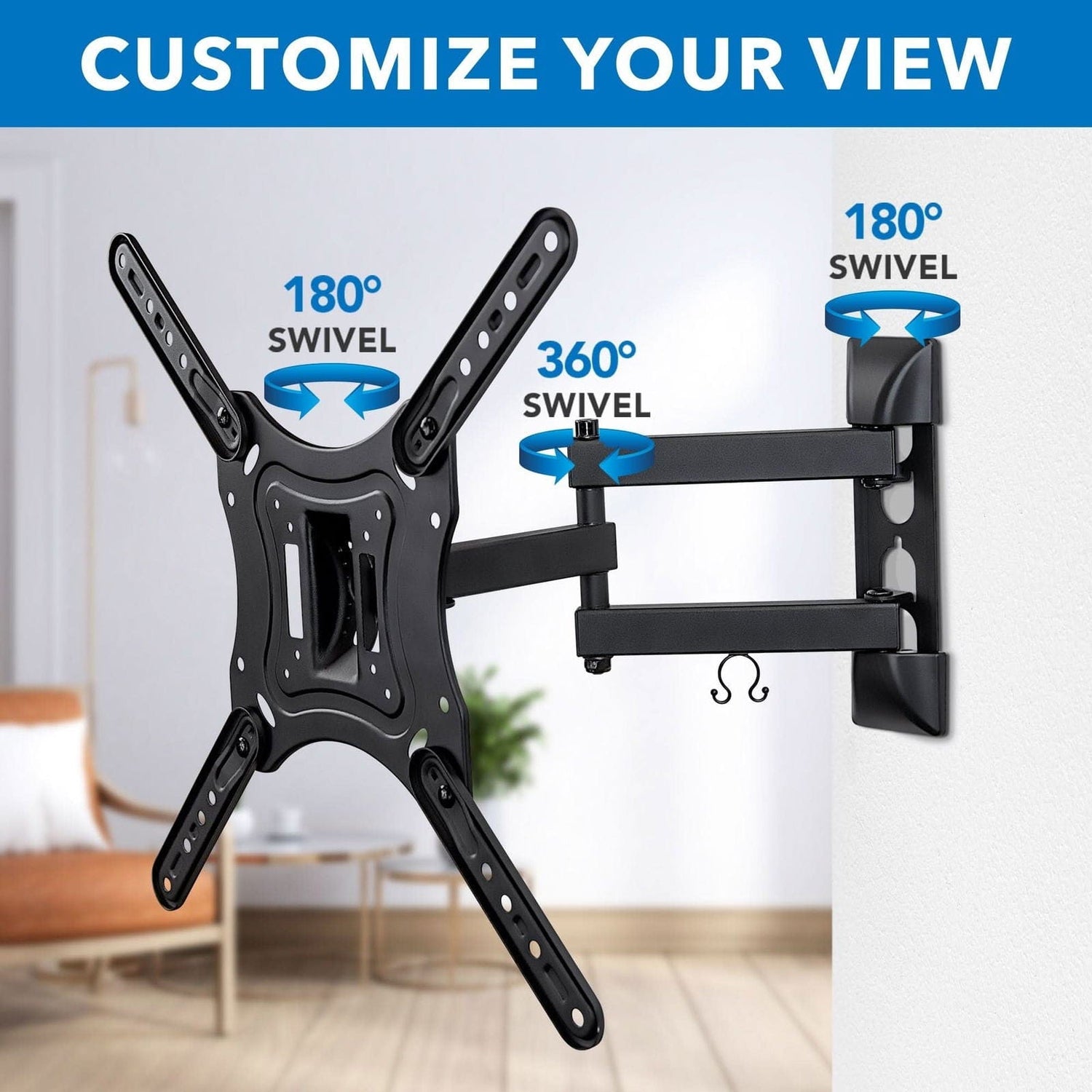

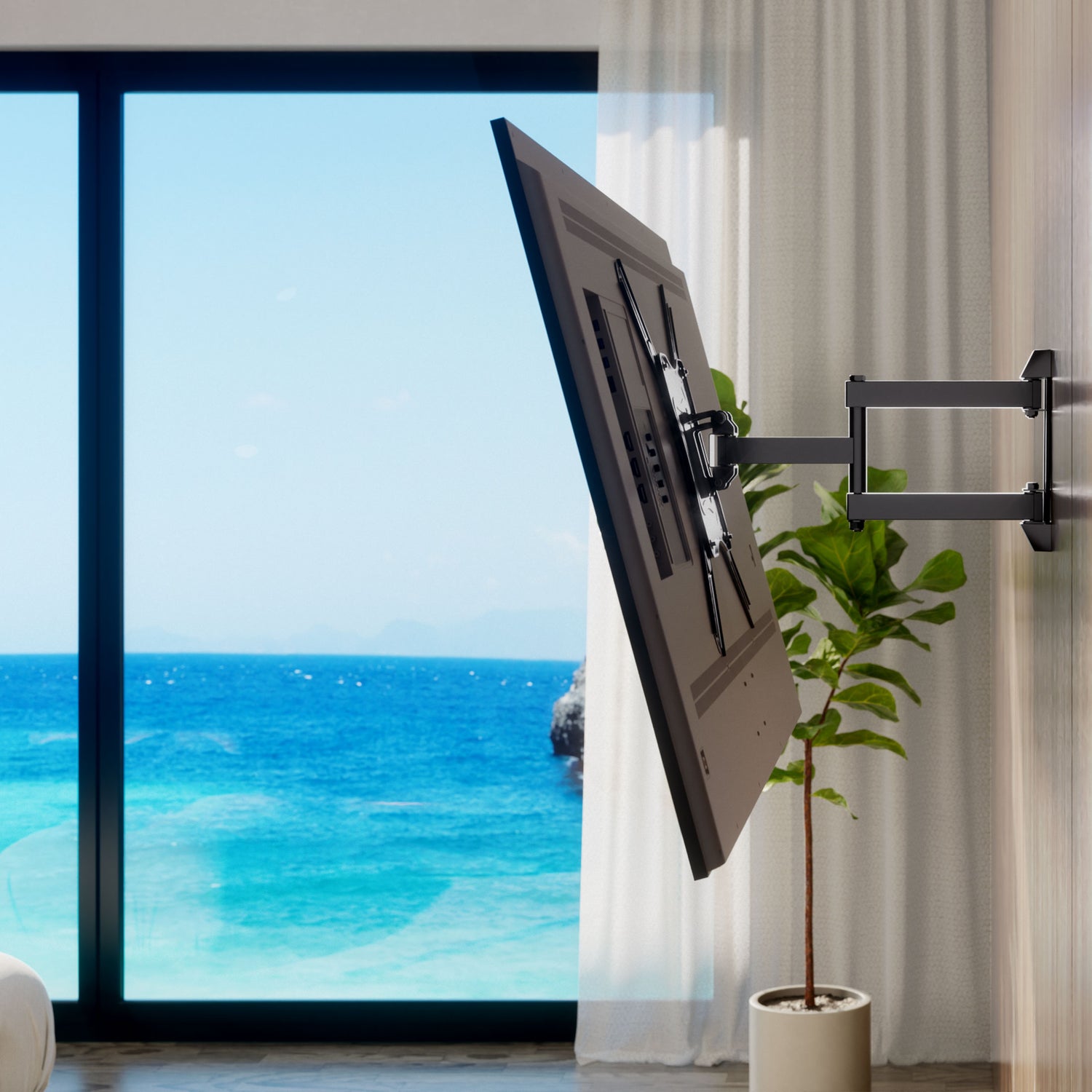

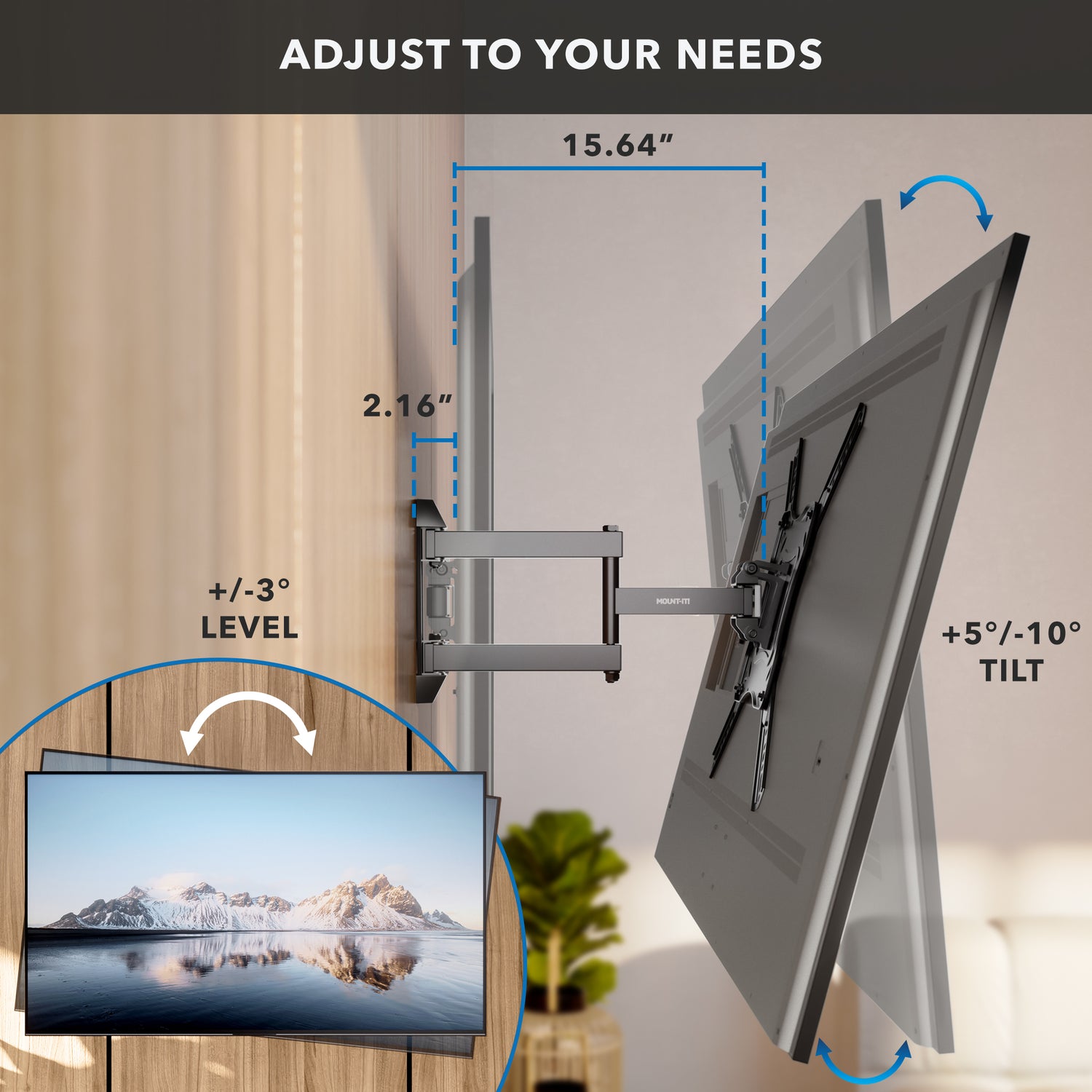

Swivels 180° (90° left and 90° right), tilt +5°/−10°, and extends 2.16 to 15.6 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 75×75 to 400×400 mm.
A practical choice for large living rooms or any setup where the optimal viewing position isn't directly in front of the wall.
Specifications
- SKU: MI-4110
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 5.0 lb

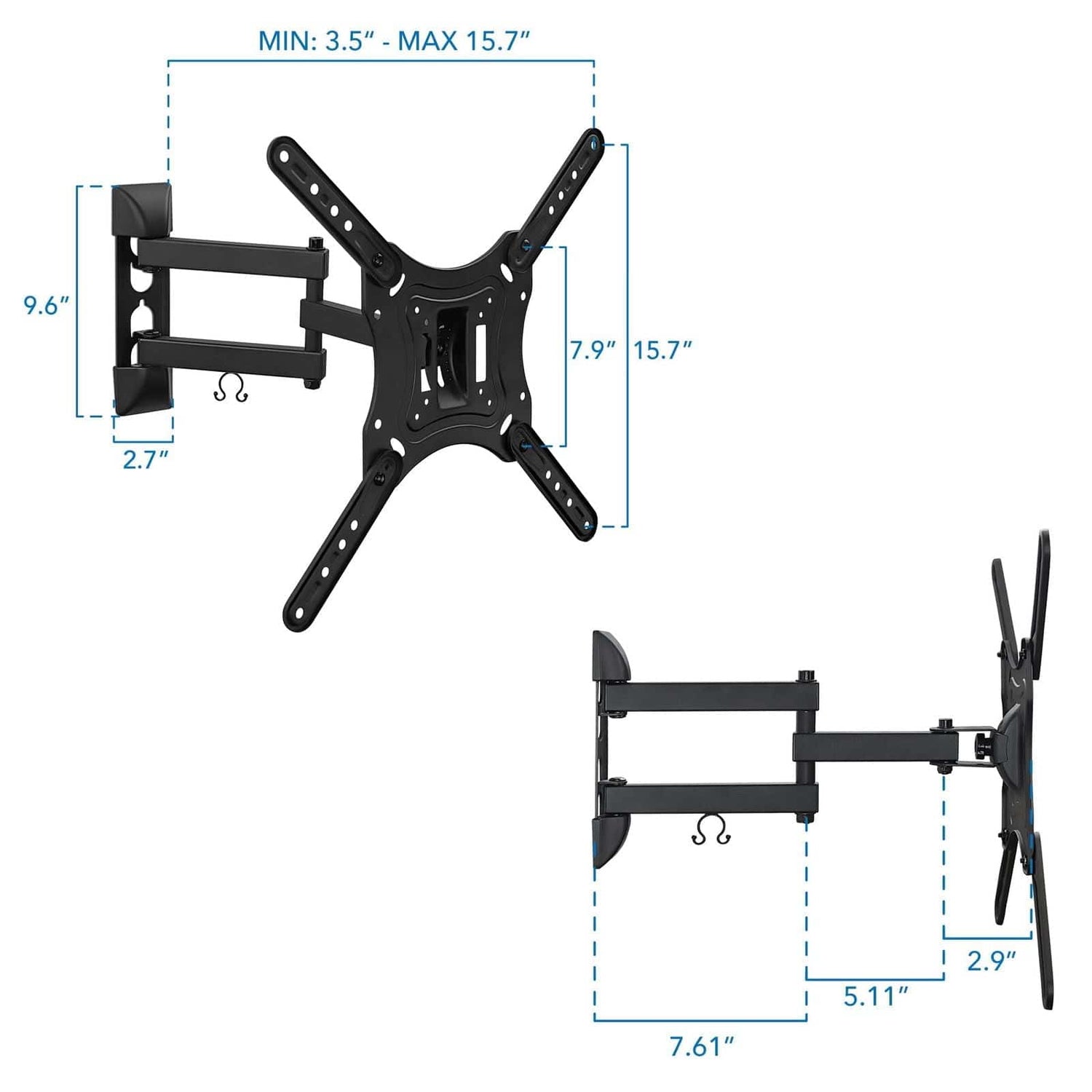

- Wall plate dimensions: 2.6×8.9 in
Holds screens

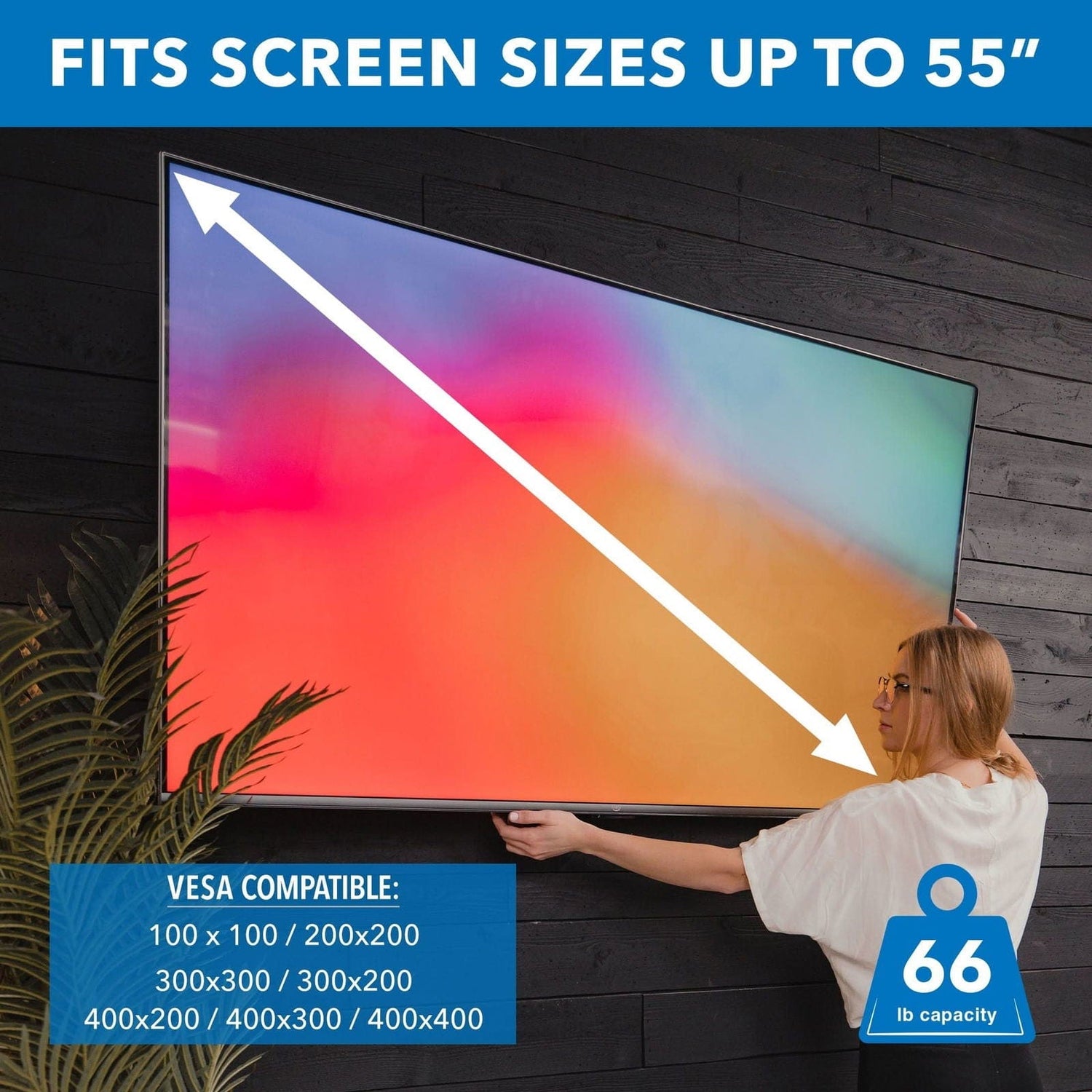

- Screen size range: 23 to 55 in
- VESA range: 75×75 to 400×400 mm
- Weight capacity: 66 lb
Movement
- Swivel: 180° (90° left and 90° right)
- Tilt:+5°and−10°

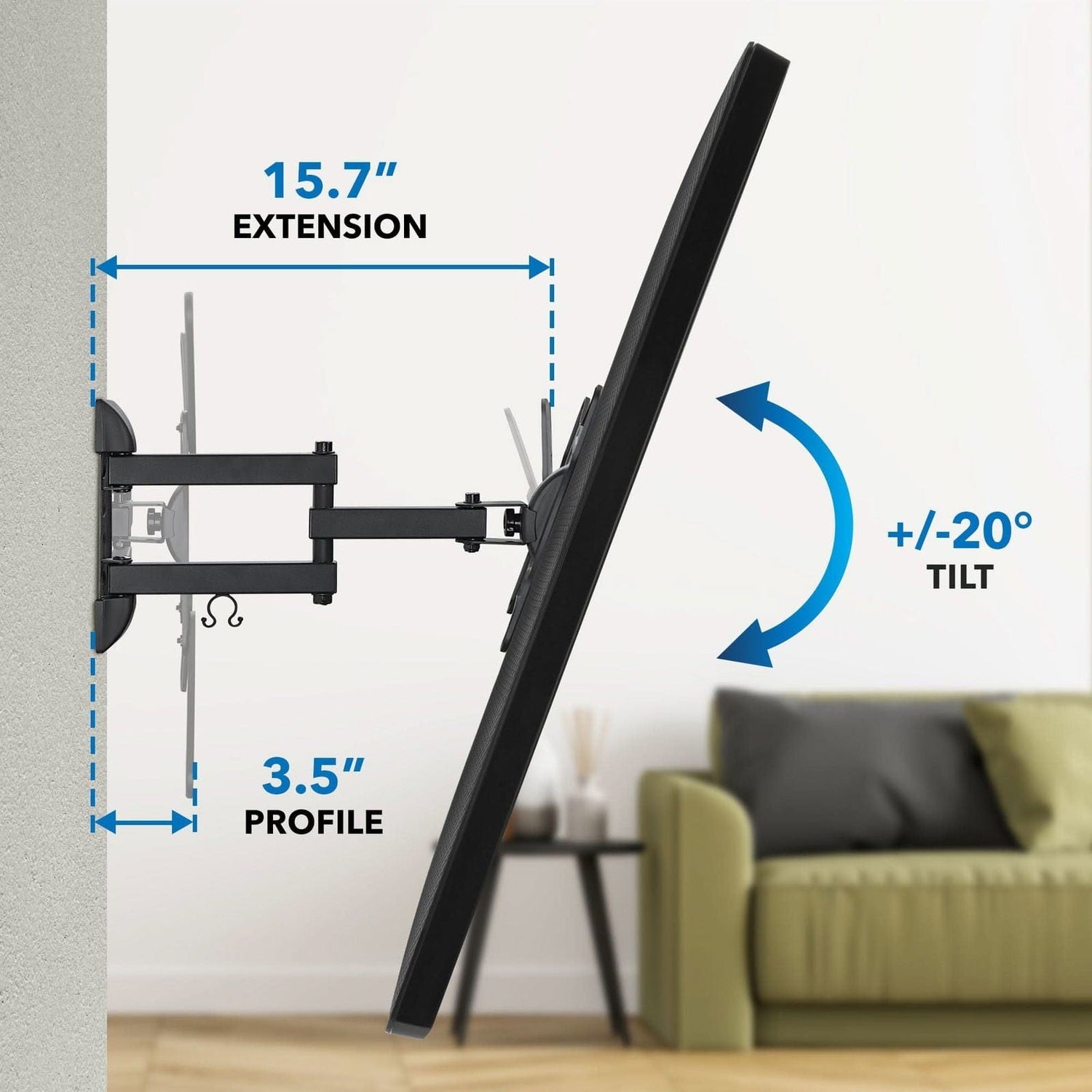

- Extension depth: 2.16 to 15.6 in
Installation
The Full Motion TV Wall Mount is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes

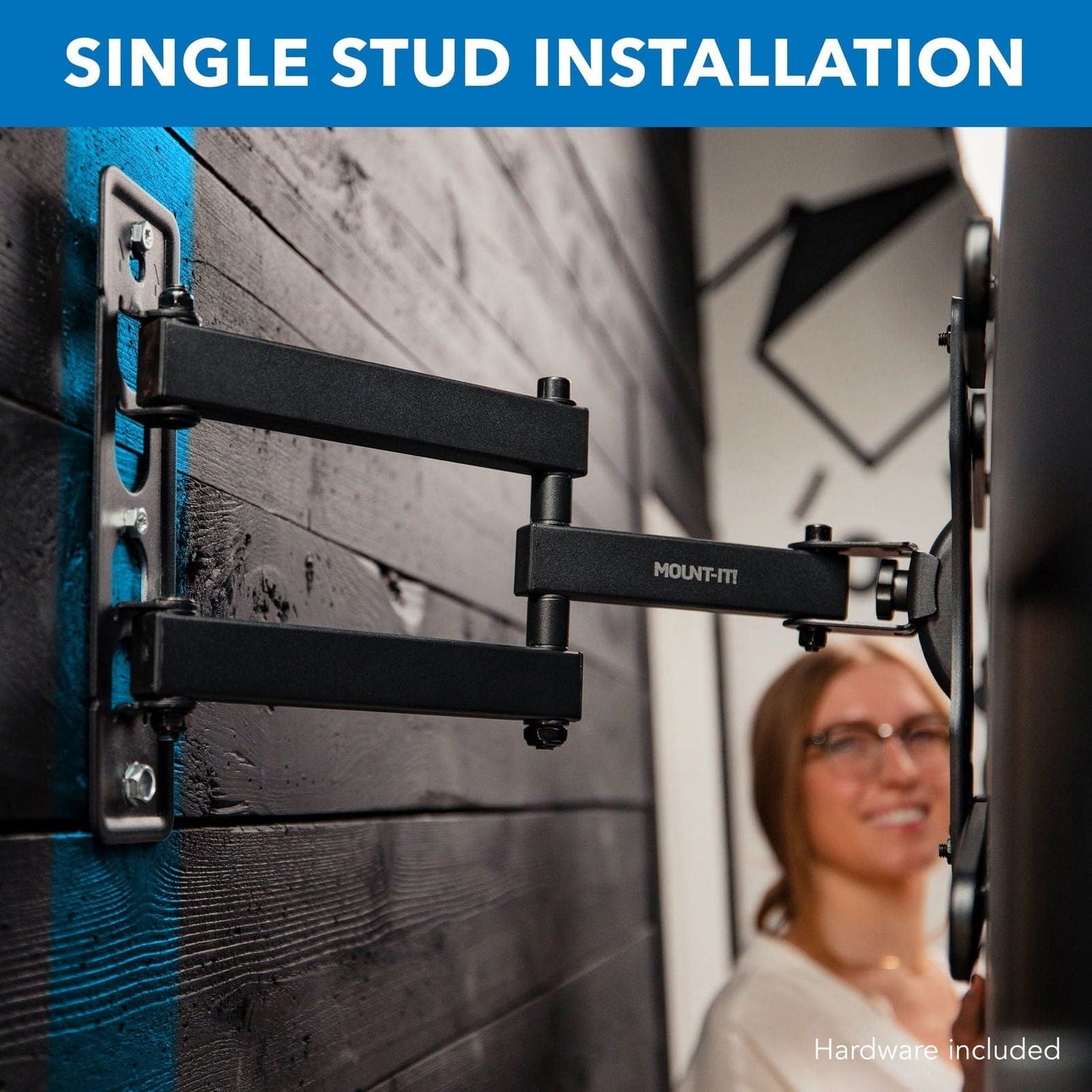

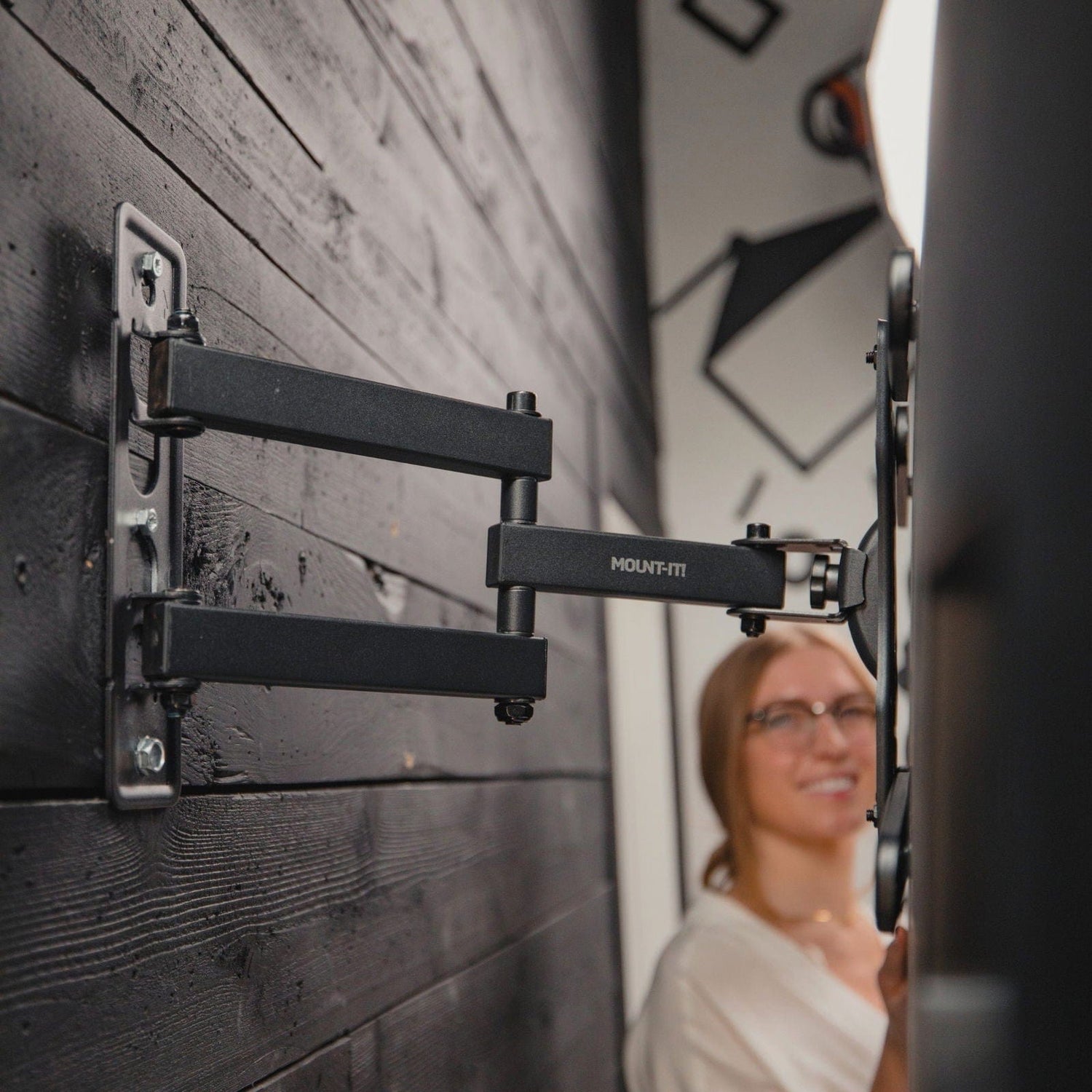

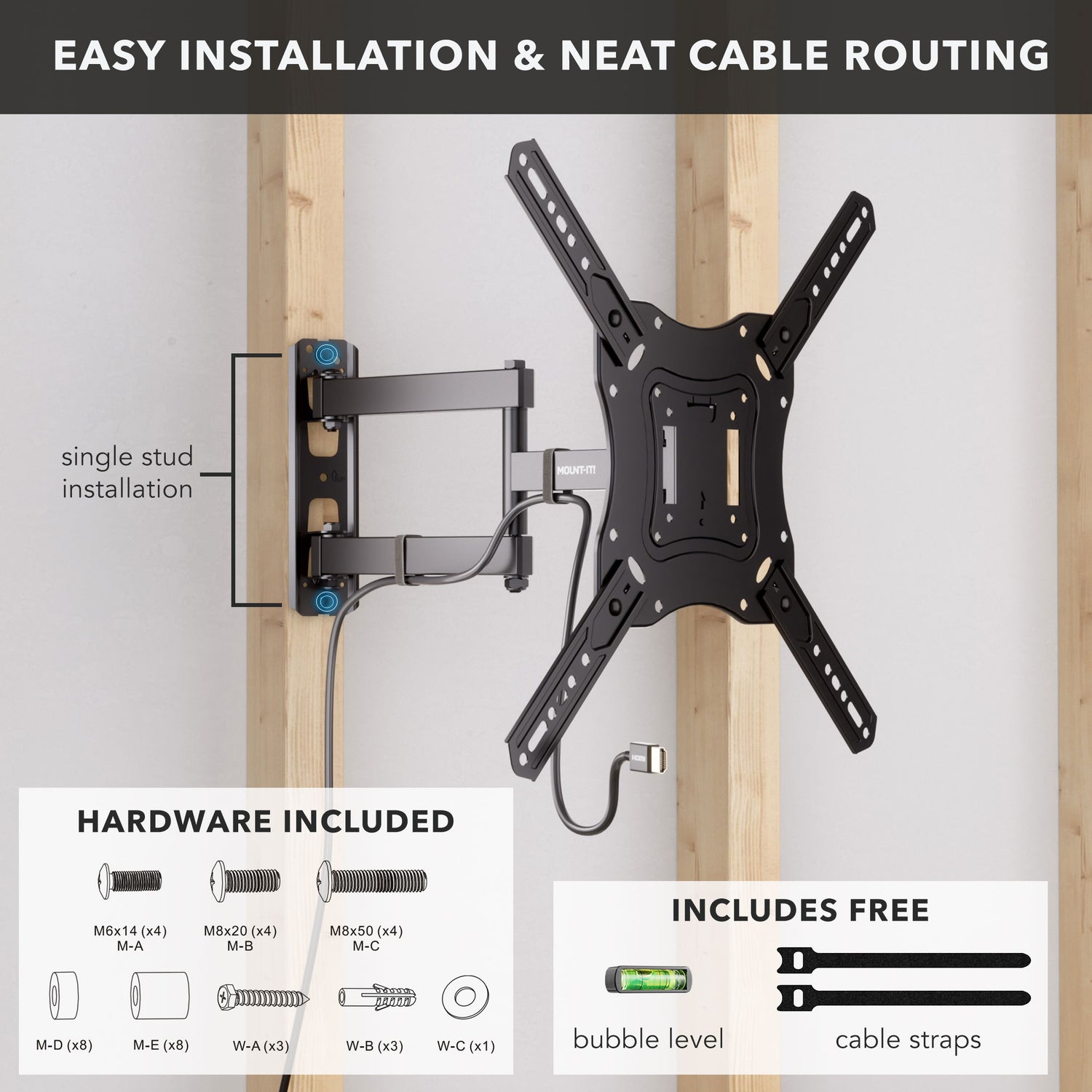

Stud installation type: Single stud
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
Customer reviews
8 verified reviews from people who bought this product.

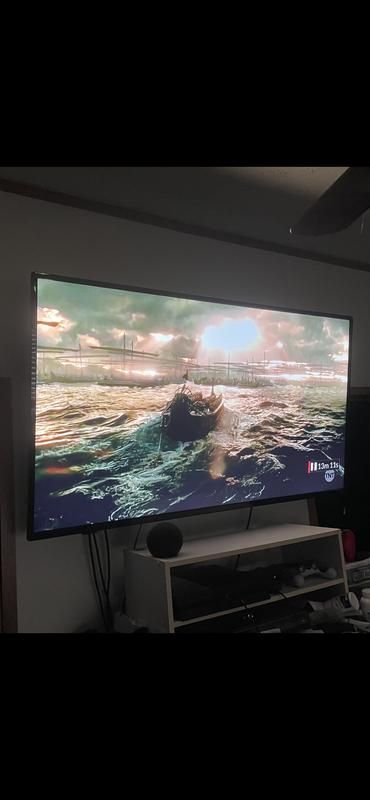

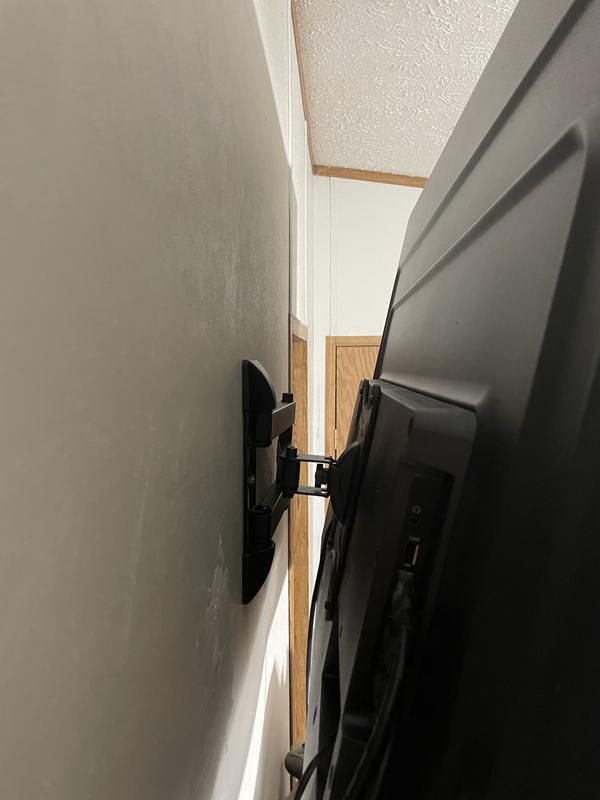

Photos from customers 1
-
Perfect
Worked perfectly in my daughter's room. The mount came with all the hardware necessary to hang on the wall and mount the TV.
-
Definitely recommend this TV Wall Mount
Definitely recommend this Articulating TV Wall Mount and would buy again if needed for other TVs in my home. Light weight & strong. Simple & clear instructions. Easy to assemble & install. Researched online & this was the best price for this product.
-
Good mount very pleased
This unit was an upgrade from a previous mount to hold a larger TV. Very sturdy easy to install. I would recommend this mount.
-
Articulating TV Wall Mount w/Full Motion Arm
Have not used yet yet but bought one before and it great sturdy and easy to mount
-
Bought for new 55 inch TV
I bought this over Christmas & mounted a 55 inch tv on it. It easy to install. I am satisfied with it. The only thing is it says It will hold 66 pounds. My TV is 29 pounds and the arm that is connected to the TV seems to tilt a little bit. That is my only concern.
-
-
Works as advertised and easy installation
The product is as advertised - very easy to install and strong hold to the wall. Easy to attach to my 34 inch tv and swivels very freely. Installation took me about 30 mins without cleanup.
-
Hiccups Aside - Love Final Product
I did quite a bit of research before I decided to go with this wall mount. I just got it in the mail. As the instructions could use some work I made sure to watch a couple of installation videos on Youtube to make sure the installation went more smoothly as I am installing myself. I Spent quite a bit of time stressing over whether or not I had the correct drill bit Sizs(3/8) because that information was very tiny and I missed it while reading the installation manual. End result: Installation went pretty much smoothly except for the fact that the screws that were include with the mount for the tv were either to long or too short. During my research on this product I had read a review that stated this issue so I was lucky enough to be prepared for that mishap and had purchased the Mount-It! TV Mounting Hardware Kit. Product Improvement Tips: Installation Manual - could be more readable and add simple written instructions. Ex. Drill bit size needs to be larger. TV Mount Screws - M8x35mm needs to included in the box. Installation - Upload videos of Concert Wall Installation. All the videos were on wood walls. All in all a couple minor hiccups aside I absolutely love the end result. So much so that I even just placed an order for the soundbar mount. I would definitely recommend this line of products to my family and friends!
-
Good product with a serious flaw.
The tilt mechanism is a simple slot with dimples and is not easily adjusted especially with the TV already attached. The locking knob is covered by the the U shaped support and is hard to get to. I had to use a screwdriver to pry the knob to rotate it. Even after tightening the TV still has movement.
1 found this helpful
