Mount-It! Full Motion Corner TV Wall Mount for 32" to 48" TVs | MI-4481
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
An articulating full motion TV wall mount for 27 to 48-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 66 lb with VESA 100×100 to 400×400 mm.
Swivels 90.0°, tilts +2.0°/−15.0°, and extends 4.33–16.14 inches. Aim the screen at any seat and reach the right depth.

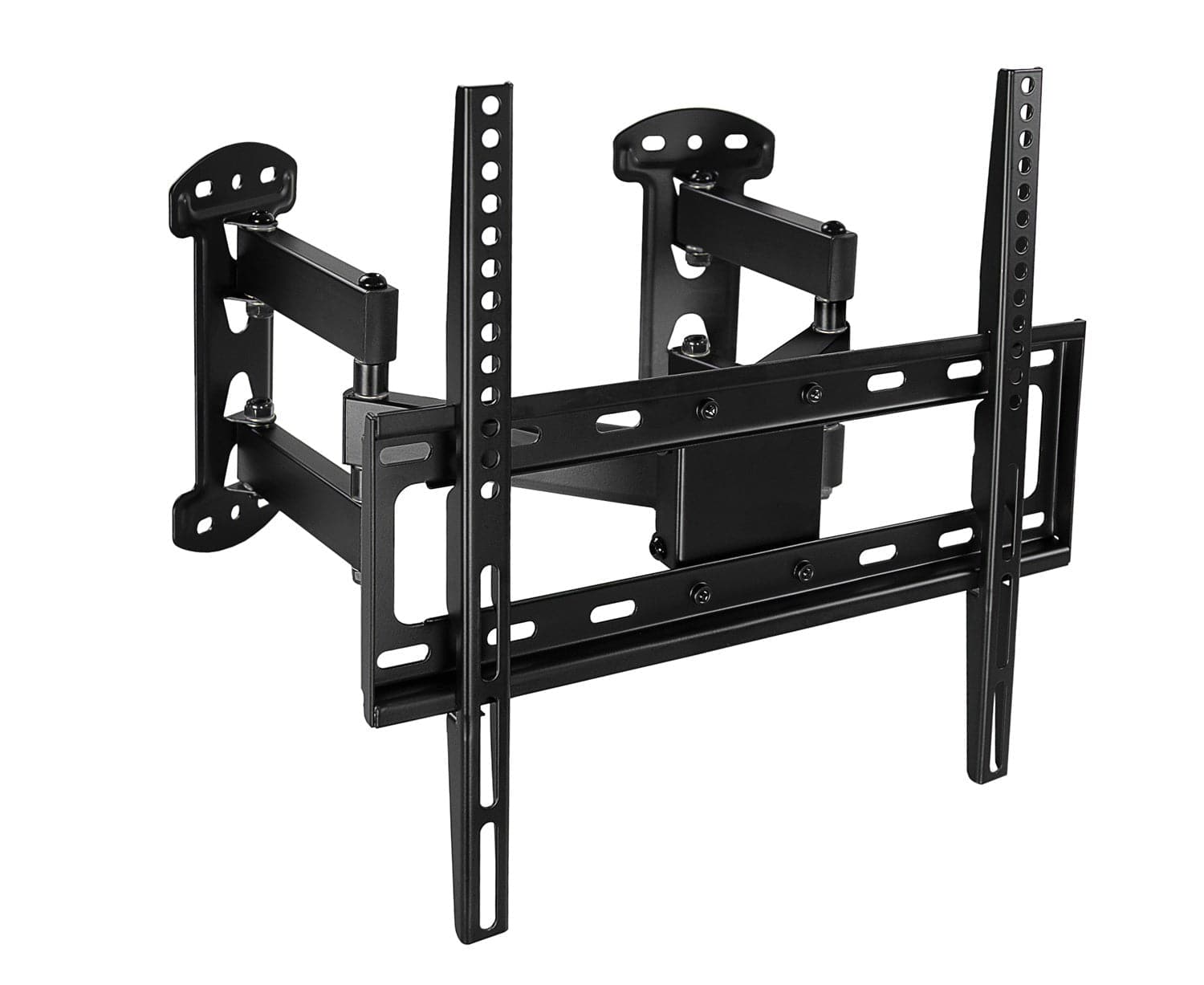

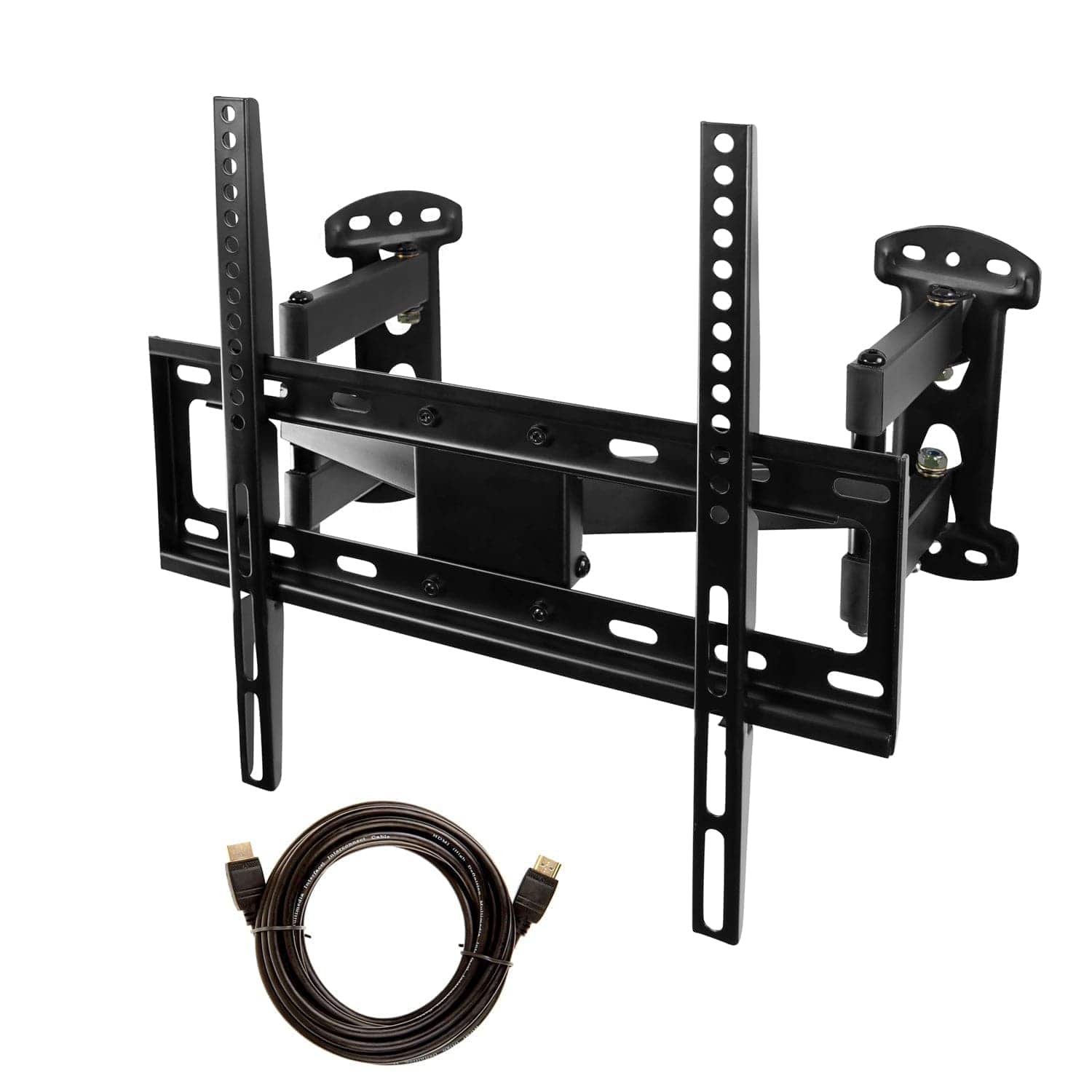

Full Motion Corner TV Wall Mount

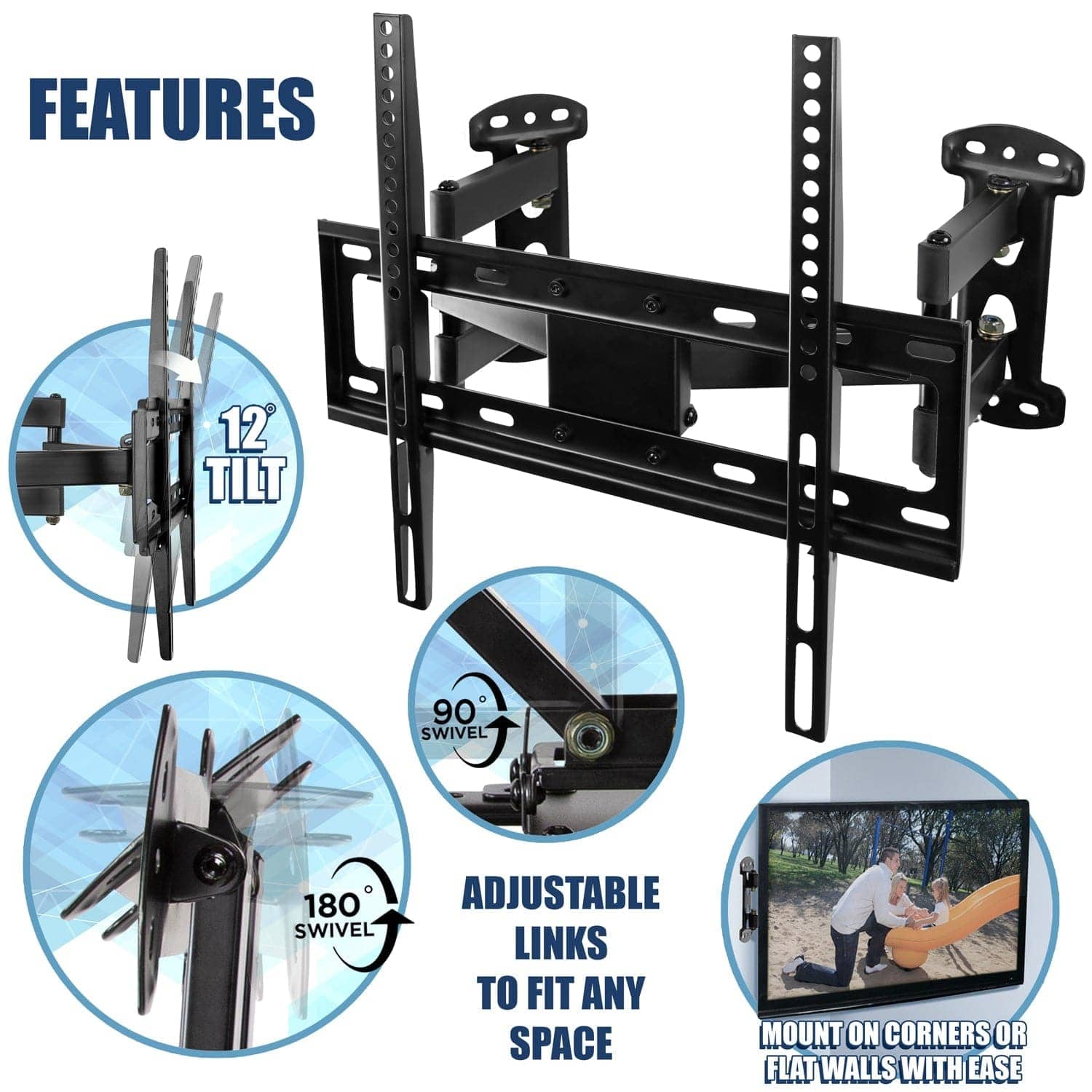

Features
Fits 27 to 48 inch flat screen TVs
Weight rated up to 66 lb

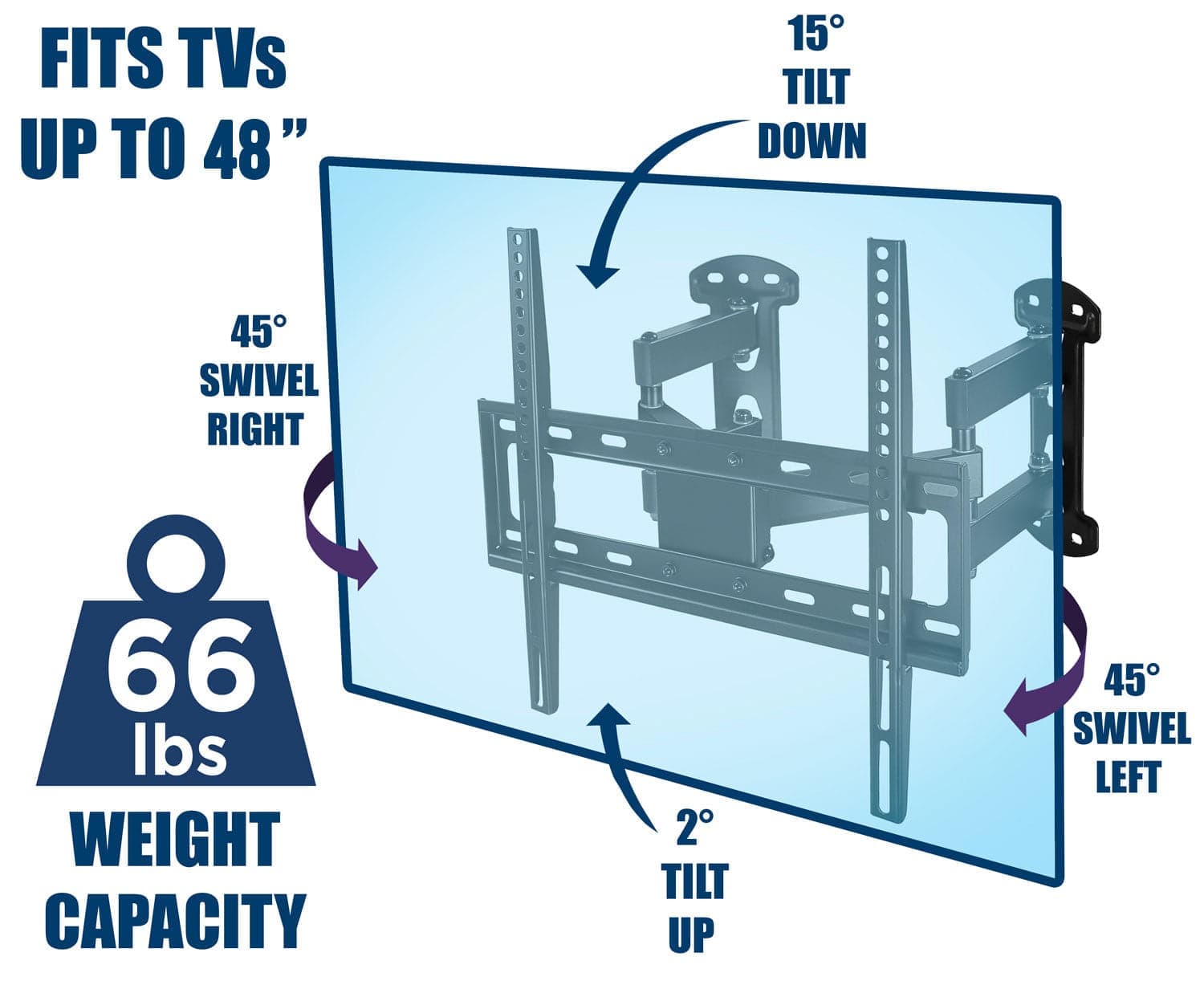

Swivels 45.0° left and right — aim the screen at any seat
Adjustable tilt +2.0° up / −15.0° down - reduce glare, improve your view
Extends 4.33–16.14 in from the wall for flexible positioning

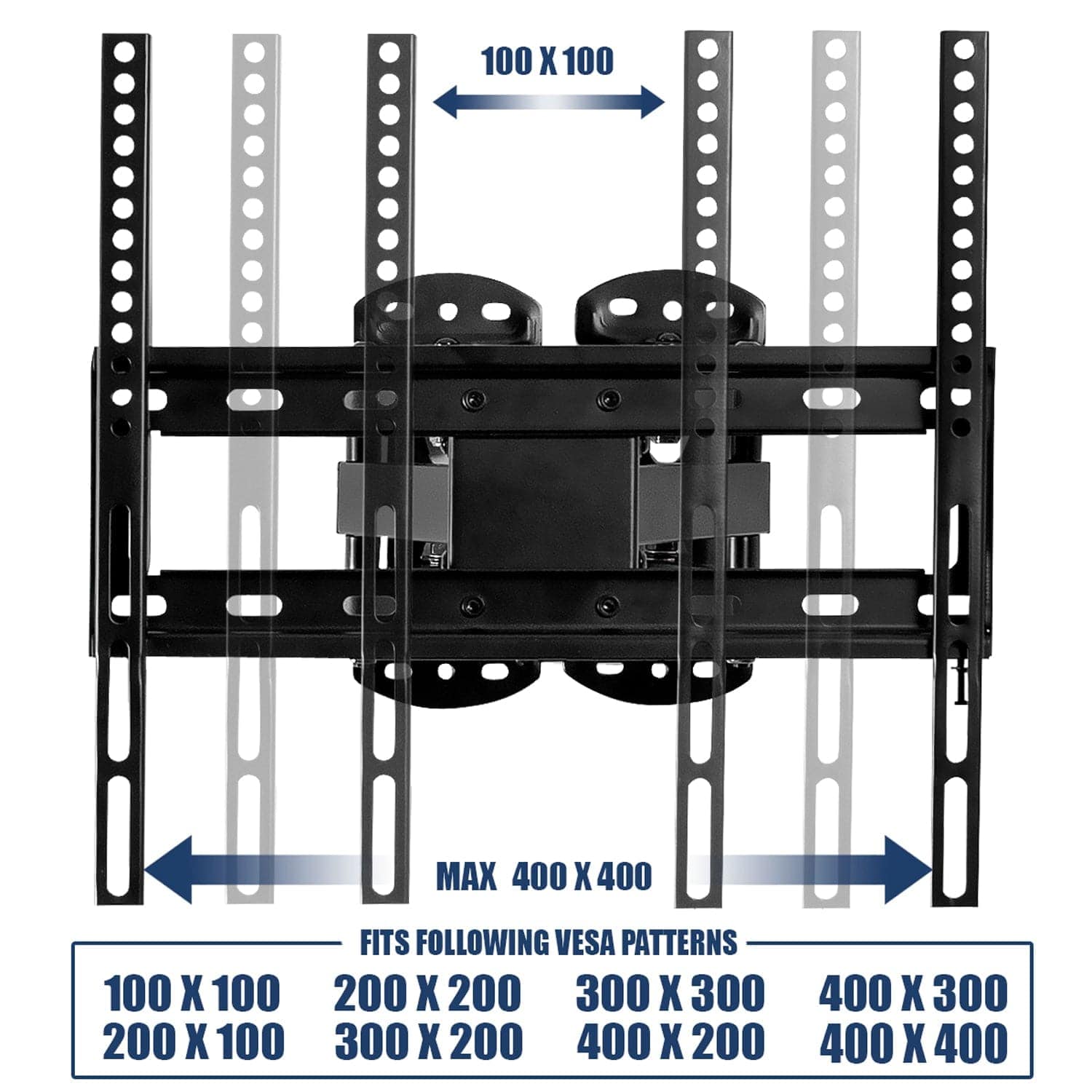

VESA 100×100 to 400×400 mm - fits most flat panel TV brands

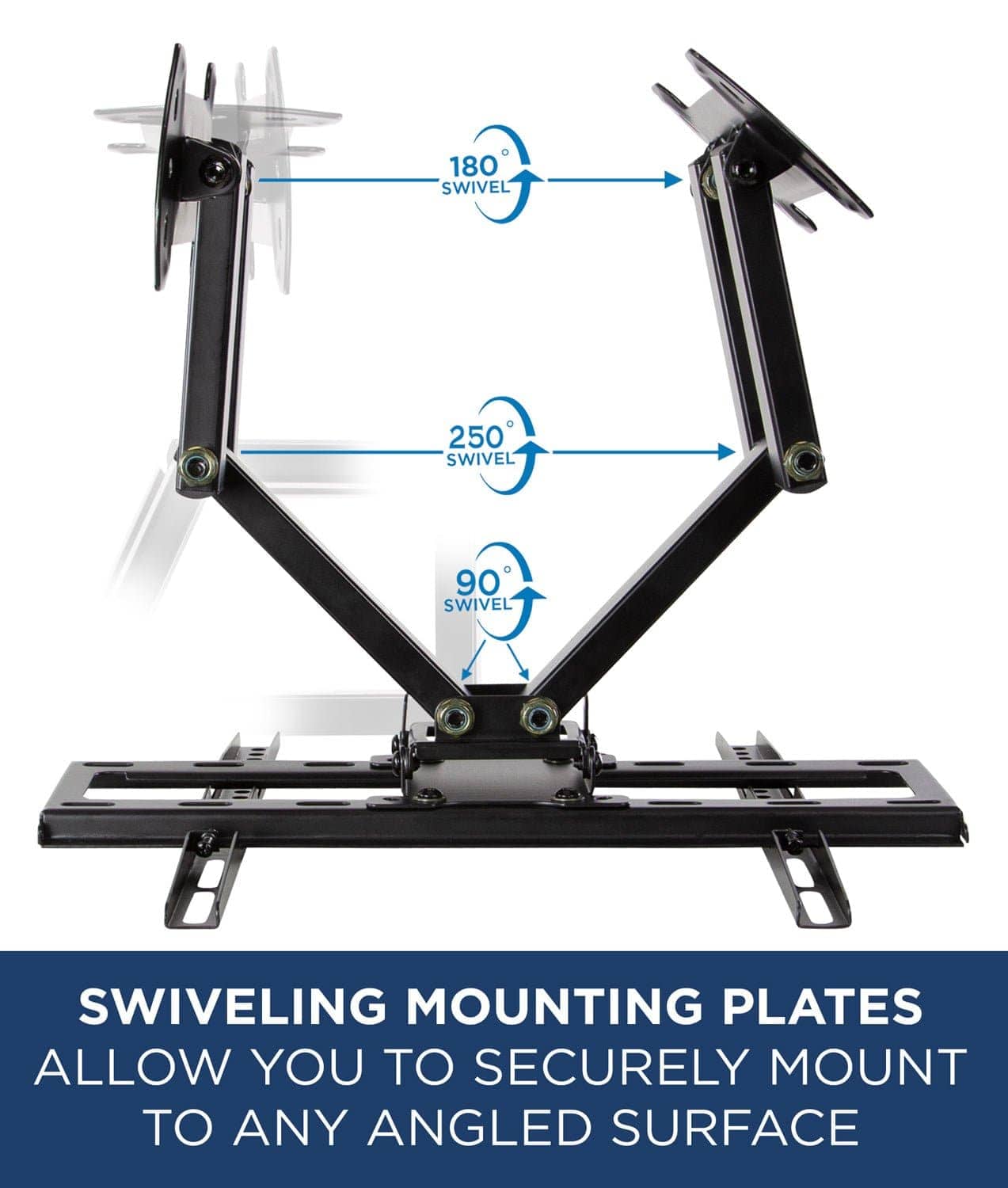

Supports corner wall installations
Overview

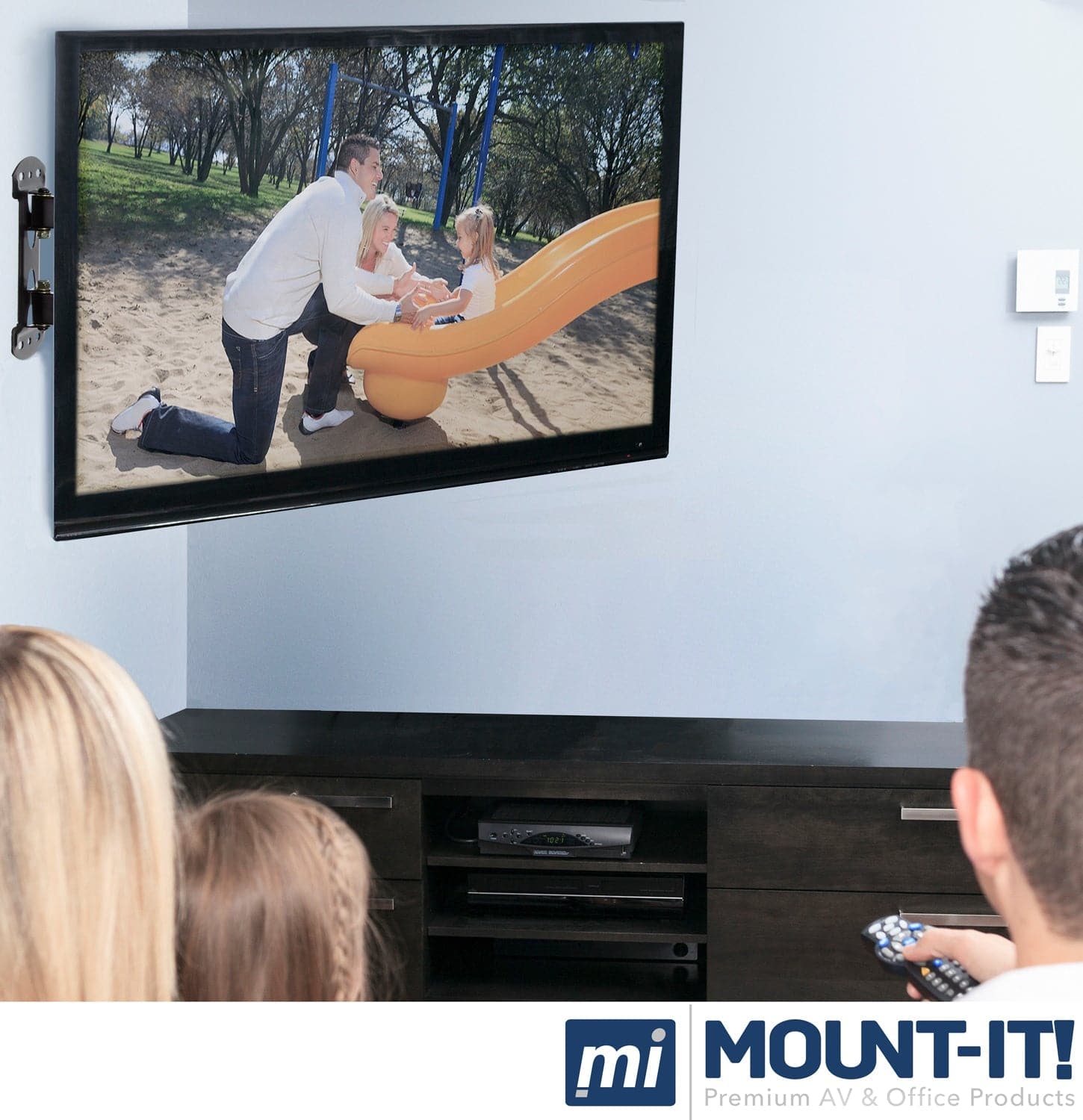

The Full Motion Corner TV Wall Mount is a full motion (articulating) TV wall mount compatible with 27 to 48-inch televisions and rated to hold up to 66 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 45° left and right, tilt +2°/−15°, and extends 4.33 to 16.14 in from the wall. The long extension arm pulls the screen far enough from the wall to swing past furniture, fireplace surrounds, or room corners without obstruction.
Compatible with VESA mounting patterns from 100×100 to 400×400 mm. Also supports corner wall installations for rooms where flat wall space is limited.
A practical choice for bedrooms, offices, or corner installs where the screen needs to follow the viewer across multiple positions.
Specifications
- Product type: TV mount
- Mount type:Full motion (articulating)
- Product weight: 10.0 lb

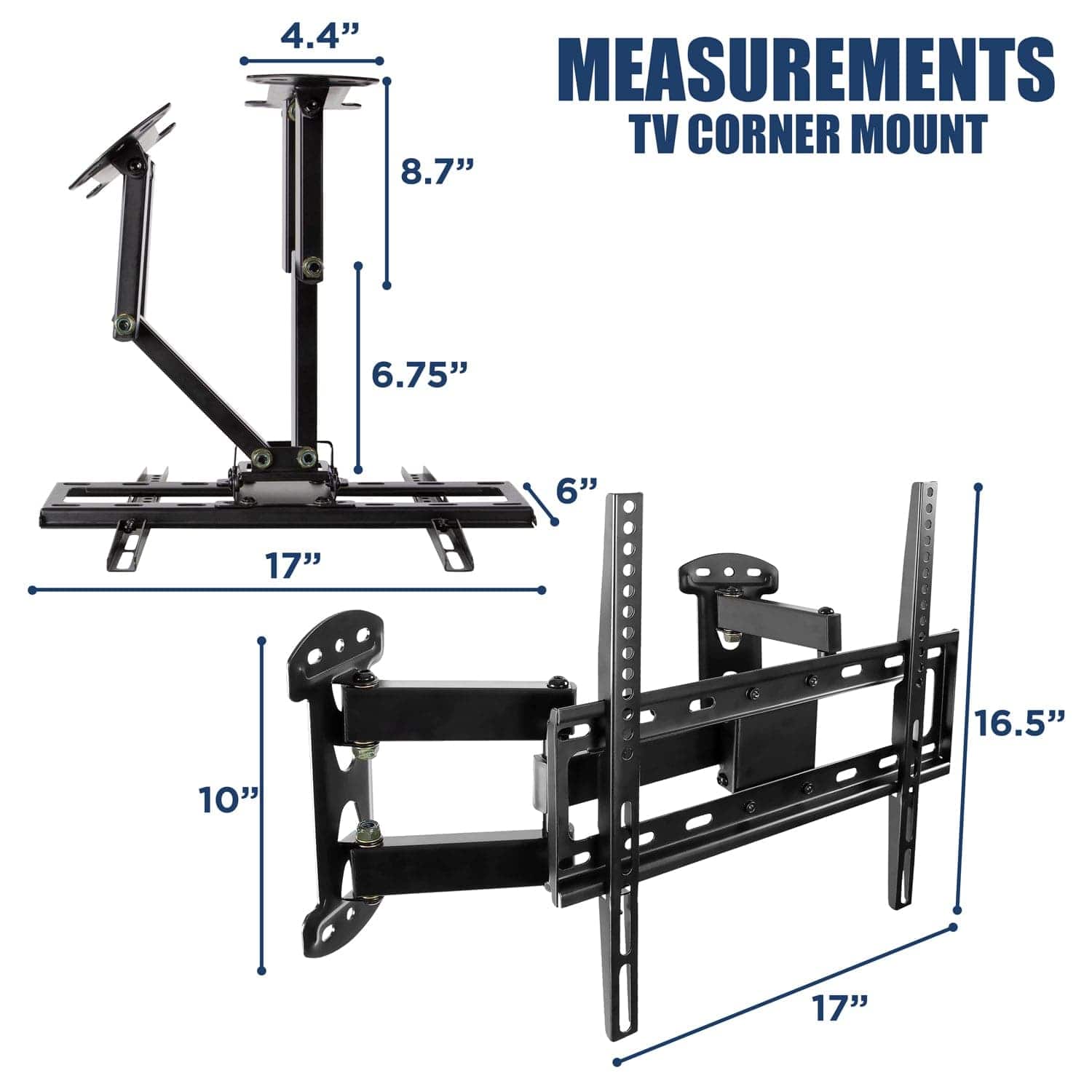

- Wall plate dimensions: 4.4×10.0 in
Holds screens
- Screen size range: 27 to 48 in
- VESA range: 100×100 to 400×400 mm
- Weight capacity: 66 lb
Movement
- Swivel: up to 90°
- Tilt:+2°and−15°
- Extension depth: 4.33 to 16.14 in
- Corner compatible: Yes
Installation
The Full Motion Corner TV Wall Mount is designed for quick and frustration free installation.
Installation is typically completed in about 45 minutes.
Estimated install time: 45 minutes
Stud installation type: Dual stud
Stud spacing supported: 16, 24 inch stud spacing

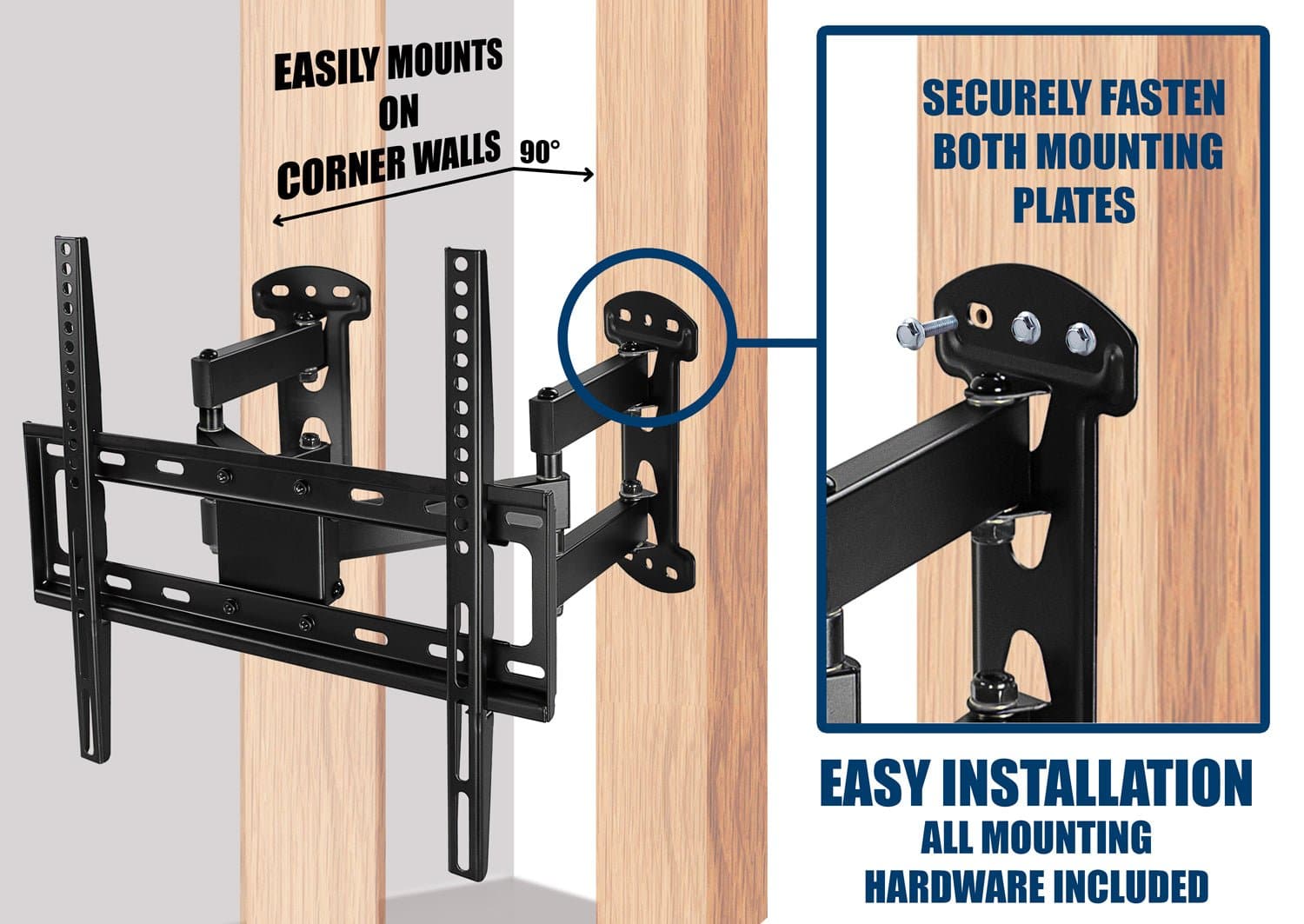

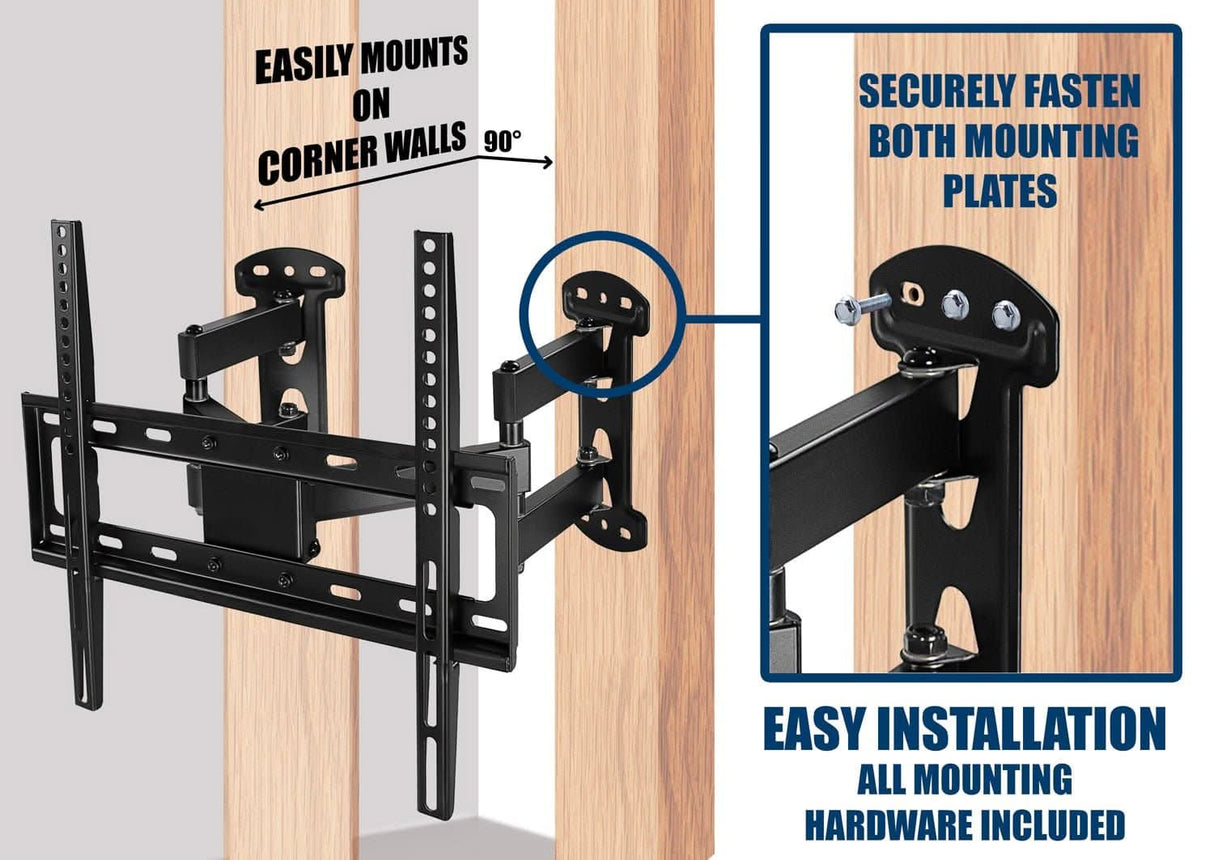

Corner installations: Supported
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonary bits for concrete and brick)
- Power drill
- Stud finder
