Full Motion TV Wall Mount w/ Extension for 19" to 42" TVs
Full Motion TV Mount
Articulating · Swivel, Tilt & Extend
15% OFF with code DAD26
?
Code not valid for B2B accounts and cannot be used with B2B pricing or POs or combined with other codes and is not valid on sale items. Quantities are limited and subject to change.An articulating full motion TV wall mount for 19 to 42-inch flat screen TVs, swivel, tilt, and extend the screen to exactly where you need it, rated up to 66 lb with VESA 75×75 to 200×200 mm.
Swivels 30.0°, tilts +15.0°/−15.0°, and extends 3.25 to 6.0 inches. Aim the screen at any seat and reach the right depth.
Full Motion TV Wall Mount w/ Extension
Features
Fits 19 to 42 inch flat screen TVs
Weight rated up to 66 lb
Swivels 30.0° (15.0° left and 15.0° right), aim the screen at any seat

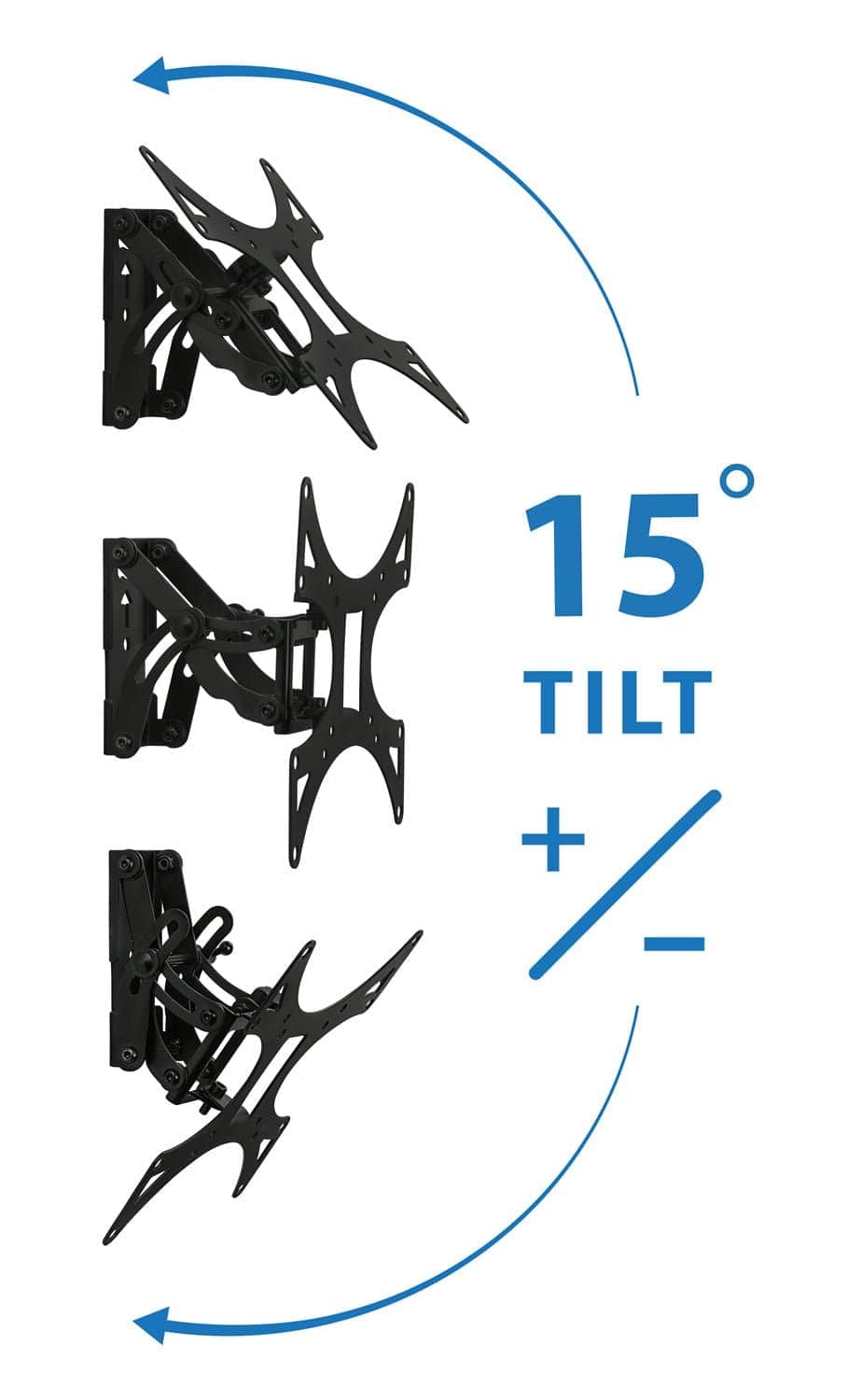

Adjustable tilt +15.0° up / −15.0° down - reduce glare, improve your view

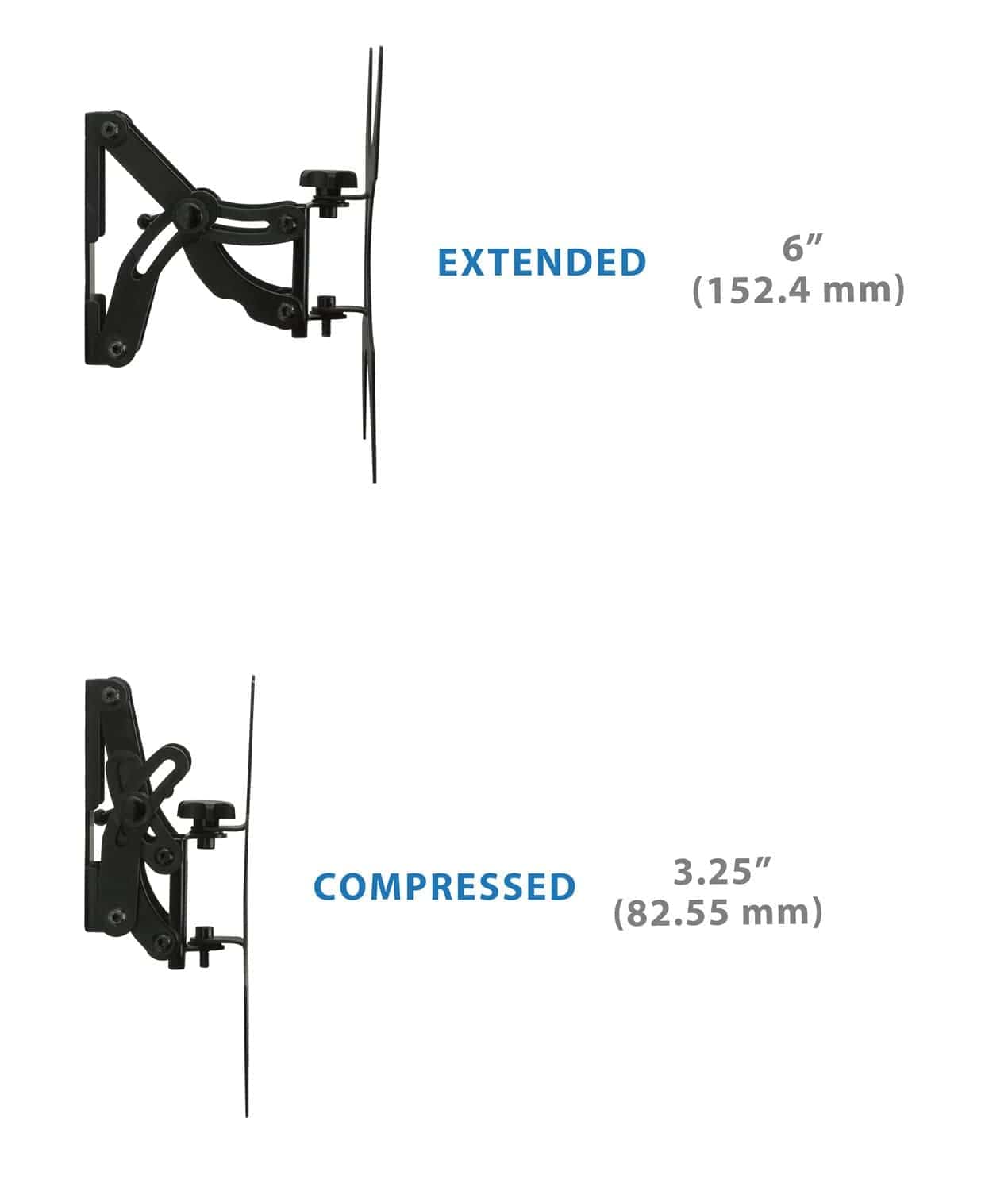

Extends 3.25 to 6.0 in from the wall for flexible positioning

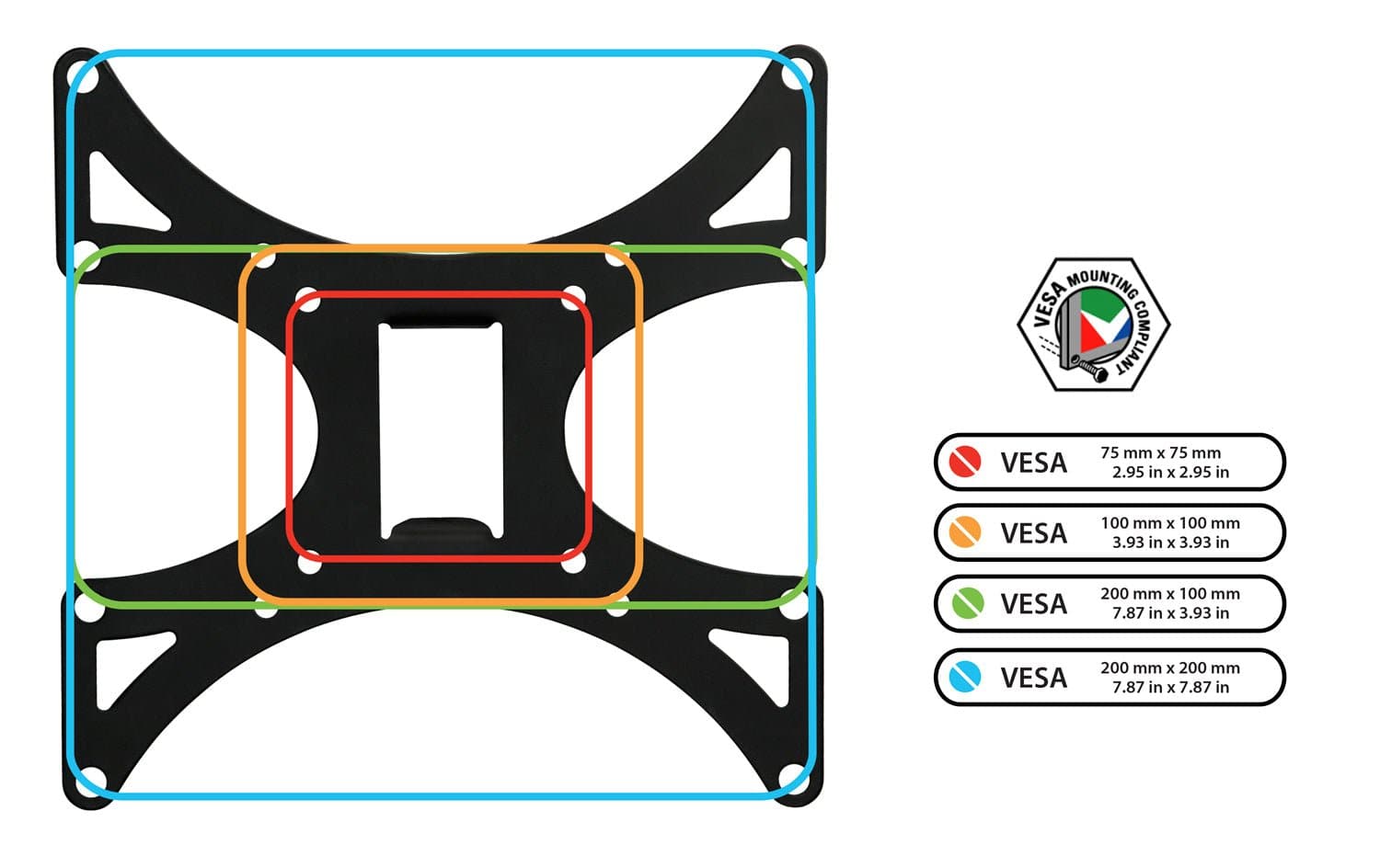

VESA 75×75 to 200×200 mm - fits most flat panel TV brands
Overview
The Full Motion TV Wall Mount w/ Extension is a full motion (articulating) TV wall mount compatible with 19 to 42-inch televisions and rated to hold up to 66 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.
Swivels 30° (15° left and 15° right), tilt +15°/−15°, and extends 3.25 to 6.0 in from the wall. The long extension arm pulls the screen away from the wall far enough to clear furniture, fireplace surrounds, or room corners.
Compatible with VESA mounting patterns from 75×75 to 200×200 mm.
A practical choice for bedrooms and smaller spaces where seating spans multiple directions and a fixed screen position won't cover everyone.

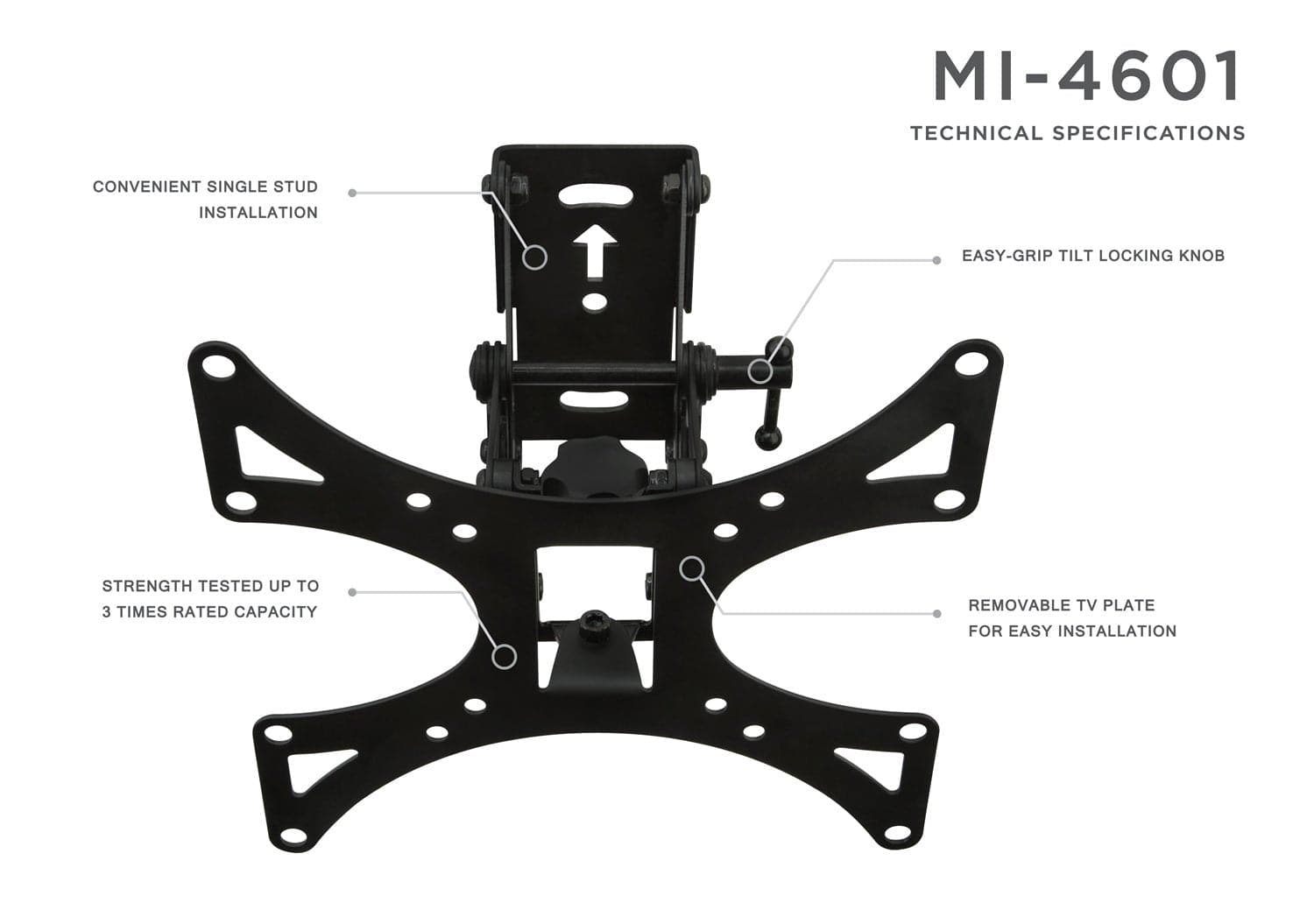

Specifications
- SKU: MI-4601
- Product type: Wall TV Mount
- Mount type: Full motion (articulating)
- Product weight: 22.02 lb

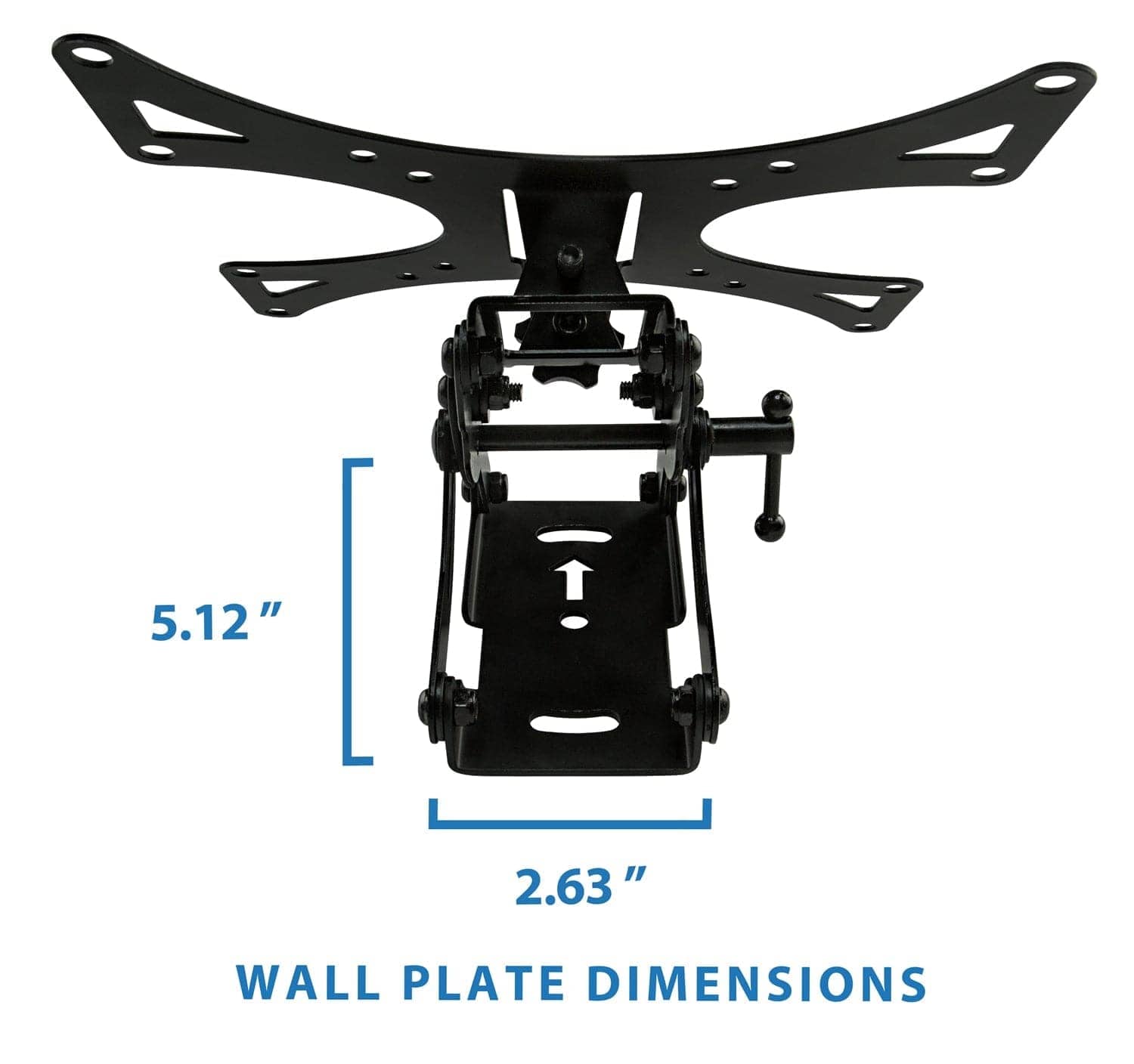

- Wall plate dimensions: 2.63×5.12 in
Holds screens
- Screen size range: 19 to 42 in
- VESA range: 75×75 to 200×200 mm
- Weight capacity: 66 lb
Movement
- Swivel: 30° (15° left and 15° right)
- Tilt:+15°and−15°
- Extension depth: 3.25 to 6.0 in
Installation
The Full Motion TV Wall Mount w/ Extension is designed for quick and frustration free installation.
Easy installation is typically done in about 30 minutes.
Estimated install time: 30 minutes
Stud installation type: Single stud
Safely install on these types of surfaces:
- Tile over studs (tile on backer board over studs)
- Tile over masonry (tile on concrete or block)
- Plywood backing wall
- Solid wood wall (planks, beams, timber)
- Brick veneer
- Brick (solid brick)
- Concrete block (CMU/cinder block)
- Concrete (poured concrete)
- Metal studs (drywall over metal studs)
- Wood studs (drywall over studs)
Tools you'll typically need:
- Screwdrivers or socket wrench
- Measuring tape
- Level
- Drill bits (wood bits for studs or masonry bits for concrete and brick)
- Power drill
- Stud finder
