Pop-Out Video Wall Mount for 37" to 70" TVs

Full Motion TV Mount

Articulating · Extend

$94⁹⁹

An articulating full motion TV wall mount for 37 to 70-inch flat screen TVs, extend the screen to exactly where you need it, rated up to 154 lb with VESA 200×200 to 600×400 mm.

Will it fit your TV? Save your TV and we’ll confirm fit.

Free Shipping to Contiguous US | Lifetime Warranty | 60-day Risk Free Returns

Features

Fits 37 to 70 inch flat screen TVs

Weight rated up to 154 lb

Extends 3.1 to 8.7 in from the wall for flexible positioning

VESA 200×200 to 600×400 mm - fits most flat panel TV brands

Overview

The Pop-Out Video Wall Mount is a full motion (articulating) TV wall mount compatible with 37 to 70-inch televisions and rated to hold up to 154 lb. Designed for rooms where seating spans multiple angles and the screen needs to track the viewer, like living rooms, open-plan spaces, and bedrooms with off-center mounting positions.

Adjustable depth from 3.1 to 8.7 in from the wall.

Compatible with VESA mounting patterns from 200×200 to 600×400 mm.

A practical choice for large living rooms or any setup where the optimal viewing position isn't directly in front of the wall.

Ideally used for

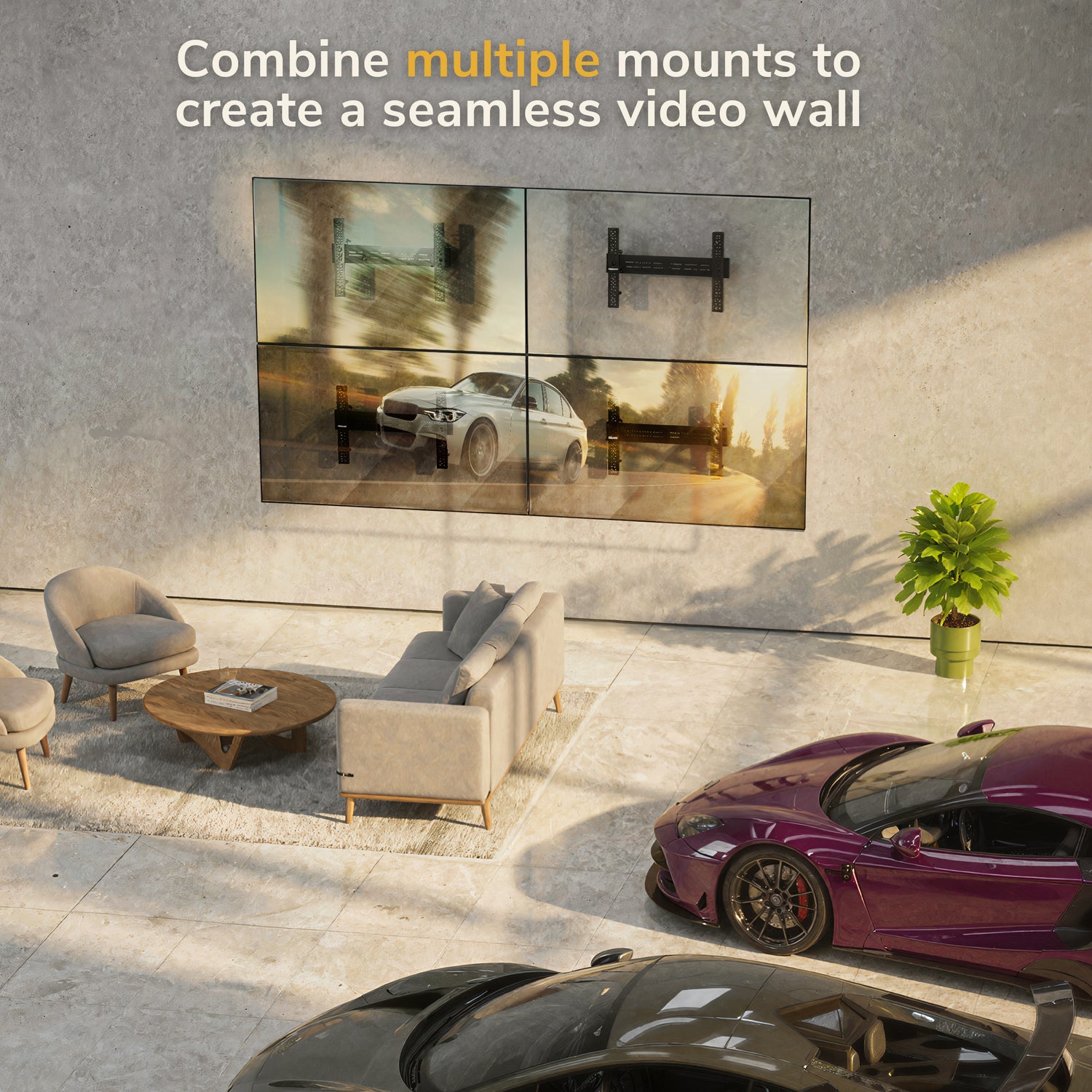

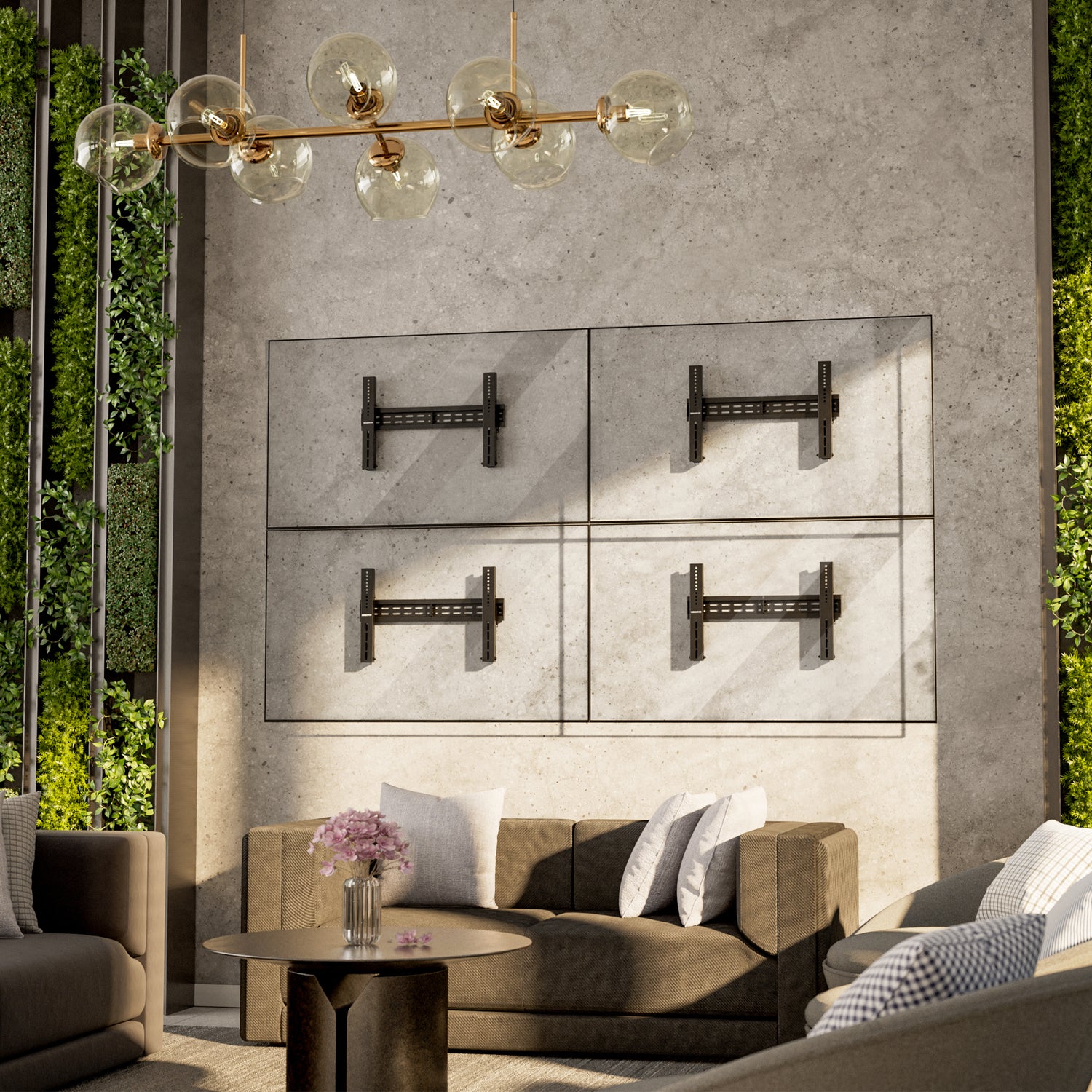

Commercial and corporate video wall installations
Retail displays, digital signage arrays, and control rooms
Conference rooms, lobbies, and public venues requiring secure mounting
Any multi-screen setup where individual screen access and alignment are critical
Environments where displays need periodic servicing without full disassembly

Specifications

SKU: MI-420
Product type: Wall TV Mount
Mount type: Full motion (articulating)
Product weight: 13.1 lb

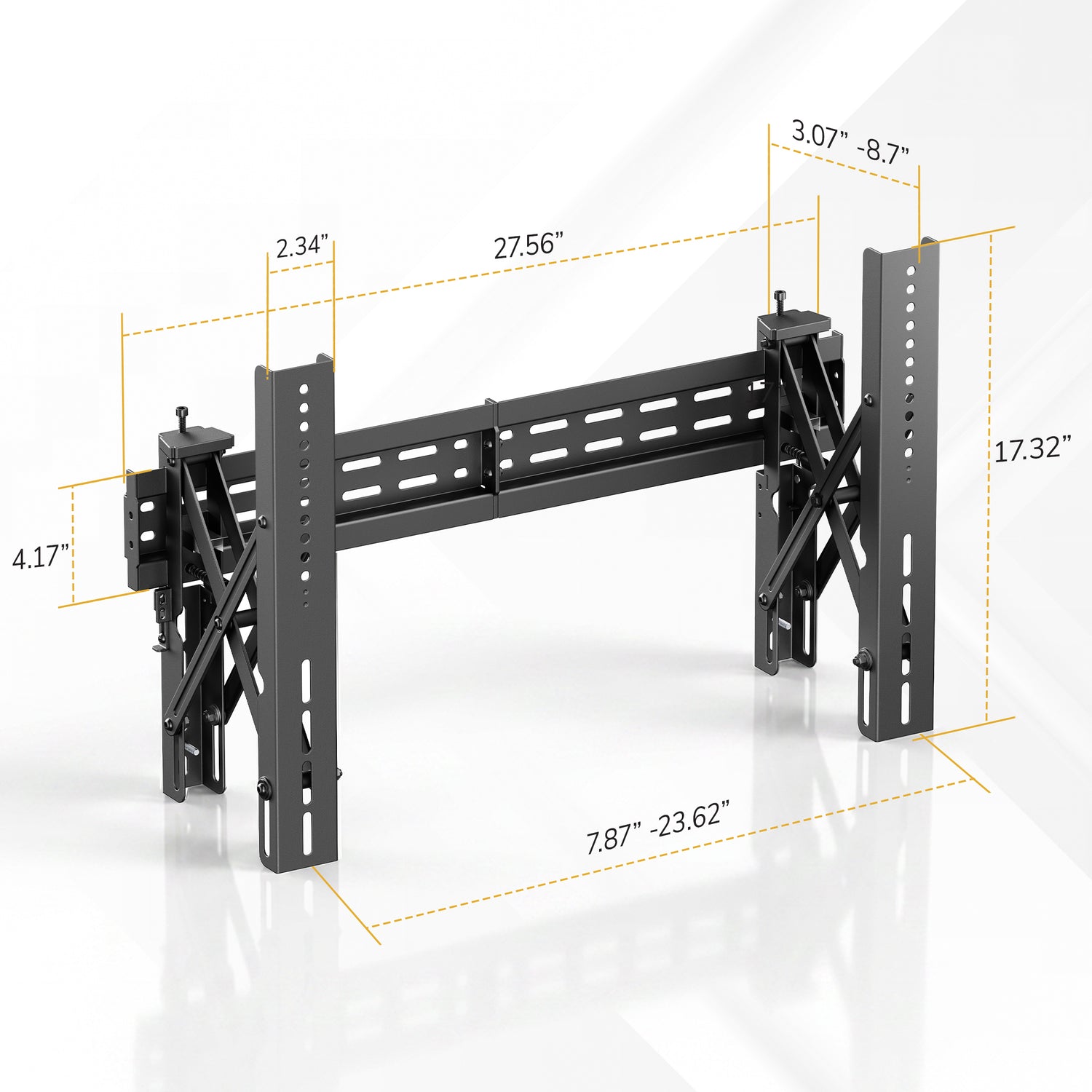

Wall plate dimensions: 27.6×4.2 in

Holds screens

Screen size range: 37 to 70 in
VESA range: 200×200 to 600×400 mm
Weight capacity: 154 lb

Movement

Extension depth: 3.1 to 8.7 in

Installation

The Pop-Out Video Wall Mount is designed for quick and frustration free installation.

Easy installation is typically done in about 30 minutes.

Estimated install time: 30 minutes

Safely install on these types of surfaces:

Brick veneer
Brick (solid brick)
Concrete block (CMU/cinder block)
Concrete (poured concrete)

Tools you'll typically need:

Screwdrivers or socket wrench
Measuring tape
Level
Drill bits (wood bits for studs or masonry bits for concrete and brick)
Power drill

Manuals & Downloads

Product Manual PDF · Installation guide

Reviews

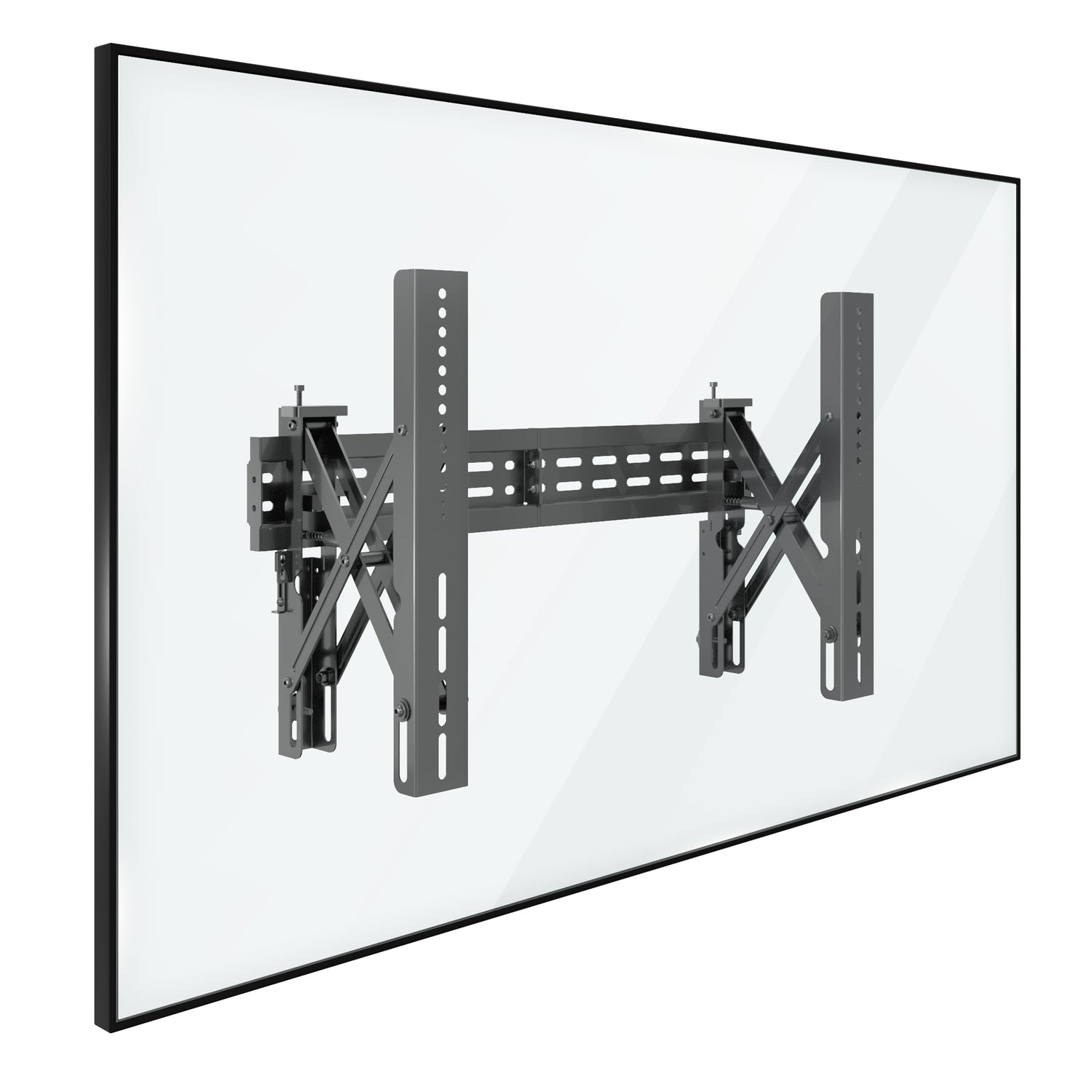

A flat-screen TV is mounted on the Mount-It! Pop-Out Video Wall Mount, shown from an angle that highlights the sturdy metal support structure behind the screen.

Pop-Out Video Wall Mount

$94⁹⁹

Overview

This pop-out video wall mount is engineered for multi-display installations where precision alignment and service access are essential. Its scissor-style mechanism allows each screen to extend independently from the wall, simplifying installation, display calibration, and ongoing maintenance—especially in tiled video wall setups where access to individual panels is required. With a low-profile depth of 3.1 inches, the mount keeps displays positioned close to the wall for a clean, integrated look. When adjustments or servicing are needed, it extends up to 8.7 inches, providing space for cable management and hardware access without disrupting adjacent screens. Designed to support displays from 37" to 70", the mount is compatible with VESA patterns ranging from 200x200 to 600x400 and its heavy-duty steel construction supports up to 154 lbs (70 kg), making it suitable for larger screens. The integrated +/-3° leveling adjustment allows for precise post-installation alignment, helping ensure a uniform appearance across multiple displays. A padlock-ready locking mechanism provides additional security and peace of mind for installations in public spaces. This mount is well-suited for retail digital signage, corporate conference rooms, control centers, hospitality environments, museums, and other professional settings where multiple screens are used to create a cohesive visual display.

Description

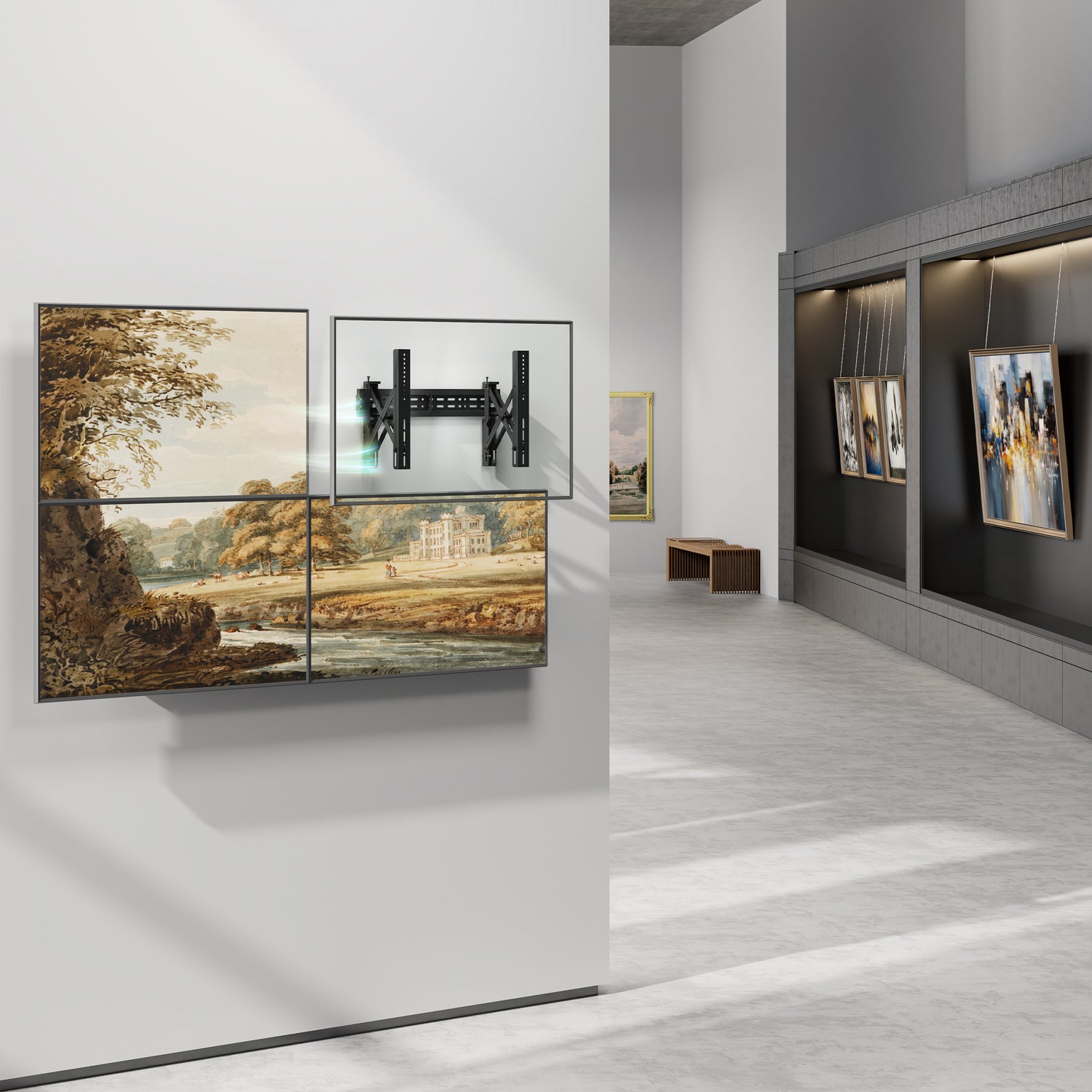

Pop-out design for video walls – Scissor-style extension lets each screen pull forward independently for easier alignment, installation, and service without removing surrounding displays

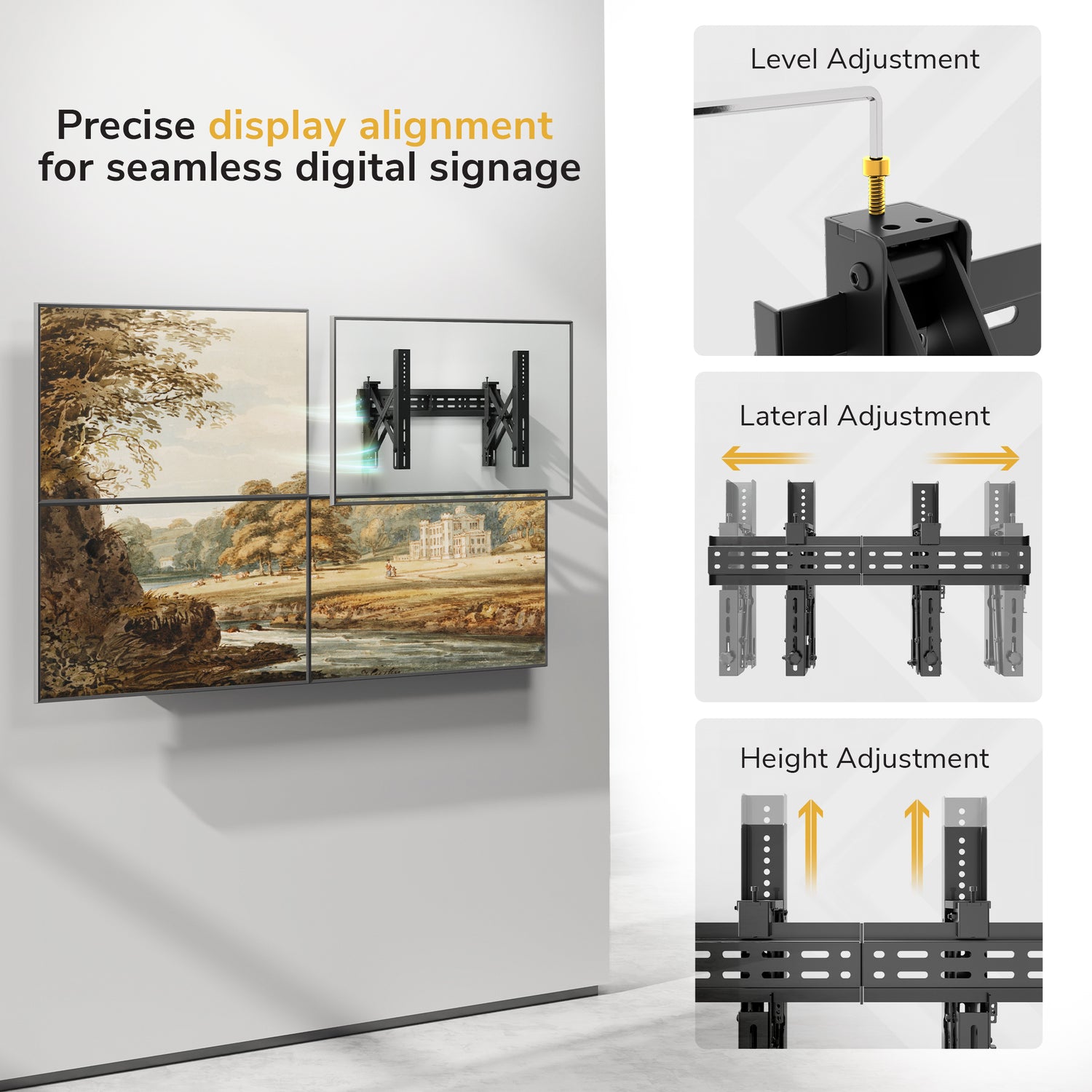

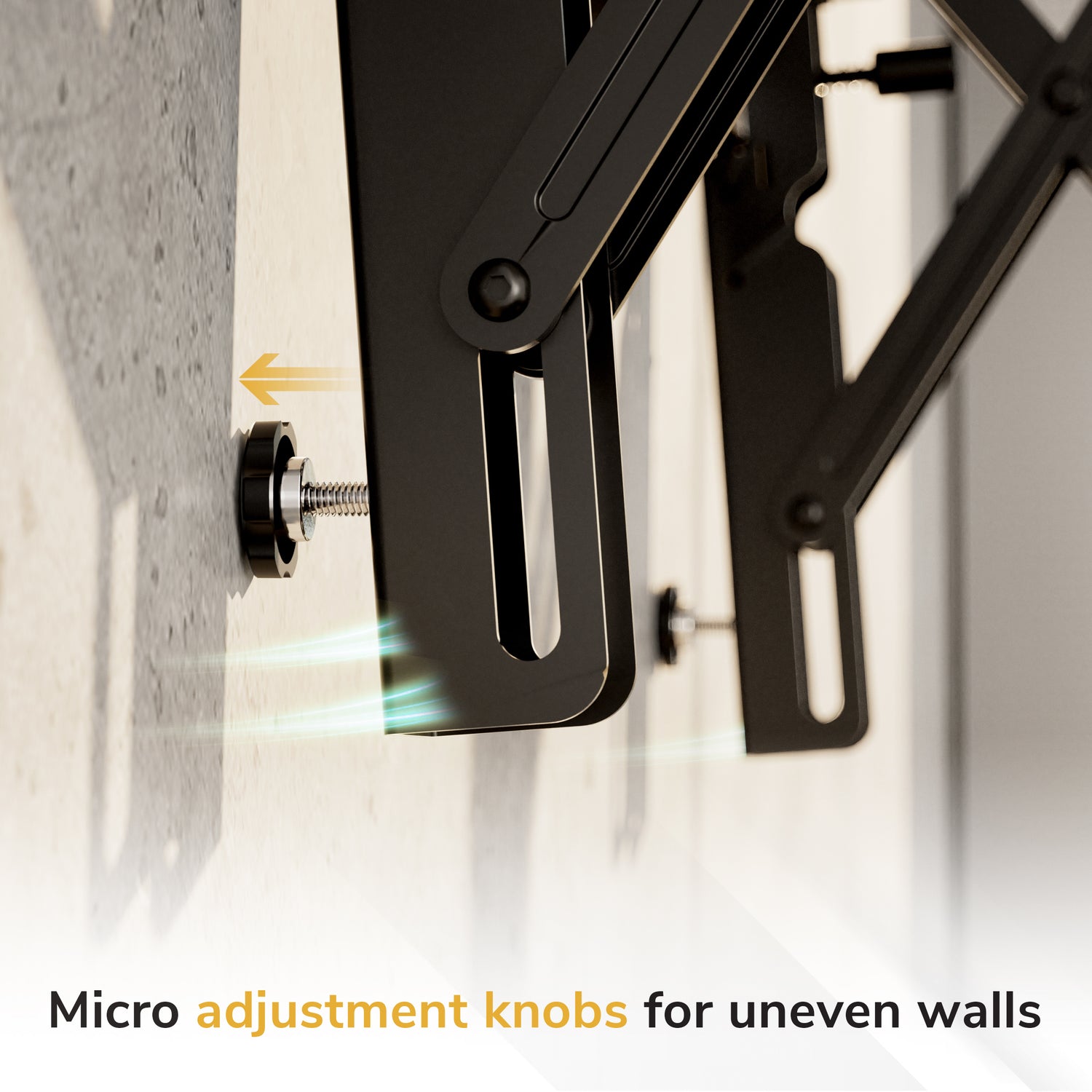

Precise screen alignment – Leveling adjustment of +/-3° helps fine-tune each display for consistent spacing across multi-screen layouts
Wide compatibility with heavy-duty support – Fits small to medium-sized screens up to 154 lbs

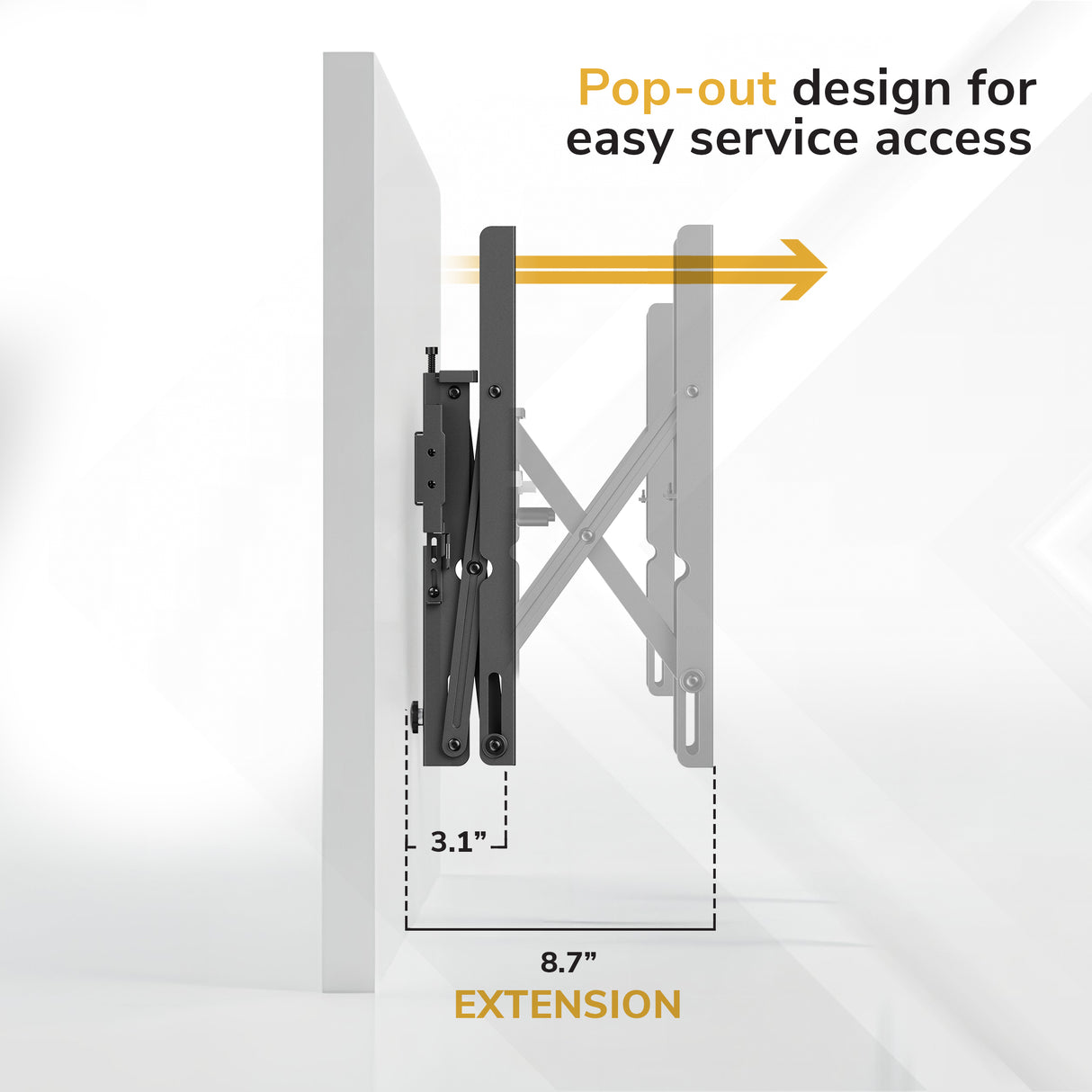

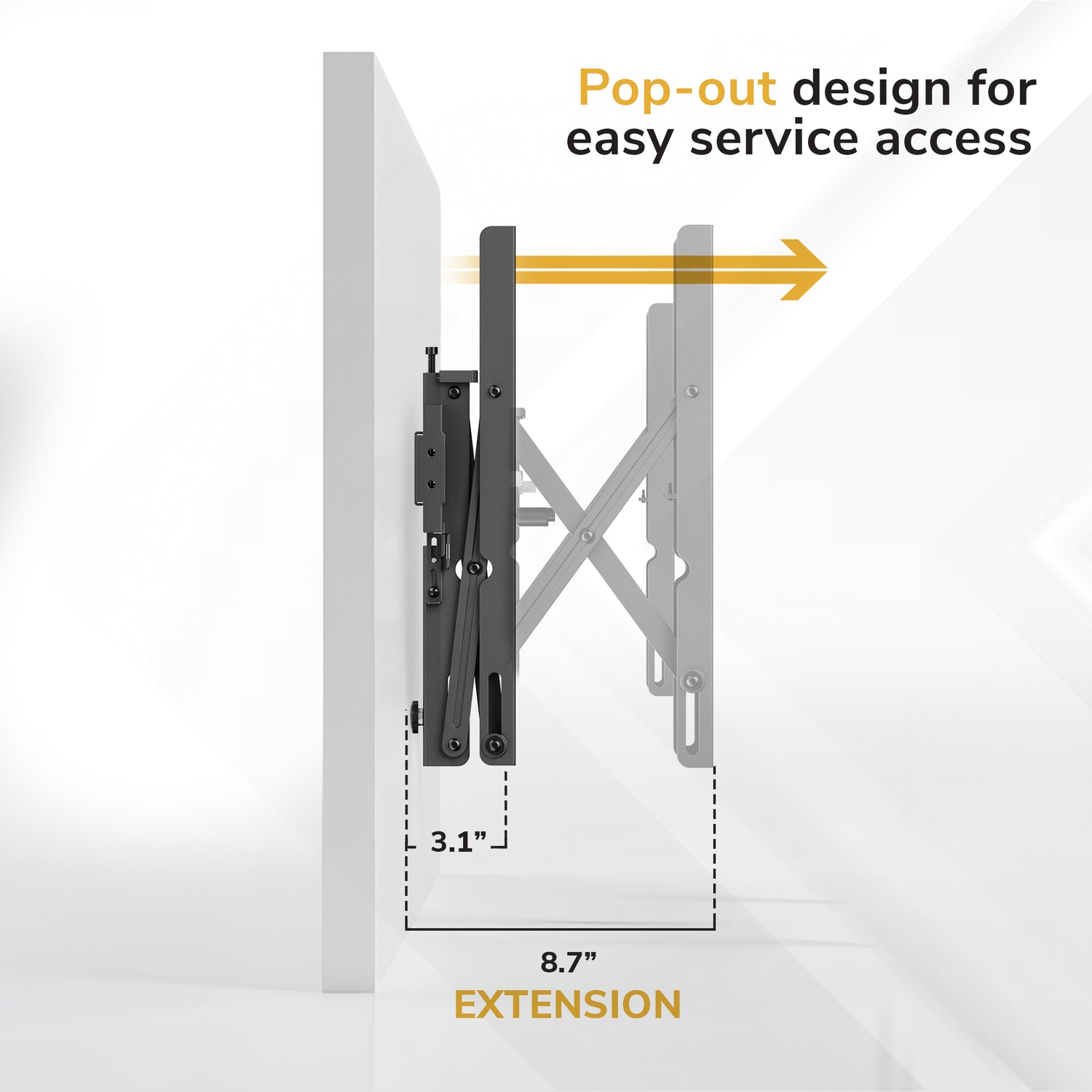

Low-profile with service access – Sits 3.1" from the wall and extends to 8.7" to provide space for cable routing and maintenance

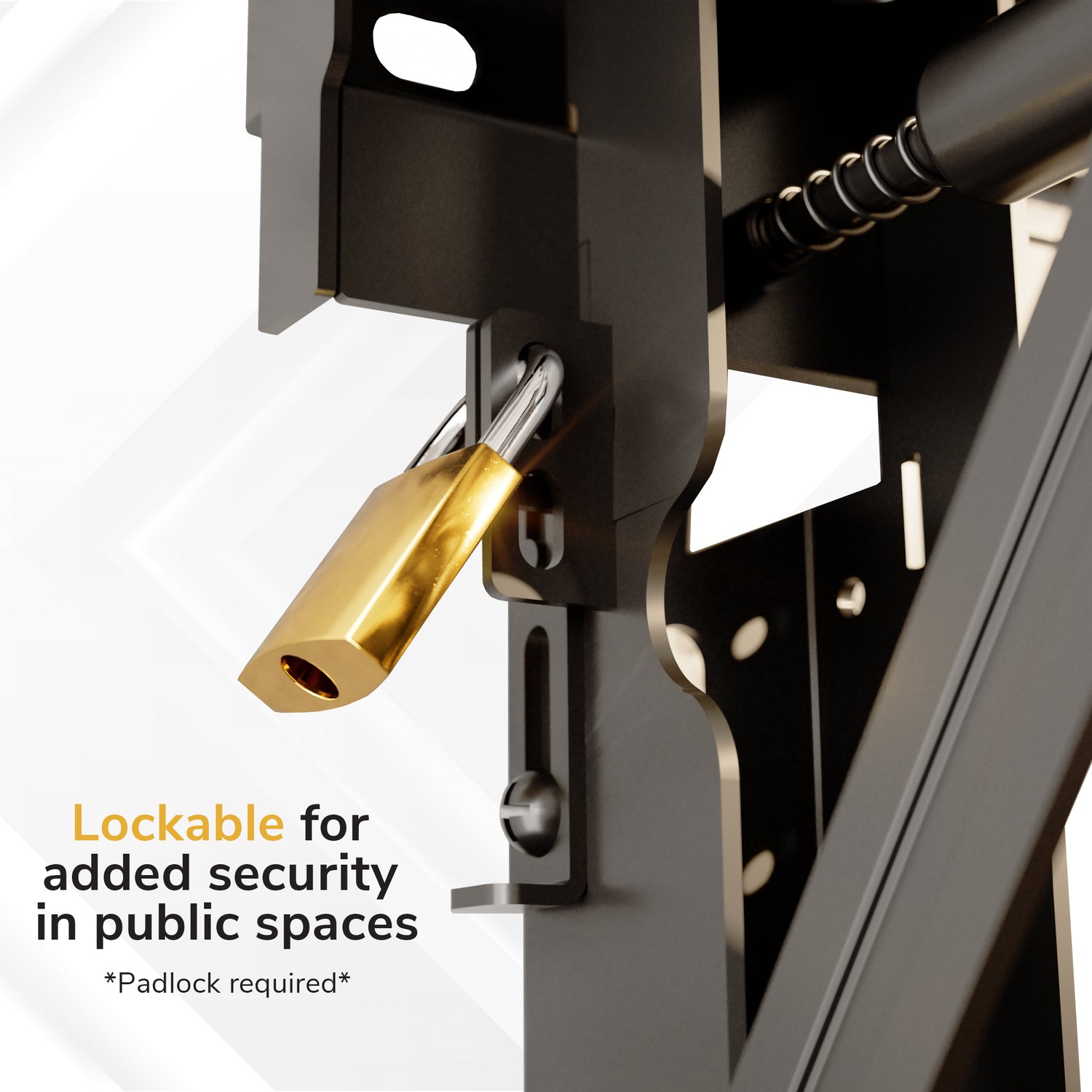

Lockable design for added security – Integrated locking mechanism (padlock required) helps secure displays in public or shared environments

Specifications

TV Sizes: 37" - 70"
Weight Capacity: 154 lbs
Profile: 3.1" - 8.7"
Compatible VESA Patterns: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Screen Level: +/-3°
Lockable (Padlock required)
Includes: Hardware, mounting template
